Kockney Koi Fibreglass Filters are free-standing pond and koi filters. Which are cleverly designed to improve your ponds water quality and fish’s health.
Kockney Koi AquaPonic Fibreglass Filter Unit
Kockney Koi AquaPonic Fibreglass Filter Unit
The Kockney Koi AquaPonic filter system uses the fish waste in the water to feed to plant roots before filtering through and returning back to the pond via a blade waterfall after a through filtration process.
Water is pumped to the filter unit from the pond and feeds up to the top tray where there is 11 planting baskets with hessian sheets provided, water overflows from the tray into the base of the filter unit where it is filtered through 4 sheets of foam, a layer of blue matting before going through a stage of our Kintima Black bio media and the returns via the units blade water feature giving a waterfall effect back into the pond.
The unit is suitable for ponds of up to maximum 8,300 litres and a maximum flow rate of 4,150 litres per hour, however to get the best results from this filter we would recommend a pond size of 5,500 with a flow rate of 2,750 per hour.
Pump Fed unit.
Media package comprises: 24lts of Kintima Black Bio Media, Blue Matting, 2 Green Foam Sheets & 2 Black Coarse Foam Sheets
Comes Complete with 11 planting baskets, 11 hessian sheets and a 20lt of Westland Aquatic Compost

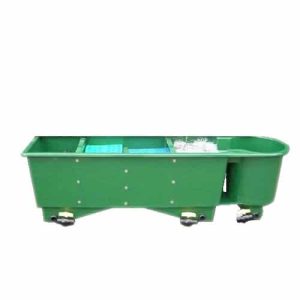

Kockney Koi 10000V Fibreglass Filter
Kockney Koi 10000V Fibreglass Filter
The KF10000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 10,000 litres and a maximum flow rate of 6,000 litres ph. However, with lighter stocking densities or in fish free ponds the KF10000 will comfortably cope with larger volumes. The integral Vortex enhances the unit’s performance and reduces the maintenance intervals
The media package consists of:
Specifications:
Bay 1: Six 16″ long x 8″ diametre polypropylene filter brushes – They are of a semi-rigid construction with a wire loop at the end for easy installation.
Bay 2: Blue matting – This is an excellent filter media as it has excellent bio-mass retention and its open texture removes larger particles from the water.
Bay 3: Six layers of sponge with varying layers of porosity, two large foam blocks and a layer of flocor.
Bay 4: Filled with Flocor. The large surface area of Flocor tubes makes it an ideal filter media.
81” long x 21” wide x 24” Deep
Maximum flow rate 6,000 litre per hour
Three drainage points – (Accepts 1.5″ solvent weld pipe for remote drainage)
Supplied with 3 1.5″ Kockney Koi Ball Valves
The pump fed model has a 4″ inlet and outlet while the gravity fed model has a 4″ inlet and 1.5″ outlet.
Both Options are supplied including media
Kockney Koi 18000V Fibreglass Filter
Kockney Koi 18000V Fibreglass Filter
The KF18,000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber design ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of 18,000 litres and a maximum flow rate of 11,000 litres per hour. However, with lighter stocking densities or in fish free ponds the KF18,000 will comfortably cope with much larger volumes. The integral Vortex enhances the unit’s performance and reduces the maintenance intervals
Specifications:
The media package consists of:
Bay 1: Eighteen 16″ long x 8″ diametre polypropylene filter brushes – They are of a semi-rigid construction with a wire loop at the end for easy cleaning.
Bay 2: Blue matting – This is an excellent filter media as it has a large surface area giving it an excellent bio-mass retention. Its open texture removes larger particles from the water.
Bay 3: Three layers of reticulated foam with different density of porosity of each layer. This is on top of a layer of approximately 2 cubic foot of flocor.
Bay 4: Six way foam block manifold assembly on top of six cubic foot of Flocor. The large surface area of Flocor tubes makes it an ideal filter media.
102 ” long x 33” wide x 32” Deep
Maximum flow rate 11,000 litre per hour
Three drainage points – (Accepts 1.5″ solvent weld pipe for remote drainage)
Supplied with 3 x 1.5″ Kockney Koi Ball Valves (Not shown)
The gravity fed model has a 4″ inlet and 1.5″ outlet where the pump fed model has a 1.5″ inlet and 4″ outlet.
Both Options are supplied including media
Kockney Koi 5000V Fibreglass Filter
Kockney Koi 5000V Fibreglass Filter
The KF 5000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 5000 litres and a maximum flow rate of 3000 litres ph. However, with lighter stocking densities or in fish free ponds the KF4000 will comfortably cope with larger volumes. Complete with a new media package consisting of: filter brushes, Japanese matting, wadding and flocor. The integral Vortex enhances the unit’s performance and reduces the maintenance intervals. It is suitable for Pump or Gravity feed. Fitted with 3″ inlet and 2″ outlet. Pump fed version comes complete with 2 x 2″ outlets.
Specifications:
5000V (4 Bay) 51” x 17” x 19” Deep
Maximum flow rate 3,000 litre per hour
Inlet size 3” – Outlet 2” solvent (pump fed 2 x 2″ outlets)
Three drainage points – (Accepts 1.5″ solvent weld pipe for remote drainage)
Media: flocor, matting cartridge, brushes, and filter wadding
Both Options are supplied including media
Kockney koi 8000 Fibreglass Filter
Kockney koi 8000 Fibreglass Filter
The KF8000 is available as pump fed (KF8000P) and gravity fed (KF8000G). It is a high quality, free-standing, fibreglass, three bay, filter designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 8000 litres and a maximum flow rate of 6000 litres ph. However, with lighter stocking densities or in fish free ponds the KF8000 will comfortably cope with much larger volumes. Complete with multi spray bar (pump fed), filter brushes, Japanese matting and flocor. Its clever design enables it to fit through a standard 30″ domestic door opening (if required) so it can be transported through the house for those properties where there is no side or rear access. Optional matching vortex (VF1) available for gravity fed model (KF8000G).
Specifications:
8000 Litre (3 Bay) 37″ x 31.5″ x 24.5″ Deep
Maximum flow rate 6,000 litre per hour
Pump fed – Inlet size 1.5” – Outlet 110mm solvent
Gravity fed – inlet size 110mm – outlet 1.5”
Available as gravity or pump fed complete with: 2 drains and 2 Ball Valves
Media: flocor, blue matting cartridge and brushes
Both Options are supplied including media

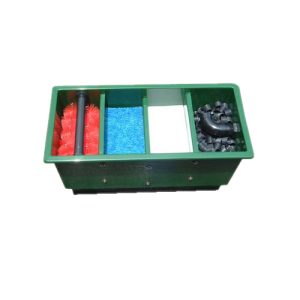

Kockney Koi Filter 4000
Kockney Koi Filter 4000
The 4000FG is a Pump Fed, high quality, free-standing, fibreglass, four bay, filter designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for ponds of up to 4000 litres and a maximum flow rate of 3000 litres ph.
However, with lighter stocking densities the KF 4000 will comfortably cope with larger volumes. 1.5” inlet & 2” Outlet. Complete with multi spray bar, filter brushes, Japanese matting and flocor.
Specifications:
4000 Litre (4 Bay) 36” x 17” x 19” Deep
Maximum flow rate 3,000 litre per hour
Inlet size 1.5” – Outlet 2” solvent
Available pump fed with spray bar complete with or without media
Two drainage points – (Accepts 1.5″ solvent weld pipe for remote drainage)
Media: flocor, matting cartridge, brushes, filter wadding
Supplied including media
