Filtreau Drum filter
Filtreau Drum filter
Now look what we have here!. A drum filter for the price of a good quality sieve. If that was not enough, these Filtreau Drum filters come complete with a built in 40watt Amalagam UV as well. There is no other prefilter available on the market that represents such a good price.
These Filtreau Drum filters have been produced to provide an entry level into the drum filter market. But the quality of these drum filters are superb for the price and represent excellent value for money.
Designed for ponds up to 5000 gallons these Filtreau Drum filters have two 4″ (110mm) inlets and one 110mm outlet for connection of the circulation pump, and one 4″ (110mm) outlet for the waste.
The drum filter comes complete with all the control gear and as mentioned above also has a 40watt Amalagam UV built in.
This drum filter, with it’s 60 micron screen will filter particles out of the ponds water automatically with the automatic cleaning process that is built into the drum. Sensors monoitor the water levels within the drum filter and a cleaning cycle is activated as and when necessary to ensure that all waste particles are removed and then flushed to waste.
There are two options available for this backwash process, you can either connect the drum up to the mains water supply and use mains water to clean the drum (a solenoid valve will be required for this option which we can supply), or a optional pressure pump can be purchased which wll be controlled by the drums built in controller and use the water held within the drum to clean the drum’s screen.
The motor that rotates the drum and the control gear have been used on other drum filters in the Netherlands and fully tested over the past 3 years so you can buy with confidence both on quality and reliablity.
The manufacturer of this Filtreau Drum filter will be shortly releasing an add on Bio-Chamber that will connect to this drum filter to provide all the biological filtration required for your pond. We will update this section as soon as they are available. This option will then enable you to have the full benefits of a Bio-Compact system which are the most cost effective and environmentally friendly forms of pond filtration available as lower wattage pumps can be used on the circulation of your ponds water.
Filtreau Moving Bed Bio Chamber
Filtreau Moving Bed Bio Chamber
The Filtreau moving-bed is a bio filtration system with a 190L bio-chamber wich ensures crystal-clear water. The moving-bed is suitable for (koi) ponds up to as much as 30.000L!
Inlets and outlets require Fitting prior to install.
Dimensions:
57 x 57 x 78 cm (L x W x H)
Evolve mini shower- Bacteria Shower
The Evolve mini Bacteria Shower another great addition to the evolve range.
Overall dimensions are; 540mm long x 250mm wide x 780mm tall.
Supplied with a 2-inch removable spray bar should the user wish to drill more holes.
Extra tiers can be purchased separately should a larger capacity shower be required.
The Bacteria Shower comes with the standard waterfall type base to sit on the pond wall but can be ordered with a piped base if required to allow the outflow to be piped to a certain location.
A two-spray bar top tier of the shower is available if extra water volume is required.
This shower has a recommended maximum flow rate of 4,000 gallons per hour (18,000 litres).
Evolve Shower 1000mm Wide Three Tier Shower
Evolve Shower 1000mm Three Tier Shower with full weir Base
Overall dimensions are; 1000 mm long x 260 mm wide x 900 mm tall.
Supplied with a 2-inch removable spray bar should the user wish to drill more holes.
Extra tiers can be purchased separately should a larger capacity shower be required.
The Evolve Shower comes with the standard waterfall type base to sit on the pond wall but can be ordered with a piped base if required to allow the outflow to be piped to a certain location.
A two-spray bar top tier of the shower is available if extra water volume is required.
This shower has a recommended maximum flow rate of 5,000 gallons per hour (20,000 litres).

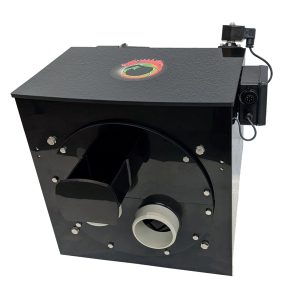

Origin Draco Drum
Origin Draco Drum
The Origin Draco Drum is a reasonably priced and reliable unit. It comes with a choice of screens 77 microns and 58 microns depending on what is required. This Drum Can be used without a pressure wash pump – wash cycle runs off a normal garden hose with a minimum pressure of 2.5 bar with good flow. The Origin uses 35 watts of power while active, 11.5 watts while on standby and 78 watts while active with optional pressure pump. The Drive system comprises direct gearing to the back of the drum minimising complexity, the sealed motor unit is mounted on a single pivot swing arm as a safety feature to stop foreign bodies jamming the system. Its a fairly Simple installation via multiple types of adaptor plate which are interchangeable Single, pre-wired connection from controller to drum. Just plug and play ability to site controller up to 4 metres away from the unit. The Status of controller is available via simple, high intensity, colour coded LEDs and a digital minute between washes display. Easily accessible water level sensors that can be adjusted to accommodate any situation
All parts are modular and are replaceable in the event of any damage or failure Wholly designed and built in the UK by Draco Drum.
Technical Data
- 3700gph / 16500lph flow rate
- Single 110mm inlet
- Filters to 58 micron
- Gravity or pump fed
- Designed to wash from mains pressure (down to 2 bar)
- 11 watts standby / 35 watts wash
- 12 volts DC waterside electrics
- Simple plug and play design
- Polypropylene / Stainless steel construction
- Totally modular – all parts user replaceable
- Optional bolt on wash pump (for low water pressure areas)
