A Heat Exchanger is one of the most cost effective method of controlling the water temperature of Ponds. Using a Stainless Steel Heat Exchanger provides a method of heating water by simply pumping the water, on it’s return to the pond in much the same you would connect a UV Steriliser
Elecro G2 Titanium Heat Exchangers
Elecro G2 Titanium Heat Exchangers
Elecro Multi-Tubular heat exchangers are comprised of a 38-piece Titanium tube bundle, giving a vast surface contact area for the two water circuits.
The primary circuit chamber – through which water from the heating source travels, is very narrow ensuring heat is absorbed and replaced with Hot water quickly.
These strategic design features enable the Elecro heat exchangers to perform very efficiently even when working with low value Primary temperatures, such as Solar heating systems.
The rigid aluminium jacket encapsulating a pocket of air, thermally insulates the entire unit ensuring that heat is transferred within the desired chamber and absorbed by the swimming pool water, rather than lost to the atmosphere.
Titanium Tube Bundles make the Elecro Heat Exchangers ideal for use on Salt Chlorinated pools.
The unique design and robust construction of the Elecro Generation 2 (G2) Heat Exchanger offers an unrivalled heat transfer surface area, making it one of the most efficient products on the market.
Featuring a densely packed tubular bundle in a thermally insulated primary chamber. The relatively small volume of the chamber and large surface area of the internal tubing provides superb heat transfer efficiency and minimal energy loss, making the G2 the perfect choice for all applications including gas or oil fired boiler circuits, solar panels, heat pumps or chillers.
The G2 is manufactured to the highest specification, using the strongest and most durable materials. The shell is constructed from BS 316L stainless steel (EN 1.4432) and enclosed by a rigid thermal casing for enhanced insulation of the primary water flow, ensuring maximum efficiency.
It has been designed to allow the installation engineer to select which way to plumb the primary and secondary water to achieve maximum thermal gain. This is achieved by routing the primary flow in an opposing direction to the secondary (pool) water.
The standard G2 heat exchanger is supplied complete with:
- 2 x 1” male/male brass primary connections
- 1 x 1” non-return valve
- Titanium thermostat pocket
- 1 x Blanking cap & coin gasket (for non-thermostat side)
Features:
- Four models ranging from 30-kW to 122-kW
- Robust, durable construction
- 316 stainless steel shell with special polyamide fittings
- 38 piece titanium internal tube bundle
- For indoor or outdoor pools
- Thermostat pocket
- Solvent weld unions for connection to rigid pipe
- 1.5” connections
- Suitable for salt, chlorinated and solar heated pools
- Available with fully equipped Analogue or Digital control (optional)
- May be floor or wall mounted with the supplied bracket
- BS 316L Stainless Steel shell (EN 1.4432) with special polyamide fittings
- 3-year warranty

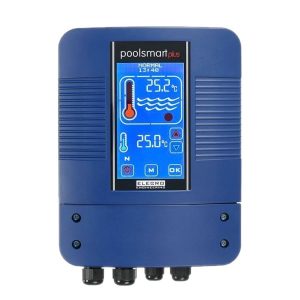

Elecro Poolsmart Plus Heating Controller
Elecro Poolsmart Plus Heating Controller
The Elecro Poolsmart Plus Heating Controller is the intelligent pool control system that allows you to control and maintain your pool to the perfect temperature as economically as possible. The controller features a digital touch screen display, allowing you to control the functions at a touch of a finger.
The priority heating function allows the controller to override the circulation pumps time clock, switching the circulation pump on and therefore allowing the heating appliance to heat your pool water to the required temperature. The controller will then switch the circulation pump off, ensuring your pool is always maintained at the perfect temperature.
Features & Benefits:
- Smart touchscreen display
- BMS (Building Management System) Integration Ready
- Multi-lingual interface
- Programmable 24-hour time clock (4 time zones)
- Flow and temperature sensor ports
- Accurate control to 0.5°C
- Diagnostic display
| Power Supply | Single phase 100-240V |
|---|---|
| Available Models | Heating only |
| Control Thermostat | Digital: 0>45°C (0.5°C differential) |
| Temperature Sensor | 3 metre long (thermistor 103AT-2, R25=10K B=3435K) |
| Flow Switch | 3 metre long with gold tipped reed switch with titanium fulcrum pin |
| Ingress Protection Rating | IP44 |
| Frequency | 50/60 Hz |
| Mounting | Wall mounting |
Pro line Digi-Stat (With 3mtr Probe)
Pro line Digi-Stat (With 3mtr Probe)
The Pro line Digi-Stat is designed to give automatic temperature control for Koi ponds. Operating in the range of 0° to 30°C this highly accurate stat will hold the water temperature within ± 0.1°C. The unit is programmed with an automatic temperature gradient control which eliminates temperature shock for the fish when changing settings.
The unit will operate most boilers, motorized valves. A large clear display and easy setting mode make this a very user friendly thermostat.
The Pro line Digi-Stat is fully adjustable, waterproof (splash proof) and ideal for Gas or Oil installations. Complete with 3 m probe and power connections. LED display. IP68 rated
In fact this Pro Digi-Stat uses the very same control system as the very popular Elecro heaters which I can assure you are the best heaters on the market !
Stainless Steel Heat Exchanger
Stainless Steel Heat Exchangers
A Stainless Steel Heat Exchanger is the most cost effective method of controlling the water temperature of Ponds.
Using a Stainless Steel Heat Exchanger provides a method of heating water by simply pumping the water, on it’s return to the pond in much the same you would connect a UV Steriliser
Water enters through the Inlet Pipe and then circulates past an inner Stainless Steel Coil. The coil contains hot water from the boiler. The heat from the ‘Hot Water’ in the inner coil never makes contact with the actual pond water but the heat generated from it is then transferred to the water flowing round it by radiation providing heat to your pond.
All Our Heat Exchangers are made from the finest quality 316 Stainless Steel and have a superb finish.
| Heat Exchanger BTU | 60K | 100K | 130K | 170K | 230K | |
|---|---|---|---|---|---|---|
| Flow Rate (gph) | 900 | 1440 | 1860 | 2460 | 3300 | |
| Pond Size (gallons) | 5,000 | 7,500 | 10,000 | 15,000 | 20,000 |
Submersible Stainless Steel Heat Exchangers
Submersible Stainless Steel Heat Exchangers
The heat exchangers are designed for full immersion in water. In addition to stainless steel heat exchangers. The heat exchangers are available in 2 models: for a heat transfer of approximately 15 kW and 30 kW respectively (with a temperature difference of approximately 50°C).
Stainless Steel Heat Coils: Freshwater Applications
- designed for immersion: these coils are made to be fully submerged in water for excellent heat transfer without unnecessary resistance
- easy installation: simply connect them to the home boiler, district heating, heat pump, or solar collectors
- efficient in use: complete heat transfer to the water without any loss of pump capacity
Sizes and Details:
15kw coil 12mm
size 170mm Width total length 470mm
Material aisi 316 gr. stainless steel
weight kg 1.6kg
30kw coil 22mm
size 370mm Width total length 590mm
Material aisi 316 gr. stainless steel
weight kg 3.4kg
Submersible TITANIUM Heat Exchangers
The heat exchangers are designed for full immersion in water. In addition to stainless steel heat exchangers. The heat exchangers are available in 2 models: for a heat transfer of approximately 15 kW and 30 kW respectively (with a temperature difference of approximately 50°C).
Titanium Heat Exchangers: Saltwater Applications
exceptional corrosion resistance: titanium is highly suitable for saltwater environments due to its high resistance to corrosion
longer lifespan: thanks to the durability of titanium, these heat exchangers have a longer lifespan, especially in (aggressive) saltwater conditions
efficient heat transfer: just like our stainless steel models, these heat exchangers offer efficient heat transfer
Technical Data
15kw 12mm
Additional information Dimensions
Weight kg 0.9
Material Titanium
30kw 22mm
Additional information Dimensions
Weight kg 1.7
Material Titanium
