Home » Shop » Pond pumps » Aquamax Classic Pumps » AquaMax Eco Classic 17500
AquaMax Eco Classic

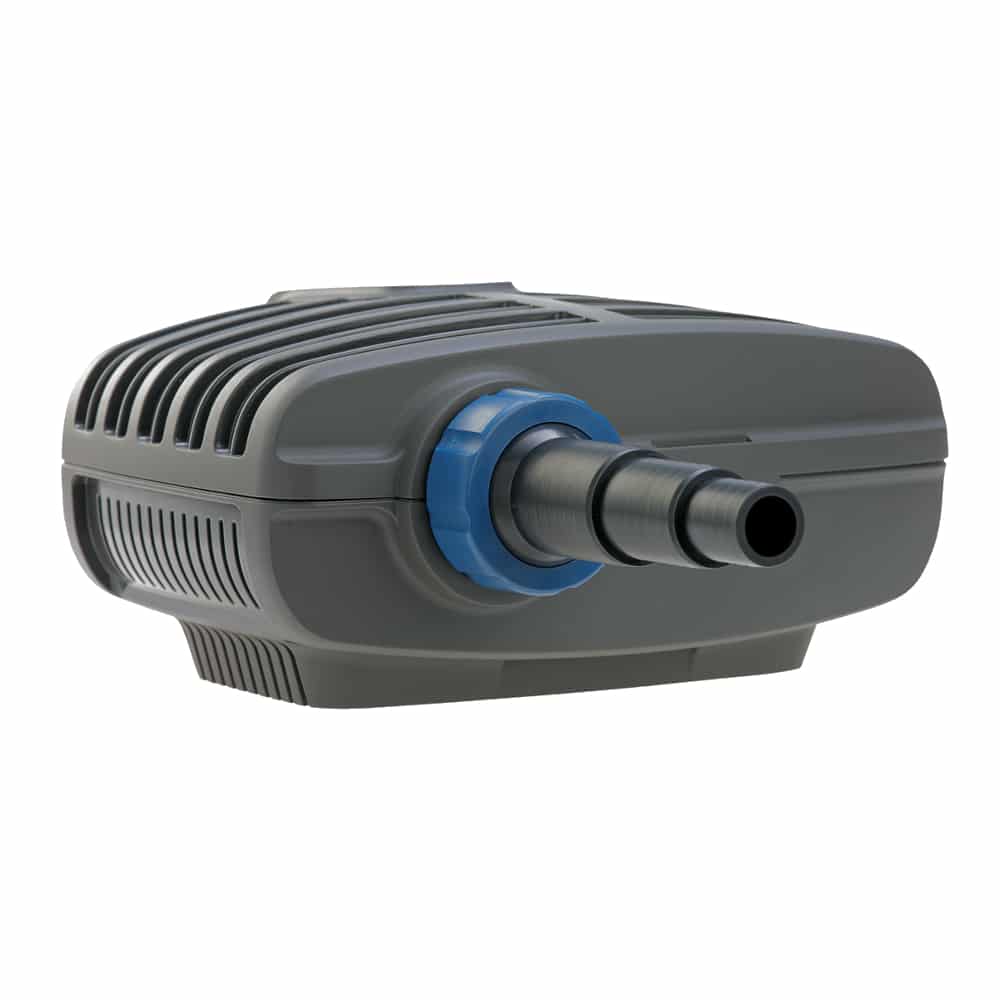

  • AquaMax Eco Classic

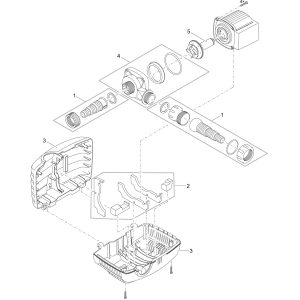

  • AquaMax Eco Classic diagram
  • AquaMax Eco Classic 2500 - 14500 flow rates
  • AquaMax Eco Classic 2

AquaMax Eco Classic 17500

£389.99 inc. VAT

AquaMax Eco Classic 17500

The entry-level class among filter and stream pumps: With an output of 17400 l / h, the AquaMax Eco 17500 transports the pond water powerfully and reliably to the stream, waterfall or filter system. With a power consumption of only 170 watts, it conveys dirt particles up to 8 mm in size. Thanks to the energy-efficient EC motor, the AquaMax Eco Classic continuously saves electricity – and thus money. The hose connection is very simple: hoses of various sizes fit easily onto the special stepped hose nozzle and the ball joint can be swivelled continuously. Strong OASE quality: You receive a total of up to 5 years guarantee – 3 plus 2 years guarantee.

Specifications:

  • The completely redesigned classic – the entry level series of filter and watercourse pumps from OASE
  • A totally new form: Thanks to organic design, it can be integrated in ponds and watercourses, almost invisibly
  • Extremely economical: Thanks to its energy efficient motor, the AquaMax Eco Classic 17500 saves power and money while in operation
  • Suitable for use on swim ponds and bathing ponds (inserted in an exterior pump chamber)
  • Included in the scope of delivery: Special hose adapter with threaded collar for different hose sizes
SKU: PP3283 (56710) Category:

Description

AquaMax Eco Classic 17500

The entry-level class among filter and stream pumps: With an output of 17400 l / h, the AquaMax Eco 17500 transports the pond water powerfully and reliably to the stream, waterfall or filter system. With a power consumption of only 170 watts, it conveys dirt particles up to 8 mm in size. Thanks to the energy-efficient EC motor, the AquaMax Eco Classic continuously saves electricity – and thus money. The hose connection is very simple: hoses of various sizes fit easily onto the special stepped hose nozzle and the ball joint can be swivelled continuously. Strong OASE quality: You receive a total of up to 5 years guarantee – 3 plus 2 years guarantee.

Specifications:

  • The completely redesigned classic – the entry level series of filter and watercourse pumps from OASE
  • A totally new form: Thanks to organic design, it can be integrated in ponds and watercourses, almost invisibly
  • Extremely economical: Thanks to its energy efficient motor, the AquaMax Eco Classic 17500 saves power and money while in operation
  • Suitable for use on swim ponds and bathing ponds (inserted in an exterior pump chamber)
  • Included in the scope of delivery: Special hose adapter with threaded collar for different hose sizes

Technical Data

Dimensions (L x W x H) mm 280 x 230 x 130
Rated voltage 220 – 240 V / 50 Hz
Power consumption W 135
Power cable length m 10.00
Net weight kg 3.40
Guarantee (+ request guarantee) Years 3 + 2
Max. flow rate l/min 226
Max. flow rate l/h 13600
Max. head height m 3.40
Connection pressure-side mm 50
Connection pressure-side 2″
Connection sunctions-side mm 50
Connection sunctions-side 2″
Connection for hoses mm 25 / 32 / 38
Connection for hoses 1″, 1 ¼”, 1 ½”
Filter intake surface cm² 810
Coarse debris displacement max. mm 8
Electronically adjustable No
Setup type Can be setup underwater & dry

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





AquaMax Eco Classic 17500.pdf

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 6 kg
Dimensions 40 × 40 × 30 cm
