Description

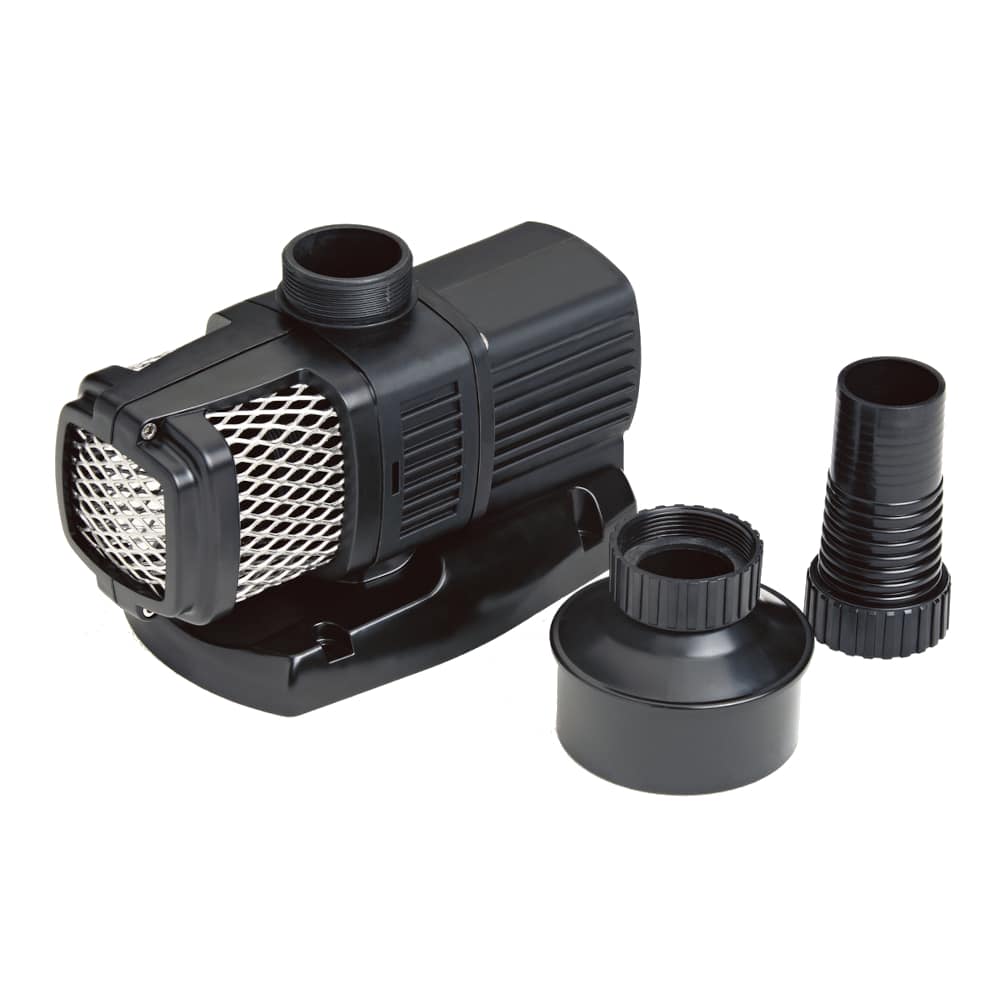

AquaMax Eco Gravity 10000
Energy-efficient gravity pump for professional filter systems. The AquaMax Gravity Eco 10000 filter pump is reliable and powerful, ensuring that the water circulates at a rate of 10000 l / h. It is the ideal partner, especially for professional filter systems that are operated by gravity, as it has excellent energy efficiency properties – with a power consumption of only 65 watts. The removable foot makes the filter pump particularly stable in both dry and submerged use. The scope of delivery also includes the adapter set for connection to hoses (2 “/ DA63) and pipes (DA75 / DA110). Inserted in an external pump chamber, it is suitable for swimming and bathing ponds. In winter it can even remain there. Powerful OASIS -Quality.
Characteristics:
- AquaMax Eco Gravity 10000 is an Energy-efficient filter pump with strong and reliable delivery capacity for large bodies of water with intensive use
- Coarse debris displacement of particles up to 6 mm in size
- High stability thanks to the removable mounting base
- Can be set up underwater & dry
- Winterproof: the pump will not be damaged at temperatures as low as -20° C
- Included in the scope of delivery: adapter set for hose (2” / DA 63) and pipe connection (DN 75 / DN 110)
- »Environmental Function Control« (EFC by OASE) protects against dry run and blocking
- Suitable for use on swim ponds and bathing ponds (inserted in an exterior pump chamber)
- Coarse pollutant displacement of particles up to 6 mm in size
- Flow-optimised impellers ensure a high-level of energy efficiency
- Long service life
- Suitable for wet and dry installation
- Suitable for use in swim ponds and bathing ponds
- Includes adaptor set 2″/DA 63 and DA 75/DA 100

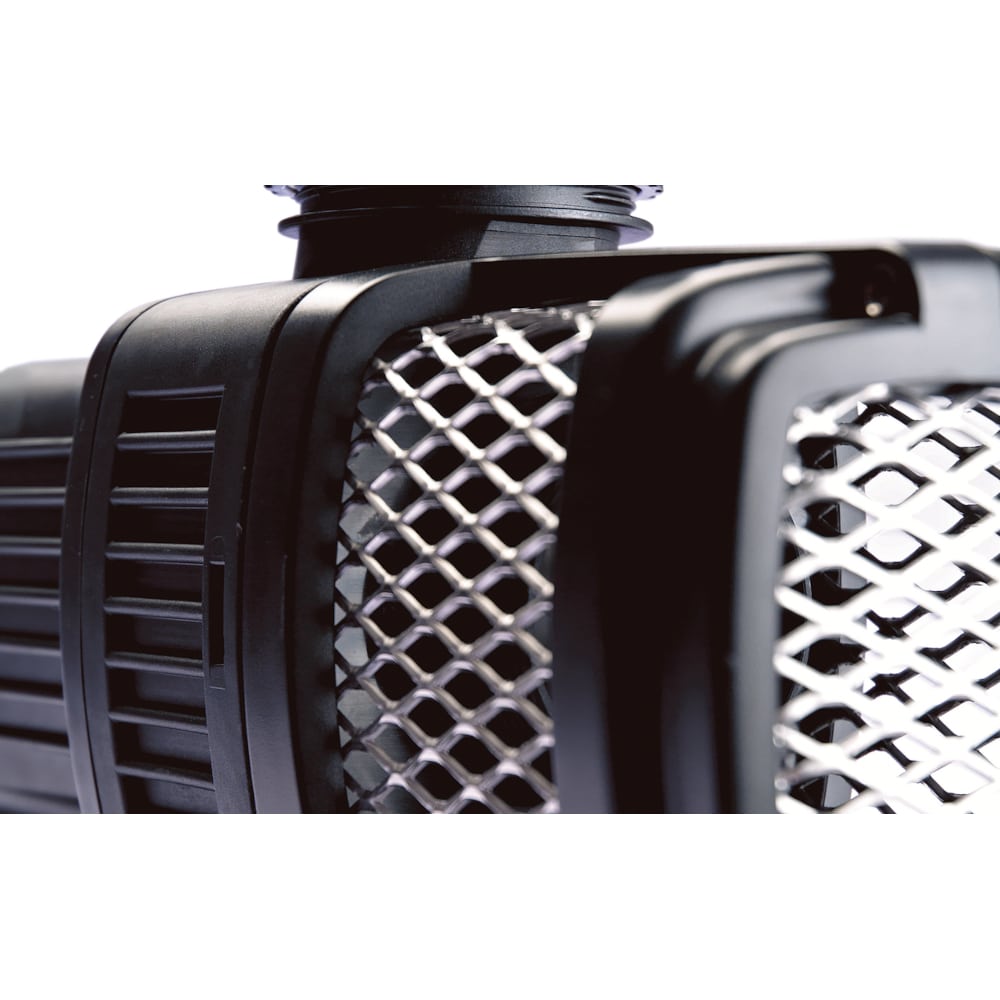

Stainless steel pump guard
Thanks to this high quality, stainless steel filter basket coarse pollutant particles up to 6 mm in size are displaced with ease.
Adapter set
The included adapter set enables connection of hoses (50 mm / DA 63) and pipes (DN 75 / DN 110).
Removable base
The removable base enables pump installation in confined spaces.
Technical Data
| Dimensions (L x W x H) | mm | 272 x 142 x 182 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50 Hz | |
| Power consumption | W | 65 |
| Power cable length | m | 10.00 |
| Net weight | kg | 4.20 |
| Guarantee (+ request guarantee) | Years | 3 + 2 |
| Max. flow rate | l/min | 166 |
| Max. flow rate | l/h | 10000 |
| Max. head height | m | 1.30 |
| Connection pressure-side | mm | 50 |
| Connection pressure-side | 2″ | |
| Connection sunctions-side | mm | 50 |
| Connection sunctions-side | 2″ | |
| Connection for hoses | mm | 50 |
| Connection for hoses | 2″, DA 63, DA 75, DA 110 | |
| Filter intake surface | cm² | 200 |
| Coarse debris displacement max. | mm | 6 |
| Electronically adjustable | No | |
| Setup type | Can be setup underwater & dry |
