Home » Shop » Pond UV Lights » Bio-UV 40 professional UVC unit

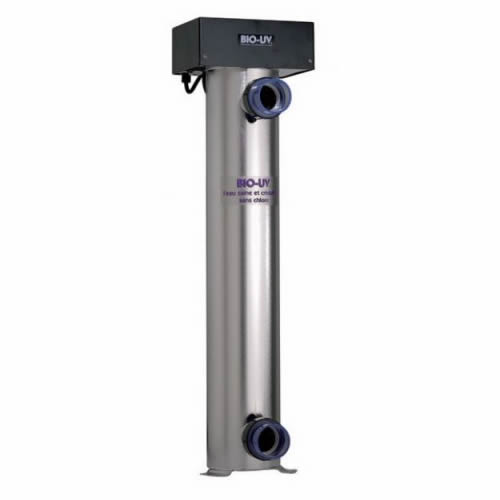

Bio-UV 40 professional UVC unit
  • Bio-UV 40 professional UVC unit

Bio-UV 40 professional UVC unit

£2,812.99 inc. VAT

Bio-UV 40 professional UVC unit

The Bio UV Professional is probably the worlds best UV system made from 316L Stainless Steel. With a 6″ Body and 2-3″ returns for today’s high flow system. The Bio UV Professional incorporates a single lamp for ponds up to 30,000 gallons, with a long life lamp of 9000 hours. All units are IPS4 rating. Kills 99.9% of algae spores, bacteria and viruses.

How the Bio-UV 40 professional UVC unit works

It has been long known that ultraviolet lamps at a wavelength of 254 nanometers, or 2537 Angstrom, have high bactericidal, virucidal and algicidal properties. Type C ultraviolet eradicates germs by aggressively disrupting the cell metabolisms leading to their destruction. These lamps should not be mistaken for ozone producing lamps, which operate at different wavelengths. Ultraviolet radiation is measured in micro watts/second/cm2.

The key elements for efficient disinfecting are based, on one hand on the exposure time (i.e the ratio between the size of the pond and the flow rate through the filter) , and on the other hand, on the energy emitted in micro watts/second/cm2 at the furthest point from the lamp. Performance is measured in milijoules (mj) by combining the energy emitted by the lamp and the exposure time. The Bio UV range UV-C lamps work at levels above the minimum required to destroy the principle micro-organisms, which may be found in Koi ponds. In addition thanks to the reflection produced by the stainless steel (316L) within the chamber, efficiency is increased by 20 to 30 %. Micro-organisms must, in theory be exposed for a minimum of 1 second. However, BIO-UV equipment specifications, depending on the flow rates, double the exposure time to 2 seconds, for optimal disinfecting. In order not to hinder the action of the UV-C it is important to have a high filtration quality so that large particles do not screen the radiation.

Warranties

The Bio UV Professional offers a five-year warranty on the stainless steel chamber and a full year one-year warranty on all other components (including UV lamp).  If installed according to manual.

Finally

The The Bio UV Professional system gives you the comfort of knowing that your water quality is superior to that of any other type of system, ease of installation, virtually no maintenance and optimum reliability.

Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.

A claim will ONLY be accepted if signed for as DAMAGED.

Type Pond Size Height Watt GPH Dia Kg
Bio UV 10 Up to 4000 gallons 42 cm 30 2599 15 cm 7.6
Bio UV 20 Up to 8000 gallons 69 cm 55 4500 15 cm 9
Bio UV 30 Up to 15000 gallons 94 cm 87 7000 15 cm 11
Bio UV 40 Up to 27000 gallons 120 cm 105 9000 15 cm 14



This is the Bio-UV 40 professional UVC unit

SKU: uv481 Category:

Description

Bio-UV 40 professional UVC unit

The Bio UV Professional is probably the worlds best UV system made from 316L Stainless Steel. With a 6″ Body and 2-3″ returns for today’s high flow system. The Bio UV Professional incorporates a single lamp for ponds up to 30,000 gallons, with a long life lamp of 9000 hours. All units are IPS4 rating. Kills 99.9% of algae spores, bacteria and viruses.

How the Bio-UV 40 professional UVC unit works

It has been long known that ultraviolet lamps at a wavelength of 254 nanometers, or 2537 Angstrom, have high bactericidal, virucidal and algicidal properties. Type C ultraviolet eradicates germs by aggressively disrupting the cell metabolisms leading to their destruction. These lamps should not be mistaken for ozone producing lamps, which operate at different wavelengths. Ultraviolet radiation is measured in micro watts/second/cm2.

The key elements for efficient disinfecting are based, on one hand on the exposure time (i.e the ratio between the size of the pond and the flow rate through the filter) , and on the other hand, on the energy emitted in micro watts/second/cm2 at the furthest point from the lamp. Performance is measured in milijoules (mj) by combining the energy emitted by the lamp and the exposure time. The Bio UV range UV-C lamps work at levels above the minimum required to destroy the principle micro-organisms, which may be found in Koi ponds. In addition thanks to the reflection produced by the stainless steel (316L) within the chamber, efficiency is increased by 20 to 30 %. Micro-organisms must, in theory be exposed for a minimum of 1 second. However, BIO-UV equipment specifications, depending on the flow rates, double the exposure time to 2 seconds, for optimal disinfecting. In order not to hinder the action of the UV-C it is important to have a high filtration quality so that large particles do not screen the radiation.

Warranties

The Bio UV Professional offers a five-year warranty on the stainless steel chamber and a full year one-year warranty on all other components (including UV lamp).  If installed according to manual.

Finally

The The Bio UV Professional system gives you the comfort of knowing that your water quality is superior to that of any other type of system, ease of installation, virtually no maintenance and optimum reliability.

Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.

A claim will ONLY be accepted if signed for as DAMAGED.

Type Pond Size Height Watt GPH Dia Kg
Bio UV 10 Up to 4000 gallons 42 cm 30 2599 15 cm 7.6
Bio UV 20 Up to 8000 gallons 69 cm 55 4500 15 cm 9
Bio UV 30 Up to 15000 gallons 94 cm 87 7000 15 cm 11
Bio UV 40 Up to 27000 gallons 120 cm 105 9000 15 cm 14



This is the Bio-UV 40 professional UVC unit

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Bio UV.pdf

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 12 kg
Dimensions 70 × 30 × 20 cm
