Burtons BD 300 Combi Pond Drum Filter

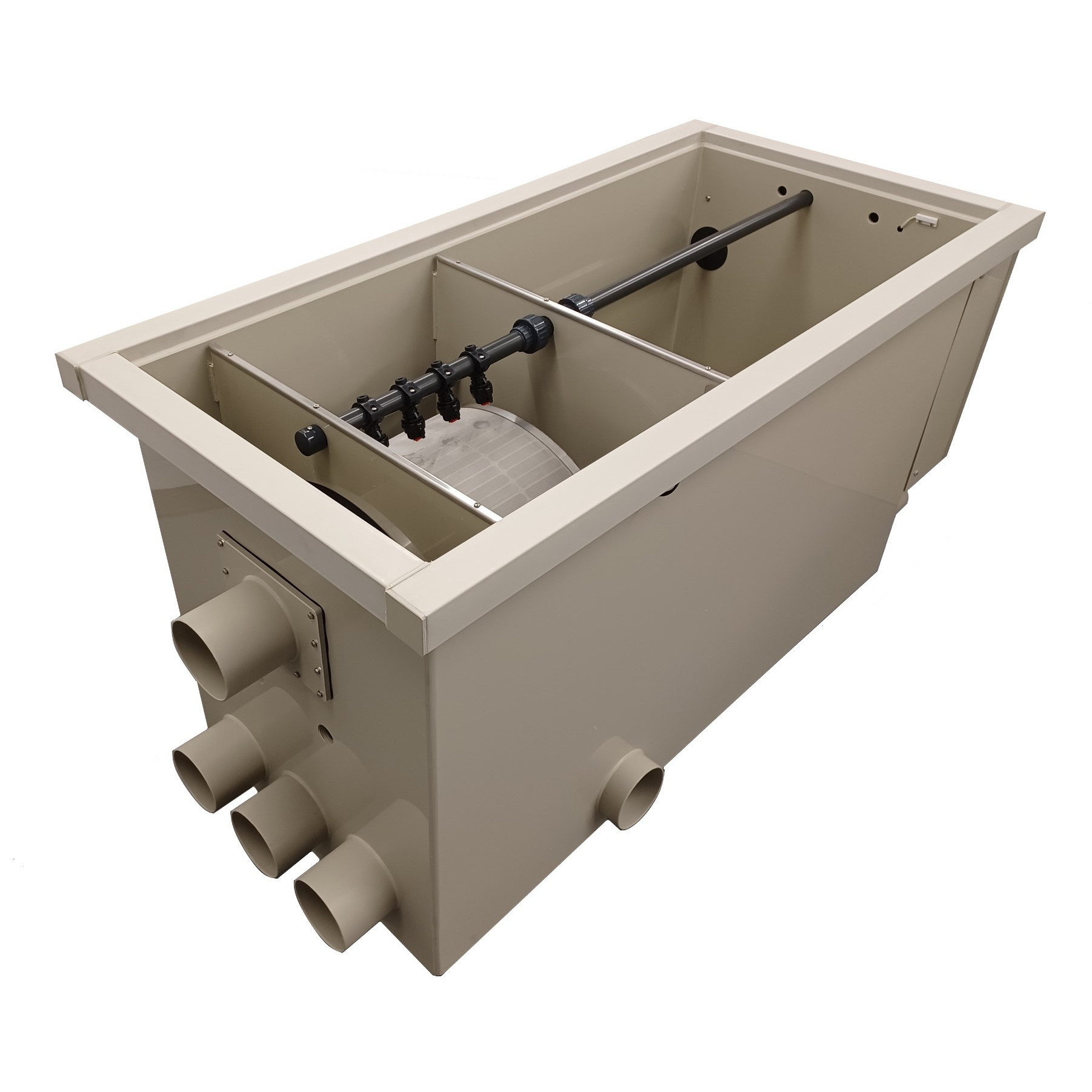

  • Burtons BD 300 Combi Pond Drum Filter

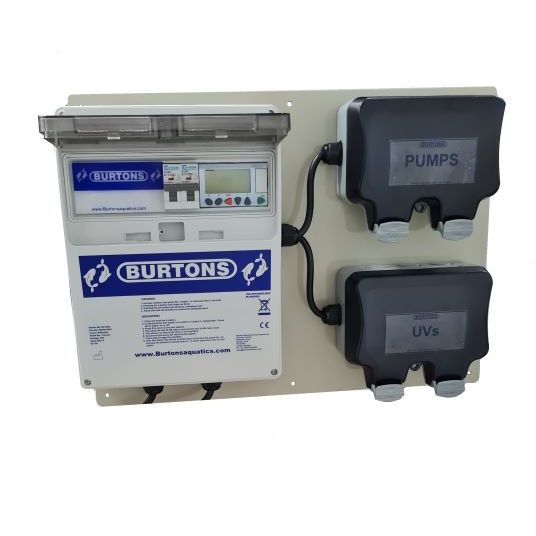

  • 2022_control_with_socket_panel_web
  • bd_300_combi_other_side_image_web

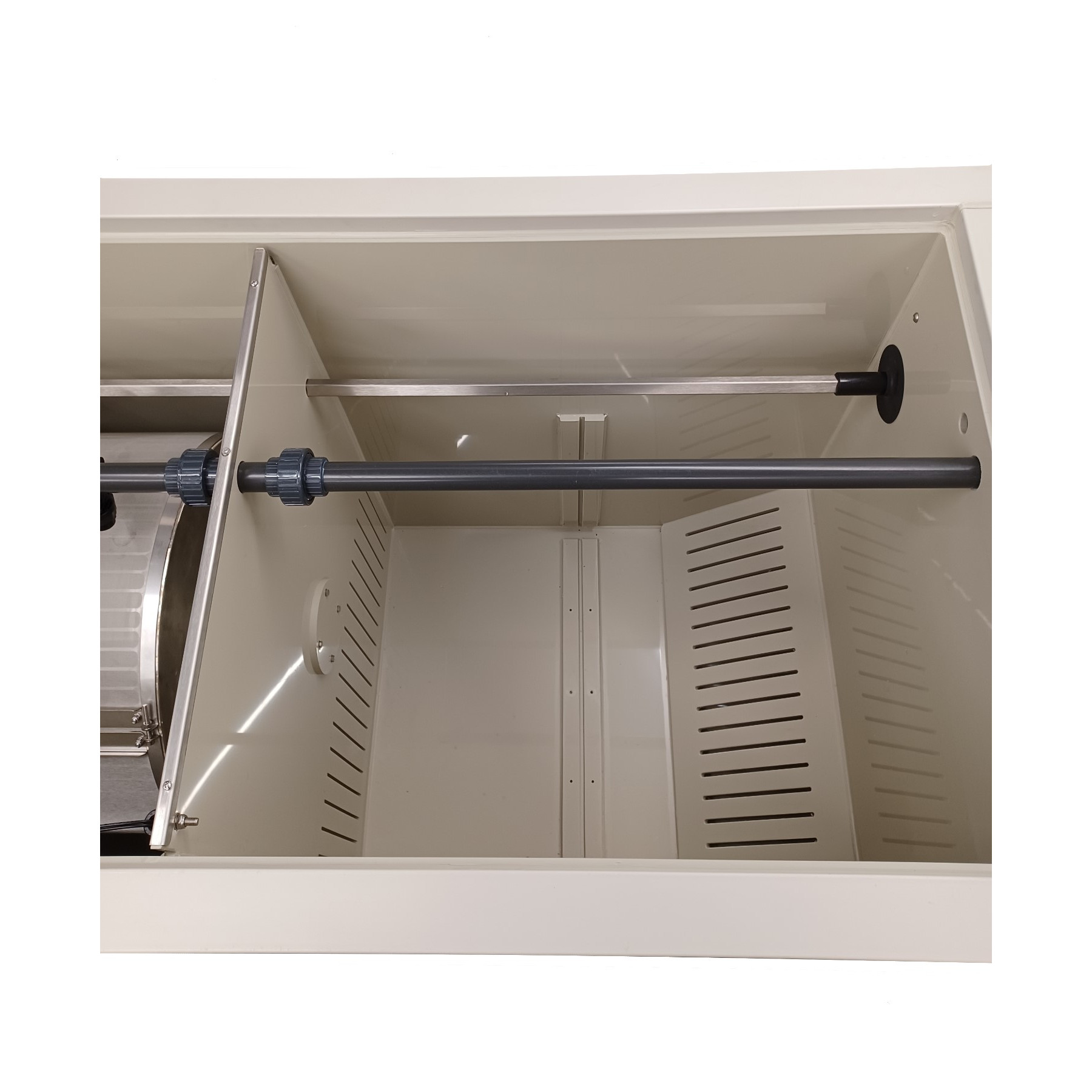

  • bd_300_combi_bio_web

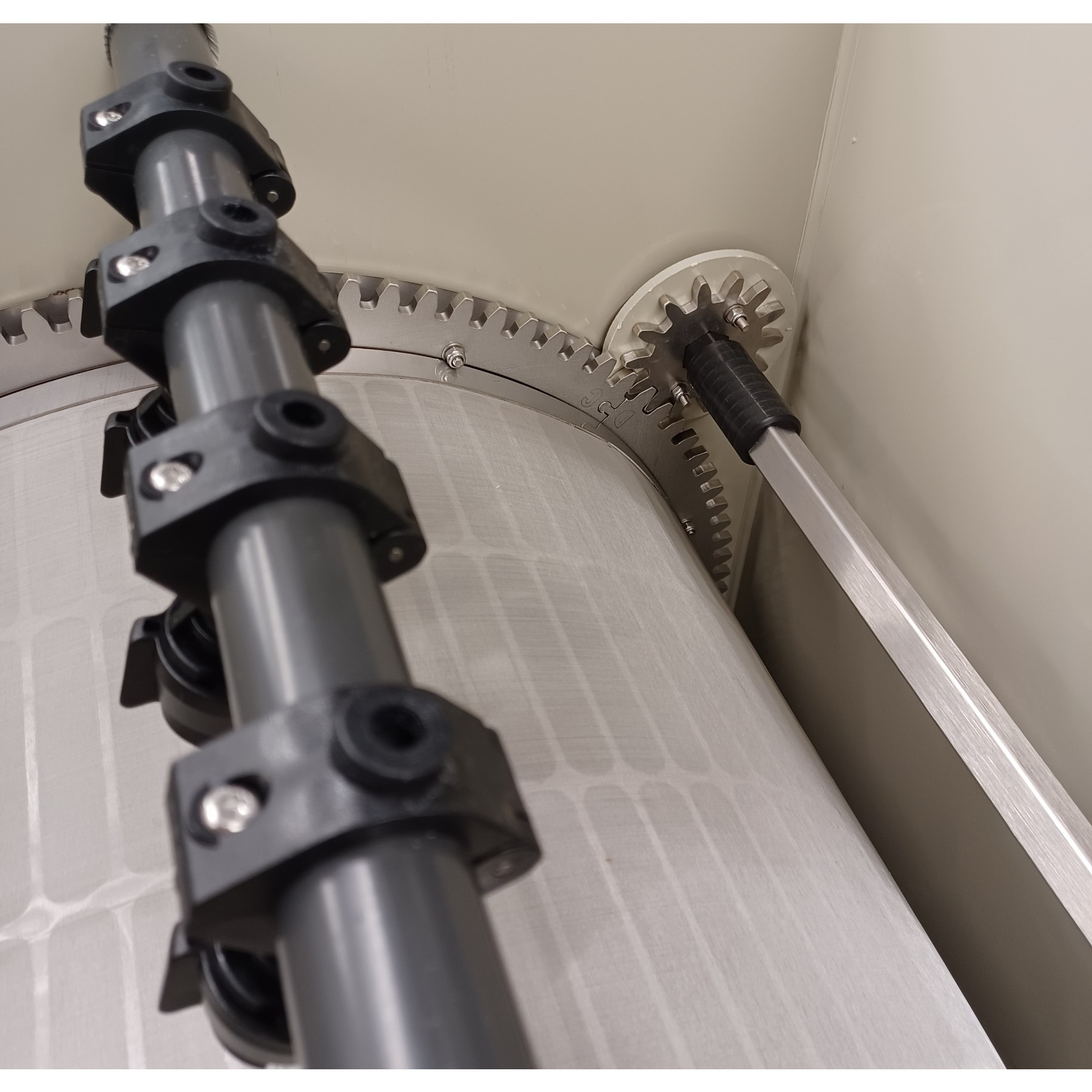

  • bd_stainless_gear_zoomed_in_with_box_drive_shaft_2023_web
  • bd_inside_waste_chute_image_2021_2
  • bd_300_combi_diagram_2

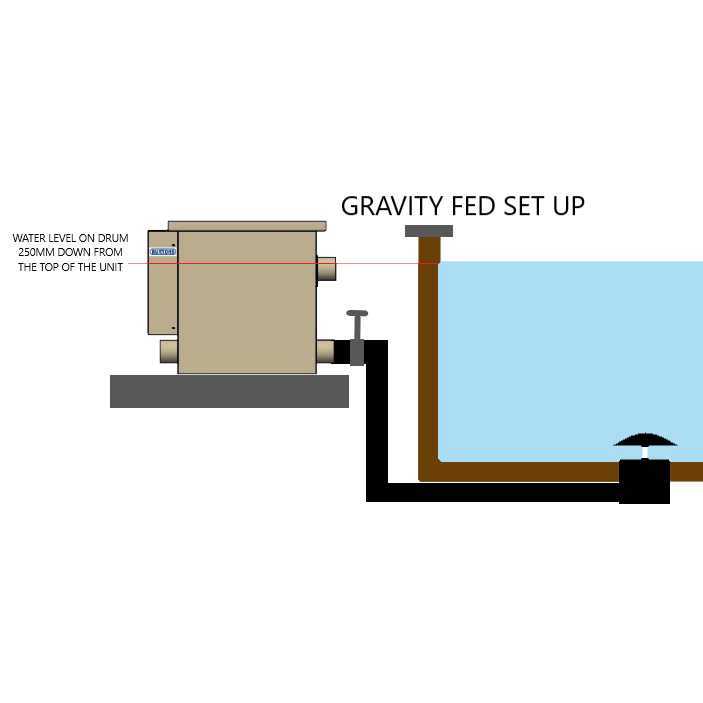

  • bd_drum_filter_gravity_fed_set_up_3
  • burtons_drum-uv_size_guide_1

Burtons BD 300 Combi Pond Drum Filter

£3,650.00 inc. VAT

Burtons BD 300 Combi Pond Drum Filter

It houses all the same technology as a normal BD 300 but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other biological Media that is preferred for example Jap-Mat or Ceramic Media. As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box which now comes complete with our socket panel as standard which means you can just simply plug in your UVs and pumps straight in to the sockets for easy installation. These drums feature 3 x 110mm inlets and 3 x 110mm outlets. Plus 2 x 110mm additional outlets before the bio section which are on each side of the unit. The BD 300 Combi can handle upto 35,000ltr per hour though the drum section. We would recommend taking no more than 20,000 ltrs from the bio section outlets, if you want more flow we have added outlets either side to pull the additional flow. Maximum flow rate 35,000ltr per hour for gravity fed systems, 25,000 ltr per hour for pump fed. 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

  • Now including our Socket Panel as standard
  • 60 micron screen
  • 35,000 ltr per hour flowrate though drum section for gravity fed systems, 25,000ltr for pump fed.
  • 3 x 110mm inlets
  • 3 x 110mm outlets, plus 2 x 110mm additional outlets before the bio section which are on each side of the unit.
  • 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
  • Low wattage wash pump included and pre fitted
  • Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
  • (WHL) 658 x 740 x 1480 (MM).
SKU: BA-BD-300-COMBO Category:

Description

Burtons BD 300 Combi Pond Drum Filter

It houses all the same technology as a normal BD 300 but has a built in Bio-Chamber suitable for up to 100lts of Fluidised Media or any other biological Media that is preferred for example Jap-Mat or Ceramic Media. As standard in the Burtons range, these drums come with a 60 micron screen, and a weather proof auto control box which now comes complete with our socket panel as standard which means you can just simply plug in your UVs and pumps straight in to the sockets for easy installation. These drums feature 3 x 110mm inlets and 3 x 110mm outlets. Plus 2 x 110mm additional outlets before the bio section which are on each side of the unit. The BD 300 Combi can handle upto 35,000ltr per hour though the drum section. We would recommend taking no more than 20,000 ltrs from the bio section outlets, if you want more flow we have added outlets either side to pull the additional flow. Maximum flow rate 35,000ltr per hour for gravity fed systems, 25,000 ltr per hour for pump fed. 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.

Description:

  • Now including our Socket Panel as standard
  • 60 micron screen
  • 35,000 ltr per hour flowrate though drum section for gravity fed systems, 25,000ltr for pump fed.
  • 3 x 110mm inlets
  • 3 x 110mm outlets, plus 2 x 110mm additional outlets before the bio section which are on each side of the unit.
  • 2 x 20-watt Uvs can be added. Our drums are all designed to have Uvs fitted inside the filter. As well as stopping green water Uvs inside the drum help keep the drum screen clean resulting in less cleaning cycles. If the correct size Uv is added there’s no need for additional Uvs to be fitted to your pond.
  • Low wattage wash pump included and pre fitted
  • Low energy consumption 1.3watts in standby mode and 150 watts when cleaning.
  • (WHL) 658 x 740 x 1480 (MM).
Technical Data:
SKU BA-BD-300-COMBO
Manufacturer Burtons
Product Dimensions (mm) 1480mm x 658mm x 740mm
Standard Guarantee period 2 Year
Flow Rate 35,000 Litres Per Hour though drum section
Number of Spray Tips 4
Inlets/Outlets 3 x 110mm Inlets, 3 x 110mm Outlets plus 2 x 110mm outlets before bio section
