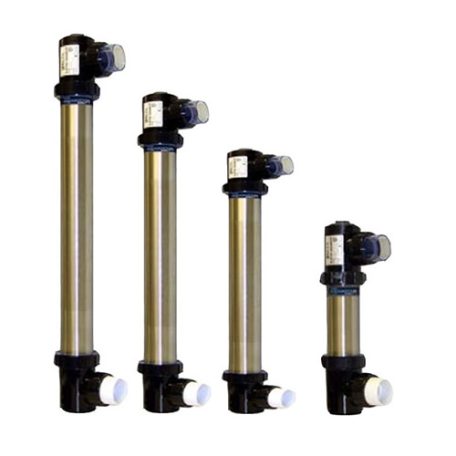

Delta UV EA Series
  • Delta UV EA Series

Delta UV EA Series

£468.99 – £864.99 inc. VAT

Delta UV EA Series

A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.

Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.

Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.

As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.

Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).



The UV-5 and UV-10 models contain a 3″ (076mm) Stainless Steel chamber, whilst the UV-4H10, UV-20, and UV-40 models each have a 4″ (100mm) Stainless Steel chamber. All models have 63mm solvent connections.

Delta UV EA Series Technical data

Type Pond Size Max Pressure Flow Rate UV-C Dose Dia UV Lamps
Delta UV EA-3H-5 Up to 1500 gallons 3 Bar 2400 lph 30mJ/cm2 75 mm 1 x 35 watt



Type Pond Size Max Pressure Flow Rate UV-C Dose Dia UV Lamps
Delta UV EA-4H-15 Up to 4500 gallons 3 Bar 7600 lph 30mJ/cm2 100 mm 1 x 55 watt
Delta UV EA-4H-20 Up to 6000 gallons 3 Bar 9500 lph 30mJ/cm2 100 mm 1 x 90 watt
Delta UV EA-4H-40 Up to 7000 gallons 3 Bar 10700 lph 30mJ/cm2 100 mm 1 x 110 watt
Clear selection
SKU: N/A Category:

Description

Delta UV EA Series

A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.

Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.

Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.

As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.

Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).



Delta UV EA Series Technical data

Type Pond Size Max Pressure Flow Rate UV-C Dose Dia UV Lamps
Delta UV EA-3H-5 Up to 1500 gallons 3 Bar 2400 lph 30mJ/cm2 75 mm 1 x 35 watt



Type Pond Size Max Pressure Flow Rate UV-C Dose Dia UV Lamps
Delta UV EA-4H-15 Up to 4500 gallons 3 Bar 7600 lph 30mJ/cm2 100 mm 1 x 55 watt
Delta UV EA-4H-20 Up to 6000 gallons 3 Bar 9500 lph 30mJ/cm2 100 mm 1 x 90 watt
Delta UV EA-4H-40 Up to 7000 gallons 3 Bar 10700 lph 30mJ/cm2 100 mm 1 x 110 watt

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Delta UV.pdf

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 12 kg
Dimensions 70 × 30 × 20 cm
volume and Wattage

1500galls/35w, 4500galls/55w, 6000galls/90w, 7000galls/110w
