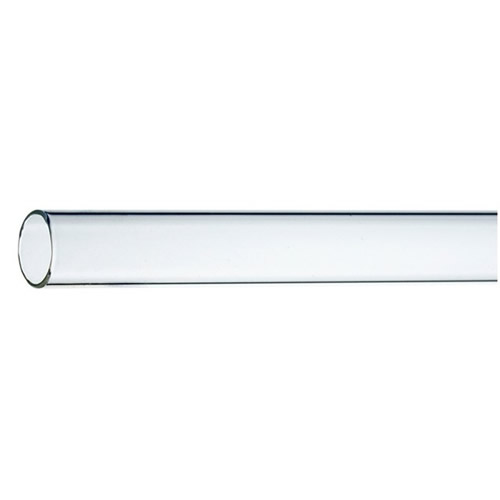

Delta UV EA Series Quartz Sleeve Replacements
A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.
Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.
Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.
As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.
Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).
Delta UV EA Series Technical data
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-3H-5 | Up to 1500 gallons | 3 Bar | 2400 lph | 30mJ/cm2 | 75 mm | 1 x 35 watt |
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-4H-15 | Up to 4500 gallons | 3 Bar | 7600 lph | 30mJ/cm2 | 100 mm | 1 x 55 watt |
| Delta UV EA-4H-20 | Up to 6000 gallons | 3 Bar | 9500 lph | 30mJ/cm2 | 100 mm | 1 x 90 watt |
| Delta UV EA-4H-40 | Up to 7000 gallons | 3 Bar | 10700 lph | 30mJ/cm2 | 100 mm | 1 x 110 watt |
Delta UV EA Series Quartz Sleeve Replacements and not the actual units
