Draco Drum C30/340 Combi Unit

£2,800.00 – £3,073.00 inc. VAT

Draco Drum C30/340 Combi Unit

There are 3 different sized combination filters. These all have the drum and the biological chamber built into the same unit. Drawing on the experience and knowledge from our commercial development and collaborations we have transferred it to our range of smaller filter products to aid the modern water keeper. The engineering and understanding of how filtration works was developed to produce the Combi range of filters. Fully curved base to eliminate corners that allow bacterial and debris build up. Because of the clever design concept, the full length of the units (including under the drum unit), are utilised within the bio area. Thereby allowing the system to provide the maximum capacity to floor space without losing it to unutilised volume.

Features:

  • Full length (utilises space under drum), diverted and downward flow, curve base biological chamber
  • Sloped and slotted base to drum chamber, to eliminate bio media clogging and particle buildup in this area
  • Split screen for easy access to the middle of the drum and easy bypassing of the unit
  • Quick release/change UV Resistant DPM Drum Seal
  • External short shaft, rim drive motor
  • Solid state water level sensors

Technical Data:

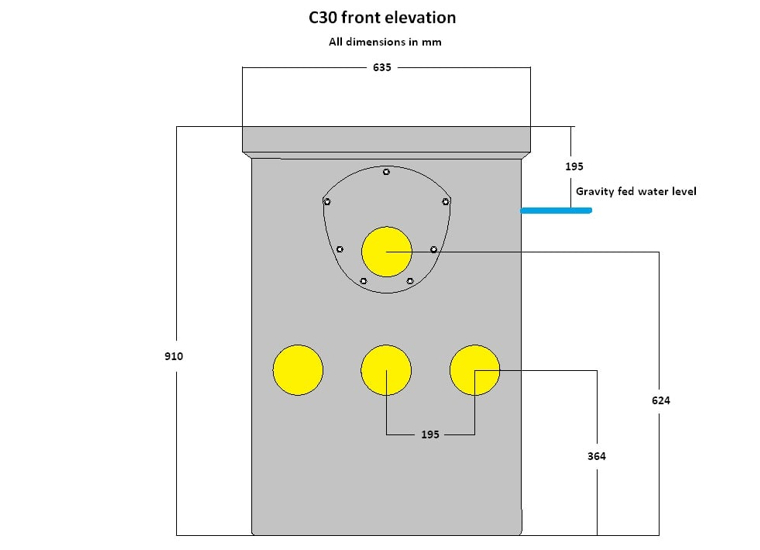

  • Dimensions (Including inlet/outlet pipes) – 635mm wide x 1160mm long x 905mm high
  • Height above water level – (tba shortly)
  • Capacity – 6,600 Imp gallons per hour / 30,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 5,000 UK gallons
  • Bio area – 340 litres @ a fill volume of 66% equates to 225 litres of bio media

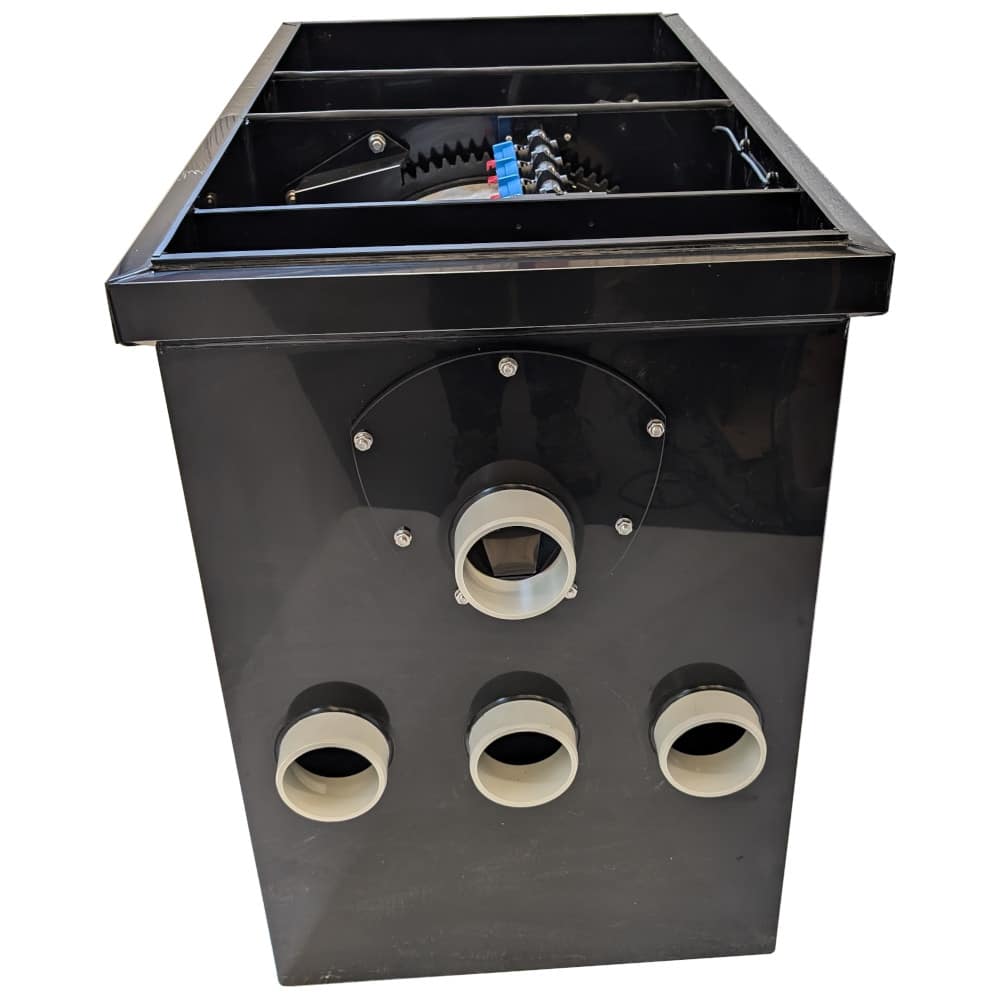

  • 3 X 110mm inlets and twin 110mm outlets
Clear selection
SKU: N/A Category:

Description

Draco Drum C30/340 Combi Unit

There are 3 different sized combination filters. These all have the drum and the biological chamber built into the same unit. Drawing on the experience and knowledge from our commercial development and collaborations we have transferred it to our range of smaller filter products to aid the modern water keeper. The engineering and understanding of how filtration works was developed to produce the Combi range of filters. Fully curved base to eliminate corners that allow bacterial and debris build up. Because of the clever design concept, the full length of the units (including under the drum unit), are utilised within the bio area. Thereby allowing the system to provide the maximum capacity to floor space without losing it to unutilised volume.

  • The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. Option to utilise a forced wash at either 45 or 99 minutes (This is triggered only if an automatic wash has not completed within the specified time). It also has 2 leads – one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs. We didn’t think we could make it any simpler than that.
  • Fully sealed nylon bodied water valve.
  • Low voltage so that only 12 volts DC is anywhere near your pond water.
  • Designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required). On standby the unit can use less than 12 watts and in full wash mode, use 35 watts. It is entirely possible to run it off a car battery for prolonged periods of time.
  • 77 micron stainless steel screen.
  • 2 pin ancillary out from the control box facilitating you being able to utilise to your own requirements.
  • Extra deep waste tray with increased slope

Features:

  • Full length (utilises space under drum), diverted and downward flow, curve base biological chamber
  • Sloped and slotted base to drum chamber, to eliminate bio media clogging and particle buildup in this area
  • Split screen for easy access to the middle of the drum and easy bypassing of the unit
  • Quick release/change UV Resistant DPM Drum Seal
  • External short shaft, rim drive motor
  • Solid state water level sensors

Technical Data:

  • Dimensions (Including inlet/outlet pipes) – 635mm wide x 1160mm long x 905mm high
  • Height above water level – (tba shortly)
  • Capacity – 6,600 Imp gallons per hour / 30,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 5,000 UK gallons
  • Bio area – 340 litres @ a fill volume of 66% equates to 225 litres of bio media
  • 3 X 110mm inlets and twin 110mm outlets

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight N/A
Dimensions N/A
Model

Pump fed, Gravity
Wash Type

Standard solenoid valve +£0, Wash Pump +£273
