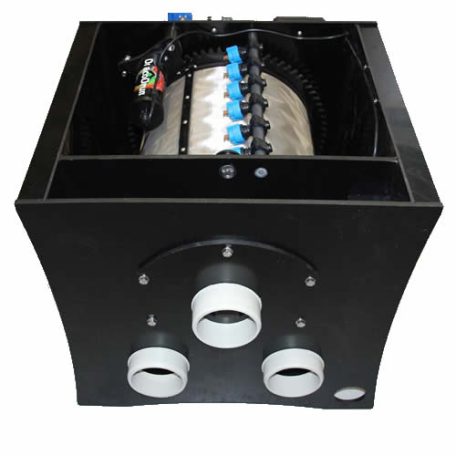

Draco drum solum 25

(2 customer reviews)

£1,700.00 inc. VAT

Draco drum solum 25 Features

  • Dimensions – 610mm wide x 700mm long x 581mm depth
  • Height above water level – 180mm
  • Capacity – 5,500 Imp. Gallons per hour / 25,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 10,000 UK gallons
  • Twin 4” inlet and outlets
  • Easily removable Bypass plates

The engineering and understanding of how filtration works was developed to produce Draco drum solum 25. As with the ‘Drop-in’  Draco drum range these have some unique features to help eliminate deadspots that are usually found in standalones.

The Draco drum solum 25 are pretty enough for you not to want to hide them away.

The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. It also has 2 leads – one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs. We didn’t think we could make it any simpler than that.

Low voltage, sealed water valves and drive units utilising an extremely low geared direct drive system mean that only 12 volts is anywhere near your pond water.

The Draco drum solum 25 was designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required) . On standby the unit can use less than 12 watts and in full wash mode, use 35 watts. It is entirely possible to run it off a car battery for prolonged periods of time.

This product has been discontinued and replaced by the s30

Out of stock

SKU: solum25 Category:

Description

Draco drum solum 25 Features

  • Dimensions – 610mm wide x 700mm long x 581mm depth
  • Height above water level – 180mm
  • Capacity – 5,500 Imp. Gallons per hour / 25,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 10,000 UK gallons
  • Twin 4” inlet and outlets
  • Easily removable Bypass plates

The engineering and understanding of how filtration works was developed to produce Draco drum solum 25. As with the ‘Drop-in’  Draco drum range these have some unique features to help eliminate deadspots that are usually found in standalones.

The Draco drum solum 25 are pretty enough for you not to want to hide them away.

The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. It also has 2 leads – one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs. We didn’t think we could make it any simpler than that.

Low voltage, sealed water valves and drive units utilising an extremely low geared direct drive system mean that only 12 volts is anywhere near your pond water.

The Draco drum solum 25 was designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required) . On standby the unit can use less than 12 watts and in full wash mode, use 35 watts. It is entirely possible to run it off a car battery for prolonged periods of time.



This product has been discontinued and replaced by the s30





2 reviews for Draco drum solum 25

  1. sam hepworth (verified owner) –

    Excellent product

  2. Nicholas Grimmitt (verified owner) –

    Best decision I ever made. Water clarity is perfect

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 20 kg
Dimensions 60 × 60 × 60 cm
