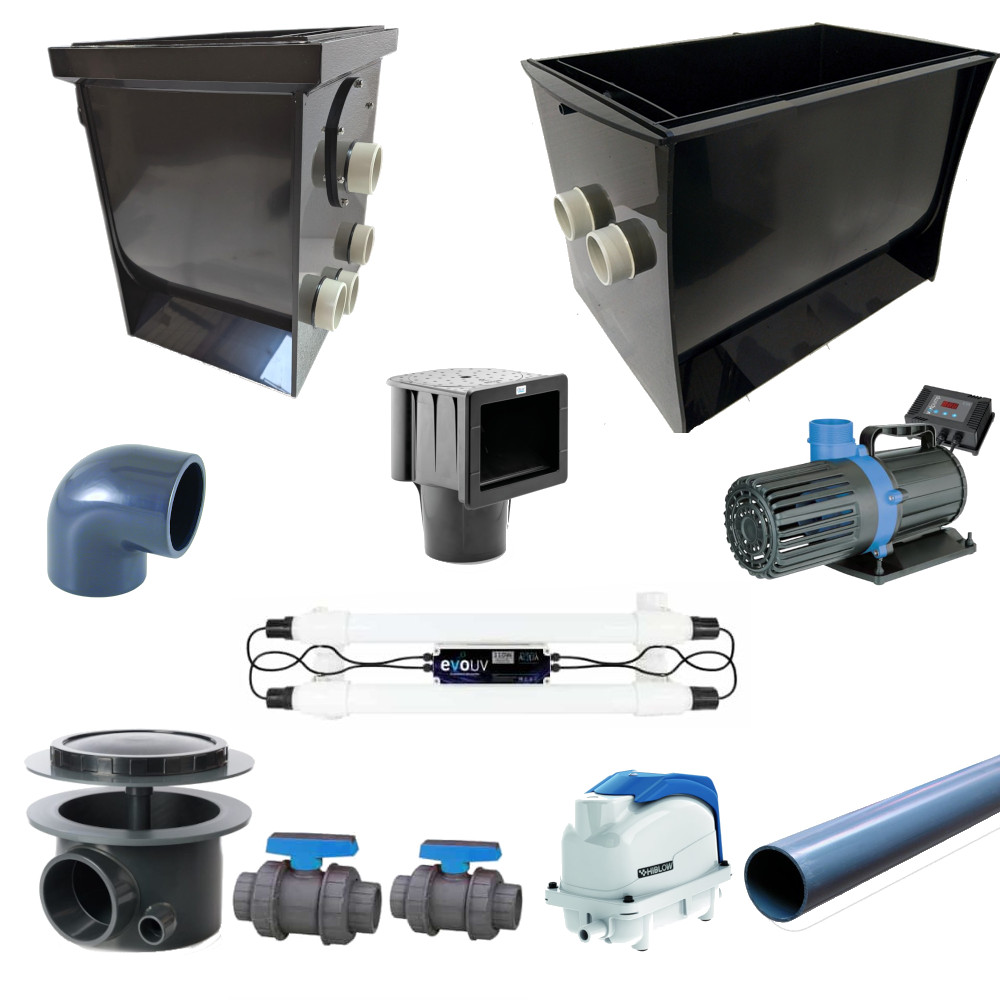

Draco S50 And Large Bio Drum Filter Kit

Oase ProfiClear Premium XL Drum Filter – Gravity EGC

Based on the highly successful OASE ProfiClear Premium L Drum Filter technology, the new ProfiClear XL pond filter system can be used to filter ponds up to 530,000 Litres (or 100,000 Litre Koi Ponds). The automated Drum Module has been oversized to remove particles and pollutants even in highly sedimented ponds. The XL Drum module is offered in both pump fed and gravity fed guises.

The Gravity Fed XL Filter Drum features 7 inlets for connection of up to 2 x Bitron Premium UVCs, Wall Skimmers or Bottom Drains. The 2 x 180mm outlets are designed for direct connection to the XL Moving Bed Module and/or Gravity Discharge Module. The Gravity XL Drum Filter Module is supplied with intelligent filter-mounted controller for automatic cleaning of the 16 individual drum filter sieves. The filter sieves will screen out debris down to 60 microns but can be changed to optional 30 micron or 150 micron sieves depending on the level of filtration required. The ProfiClear Gravity Fed XL Drum Filter can accept flow rates from 25,000 Litres/Hour up to 66,000 Litres/Hour.

Features:

• Compact and self-cleaning drum filter units available in both pump and gravity fed versions
• Premium drum filter and moving bed biological filter
• High separating capacity through deep bed filtration down to 60 microns
• New media with significantly enlarged surface area for effective decomposition of pollutants
• New pump chamber for combination with Bitron UV Clarifiers

Oase ProfiClear Premium XL Drum Filter – Pump Fed EGC

Based on the highly successful OASE ProfiClear Premium L Drum Filter technology, the new ProfiClear XL pond filter system can be used to filter ponds up to 530,000 Litres (or 100,000 Litre Koi Ponds). The automated Drum Module has been oversized to remove particles and pollutants even in highly sedimented ponds. The XL Drum module is offered in both pump fed and gravity fed guises.

The Pump Fed XL Filter Drum features 5 water inlets for connection to submersed AquaMax Eco Expert pumps and the new Bitron Premium Ultraviolet Clarifiers. The Pump Fed XL Drum Filter Module is supplied with intelligent filter-mounted controller for automatic cleaning of the 16 individual drum filter sieves. The filter sieves will screen out debris down to 60 microns but can be changed to optional 30 micron or 150 micron sieves depending on the level of filtration required. The Pump Fed XL drum filter can accept flow rates from 25,000 Litres/Hour up to 50,000 Litres/Hour.

Features:

• Compact and self-cleaning drum filter units available in both pump and gravity fed versions
• Premium drum filter and moving bed biological filter
• High separating capacity through deep bed filtration down to 60 microns
• New media with significantly enlarged surface area for effective decomposition of pollutants
• New pump chamber for combination with Bitron UV Clarifiers
