Description

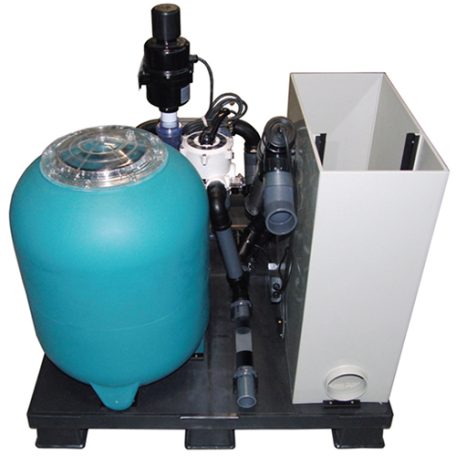

EconoBead Complete System
Unique to the UK market, a complete plug and play filter installation consisting of Econobead EB 50 or Econobead EB 60 with by pass, Midisieve, 40 watt power UV T5 and Forza 15000 pump.
EconoBead Complete System is installed on a polymer pallet. This only needs 3 connections to the pond system.
- Inlet from Bottom Drain
- Return to Pond
- Waste Outlet
Pallet size is 100 cm x 120 cm x 85 cm High.
Econobead EB 50 is suited for ponds up to 20000 ltrs (4400 gallons)
Econobead EB 60 is suited for ponds up to 30000 ltrs (6600 gallons)
The EconoBead Bead filters are the economical answer to imitation filters, made by the Beadfilter experts!
The EconoBead Beadfilters have a strong quality polypropylene vessel and are standard equipped with:
- A drain valve to remove the sludge from the bottom of the Econobead
- A 6 way valve
- A very reliable blower
- The blower is also equipped with a silencer.
The UltraSieve Midi is a Gravity Fed pre-filter to filter waste solids from the water via a bottom drain or through a skimmer. This technique is based upon the very successful Ultrasieve III, which incorporates a sieve-bend. A sieve-bend consists of hundreds of sharp stainless steel profile wires with very small slot openings where the water can go through but the solids stay on the sieve bend. In practice it works as follows:
The water enters the Ultrasieve Midi via the Ultraskim or bottom drain and passes through the “auto-adjustable” dam and will go upwards and fall over the weir on to the Stainless Steel sieve-bend.
