£18.99 – £21.99 inc. VAT

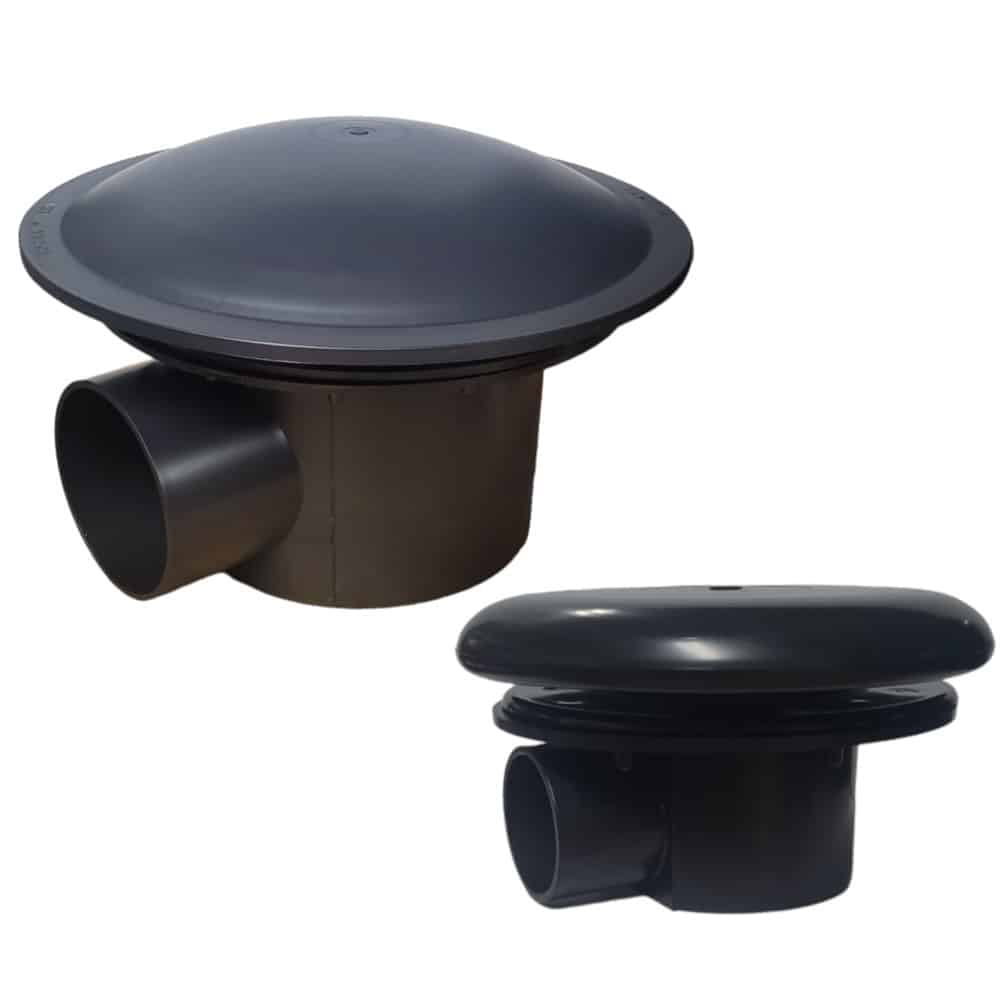

Economy Bottom Drains
All Koi ponds should be fitted with bottom drains, and we strongly recommend this.

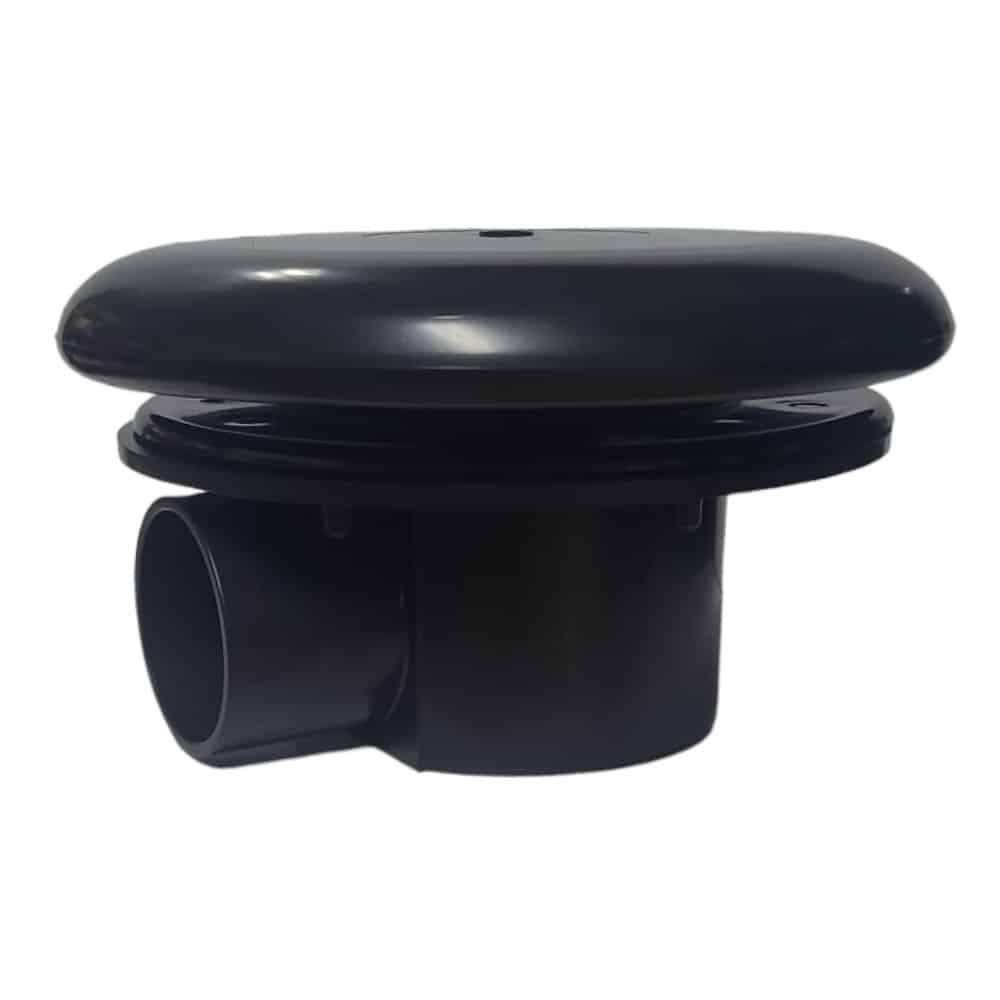

These economy bottom drains are well made and are suited for use with 110mm or 50mm waste pipe.
We cannot express the importance of installing a bottom drain when planning and building your pond and these drains provide a cost effective way of doing this.
*NOTE: It cannot be used with pressure pipe without an adapter.
Economy Bottom Drains
All Koi ponds should be fitted with bottom drains, and we strongly recommend this.
These economy bottom drains are well made and are suited for use with 110mm or 50mm waste pipe.
We cannot express the importance of installing a bottom drain when planning and building your pond and these drains provide a cost effective way of doing this.
*NOTE: It cannot be used with pressure pipe without an adapter.
Only logged in customers who have purchased this product may leave a review.
Hello yes they come with a flange and the fixings
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| size | 50mm, 110 mm |
Spindrifter Liner Flange Kits
The Spindrifter liner Flange Kit allows you to use the drain with a liner.
Comes complete with fixings.
4″ Flange
3″ Flange
2″ Flange
Available for the 4″, 3″ and 2″ Spindrifter Drains

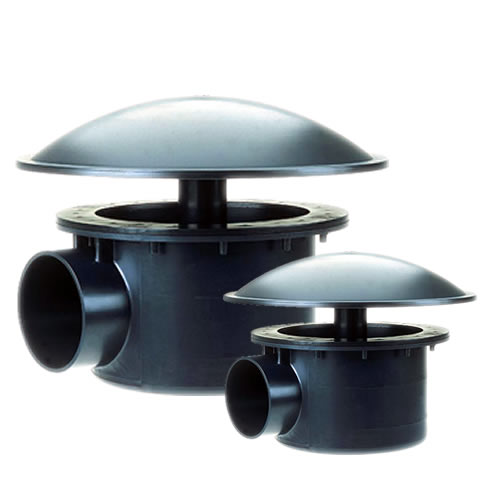

110mm Economy Bottom Drain Kit
At Cotswold koi We understand that sometimes it can be confusing as to knowing what equipment you require to install a bottom drain, So we have put together this kit which will make your life a 100% easier. We find most filter bays are within a 3,6 or 9 meter distance from the bottom drain location so we have grouped together all the products that you require to install a bottom drain effectively without the headache. You can choose from either 1, 2 or 3 lengths of the required pipework to enable you to achieve most drainage Requirements. Should any further pipe work or fittings be required they can also be added via the pipework section on the website.
3mtr 110mm Economy Bottom Drain Kit
6mtr 110mm Economy Bottom Drain Kit
9mtr 110mm Economy Bottom Drain Kit
Economy Bottom Drains With Ring Aerator
All Koi ponds should be fitted with bottom drains, and we strongly recommend this.
These Economy Bottom Drains With Ring Aerator are well made and are suited for use with 110mm or 50mm waste pipe. The dome is removable with a large integral surface mounted air ring diffuser around the outer edge
We cannot express the importance of installing a bottom drain when planning and building your pond and these drains provide a cost effective way of doing this.
Available in 50mm and 110mm .
The Bottom Drain comes complete with air tube
*NOTE: It cannot be used with pressure pipe.
Aquadrift 4″ Bottom Drain
The Aquadrift 4″ Bottom Drain is perfect for all gravity fed installations.
Precision machine cut to the highest standard, a bottom drain you can rely on.
1″ separate pressure pipe air connection allows air to enter the drain independently from the water pipe outlet.
The membrane and backing plate on the Aquadrift bottom drain fits into a recess in the specially manufactured rubber dome . The recess in the Aquadrift bottom drain prevents the membrane from becoming detached. The complete assembly is secured to the Aquadrift bottom drain by means of a threaded stem, which also provides the air inlet.
Suitable for 4″ or 110mm pipework. Can be used with standard waste pipe with suitable connectors.
Recommended maximum air pressure 120ltrs
Can be used with no air hose to the unit, simply use the appropriate connector after your air pump
Draco Retro Fit Bottom Drain
It is said that you can not beat a bottom drain system. If you have a pond that does not have a bottom drain but wish you had installed one, or do you have a bottom drain and want to install another here is the answer.
Allows you to retrofit a bottom drain into your pond and change the system from pump fed to a true gravity fed filter system if filter is lowed to height of pond.
Comes complete with everything that is required to install
3” internal smooth wall pipe (3m standard additional can be purchased)
14 inch long through wall pipe
Angled inlet bottom drain unit
10ft pipe = 2.5cm head drop @ 2200 UK gallons per hour / 10000 litres per hour
15ft pipe = 2.5cm head drop @ 1900 UK gallons per hour / 8600 litres per hour
*please note 3″ valve not included
4 Inch Socket To 110mm Plain Male Converter
The 4 Inch Socket To 110mm Plain Male Converter is designed to fit inside a bottom drain to convert the standard 4″ opening to 110mm.
At Cotswold Koi we understand The importance of pipe work, mistakes made in pipework are one of the most common we come across and can be very costly and hard to change at a later date.
There are three main types of pipe work used on koi ponds:
The use of anything other than pressure pipe and fittings for both gravity and pressure lines is risky, the last thing you want is your bottom drain line leaking after all your hard work building your pond and is only a cost saving exercise, The added security and peace of mind that Pressure Pipe brings is well worth the extra cost. Unfortunately the use of pressure pipe and fittings in the past has simply been too expensive for the majority of Koi keepers, despite it being the preferred choice. here at Cotswold Koi we are looking to bring you a full range of pipe fittings for every occasion.
we are happy to provide assistance, should you need it, please Contact Us if you need assistance in choosing the right pipe work for your project.
Tommy Bottom Drains
These Tommy Bottom Drains are perfect for those using mid water feeds to the filter systems and are worried about pulling fish in to the filter, pumps etc.
The Tommy Drain has its outlet at the Bottom of the Drain instead of the side of the drain like typical bottom drains.
The Tommy Drain has a removable lid with stainless Steel screws and a flange ring for fitting to liner or concrete ponds.
The Tommy Drain can still be used mounted in the pond base if required, such as for a quarantine system or where the outlet is best suited at the bottom of the drain instead of the side.
The Tommy Bottom Drains are suitable for outlets from the side or bottom of your pond or filter.
Available in the following sizes: 1.5″, 2″, 3″ and the most popular 110 mm.
Spindrifter Aerated Bottom Drain Twin Inlets
The Spindrifter bottom drain is known worldwide for its quality and design. This unit completely replaces the “Standard Bottom Drain.”
The most noticeable feature is the extra connection in the sump of the drain. This allows the air supply hose to enter the sump independently of the water outlet pipe, thus eliminating the possibility of restriction to the water flow and somewhere else for blanket weed to attach. The membrane and backing plate fit into a recess in the specially manufactured dome (provided). The recess in the dome prevents the membrane from becoming detached. The complete assembly is secured to the bottom drain by means of stem, which also provides the air inlet. Most water pipe sizes can be accommodated, the customer to specify. The air inlet is via a nickel-plated connector.
