Home » Shop » Pond UV Lights » Elecro Single (55W) HR – High Reflective UVC

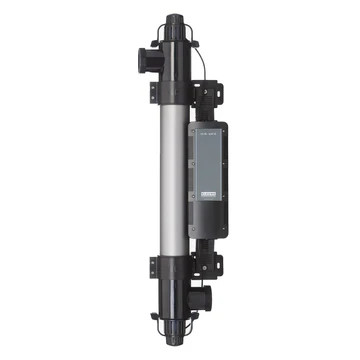

Elecro Single (55W) HR – High Reflective UVC
  • Elecro Single (55W) HR – High Reflective UVC

Elecro Single (55W) HR – High Reflective UVC

£451.99 inc. VAT

Elecro Single (55W) HR – High Reflective UVC

The Elecro Single (55W) HR – High Reflective UVC has super reflective properties which optimises the UV-C radiation and dramatically increase the performance. The inside surface casing is extremely repellent and therefore self-cleaning. Intelligent electronics indicate when the lamps are not producing sufficient UV-C and need to be changed. Ensuring your unit is always performing optimally.

  • Highest UV reflective index on the market equating to supreme efficiency
  • E-PTFE reach chamber is extremely repellent, maintaining UV reflectivity
  • Up to 95% reflection amplifying the exposure of microorganisms to UV
  • No harmful gases or by-products produced
  • Neutralises bacteria, viruses, algae and Fungai that traditional chemicals cannot
  • Optional smart peristaltic dosing system for chlorine/hydrogen peroxide (Pro model only)
  • Powerful sterilisation and eliminates the smell of chlorine
  • Average lamp life expectancy: 2 years
  • Equipped with intelligent lamp life indicator
  • Sea and salt chlorinated water compatible

Available in three sizes: Mini (30m³), Single (55m³) and Double (110m³)

SKU: UV811 Category:

Description

Elecro Single (55W) HR – High Reflective UVC

The Elecro Single (55W) HR – High Reflective UVC has super reflective properties which optimises the UV-C radiation and dramatically increase the performance. The inside surface casing is extremely repellent and therefore self-cleaning. Intelligent electronics indicate when the lamps are not producing sufficient UV-C and need to be changed. Ensuring your unit is always performing optimally.

  • Highest UV reflective index on the market equating to supreme efficiency
  • E-PTFE reach chamber is extremely repellent, maintaining UV reflectivity
  • Up to 95% reflection amplifying the exposure of microorganisms to UV
  • No harmful gases or by-products produced
  • Neutralises bacteria, viruses, algae and Fungai that traditional chemicals cannot
  • Optional smart peristaltic dosing system for chlorine/hydrogen peroxide (Pro model only)
  • Powerful sterilisation and eliminates the smell of chlorine
  • Average lamp life expectancy: 2 years
  • Equipped with intelligent lamp life indicator
  • Sea and salt chlorinated water compatible

Available in three sizes: Mini (30m³), Single (55m³) and Double (110m³)

Specifications:

  • Power Supply: Single phase 100V~240V
  • Min. Flow Rate: 1.5m³/h
  • Max. Flow Rate: Mini: 12,000 litres per hour; 12m³/h, Single: 16,000 litres per hour; 16m³/h, Double: 32,000 litres per hour; 32m³/h
  • Max. Pool Size: Mini: 30,000 litres; 30m³, Single: 55,000 litres; 55m³, Double: 110,000 litres; 110m³
  • Max. Power Consumption: Mini 40W, Single 64W, Double 128W
  • Lamp: Low pressure/high output
  • Lamp Life: 9,000 hours
  • Dosing Rate: Exceeds the equivalent of 30mj/cm² at max. flow rate
  • Ingress Protection Rating: IP64
  • Frequency: 50/60 Hz
  • Working Pressure: 3 Bar maximum
  • Water Connections: 2″ / 63mm stepped ABS unions + reducers 1½” / 50mm
  • Salt Water: 100% chlorinated salt and sea water safe
  • Mounting: Vertical or horizontal wall mounting
  • Oxidisation Process: UV

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 6 kg
Dimensions 60 × 50 × 30 cm
