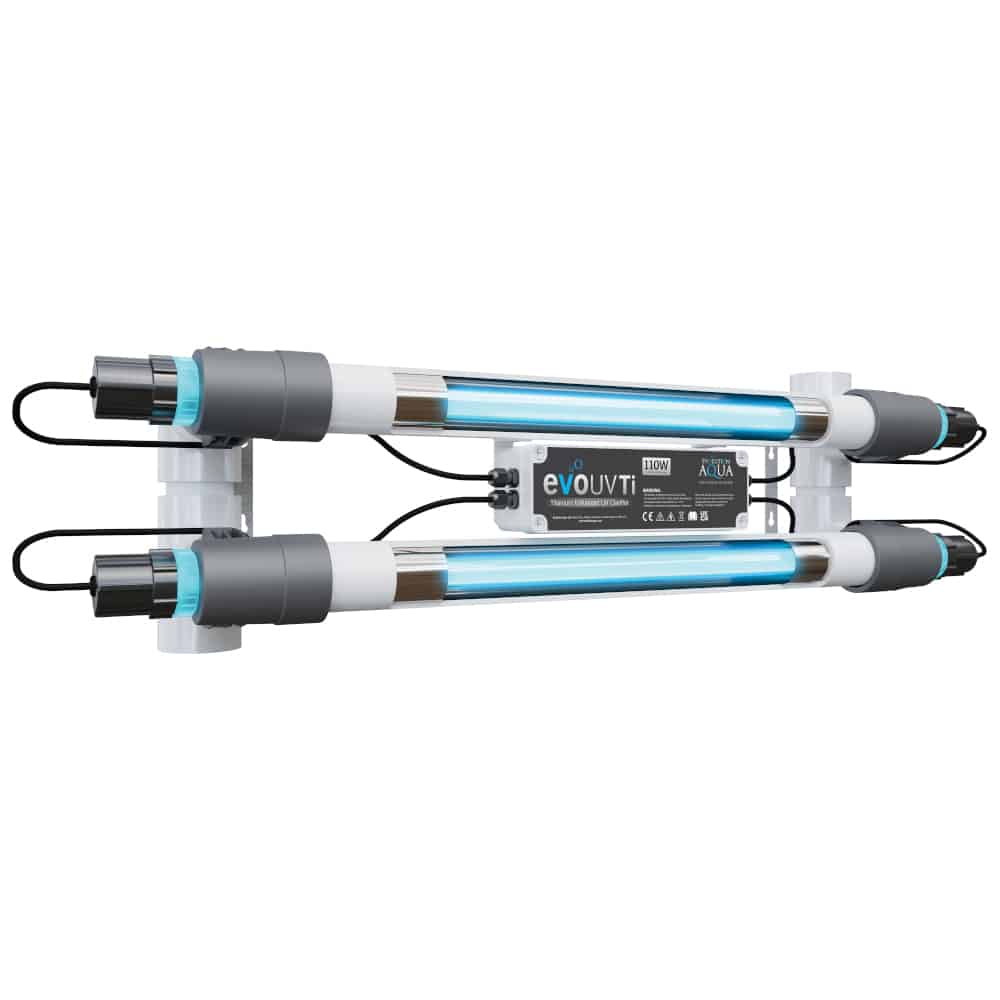

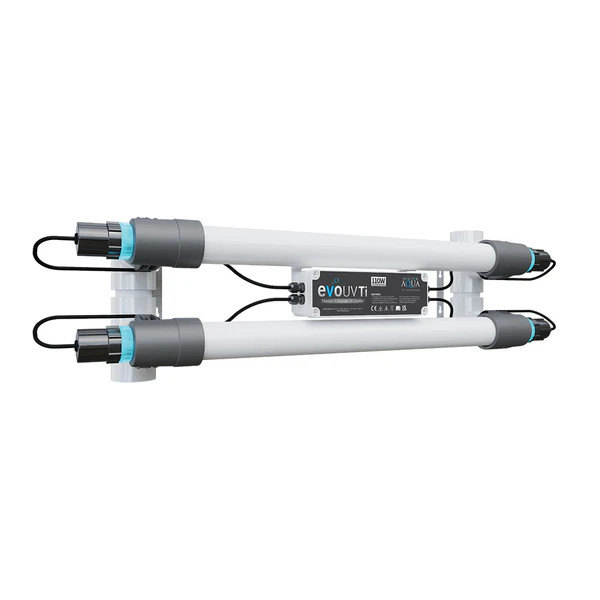

Evolution Aqua Evo 110w Ti Titanium UV

Oase Bitron Eco 180 W UVC

The revolutionary UVC clarifier Bitron Eco with 180 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child’s play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 1/2 “and 2” connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a guarantee of 2 years + 1 year requirement guarantee.

• Maximum efficiency, thanks to perfect combination of flow rate and irradiation intensity
• Reduced bulb costs thanks to 50% longer service life (12,000 h)
• Energy costs reduced up to 50% with the same cleaning capacity*

Oase Bitron Premium 180 W UVC

• Powerful, efficient UVC clarifier
• Extremely effective sterilisation thanks to well thought-out flow optimisation
• Extremely easy and flexible installation before or after the filter system

Oase Bitron Premium 180 W UVC Product characteristics:

• 100% protection against eye damage
• Energy efficient thanks to electronic ballast
• Exceptionally effective sterilisation thanks to the long retention time of the water in the Bitron
• Flow-optimised reactor design ensures direct and virtually loss-free UV radiation
• High-quality V4A stainless steel housing for stability and good reflection rates
• Extremely easy installation with stainless steel connection elements
• Flexible connection upstream or downstream of the ProfiClear filter system — as well as for other gravity-fed applications
• In the event of pond enlargements or an increase in fish stock, extension with additional Bitron Premium UVC devices is possible at any time
• Visual function check
• Horizontal or vertical setup possible
• Clear water guarantee when used in conjunction with OASE ProfiClear filters
• Depending on requirements, the Bitron Premium 120 W and 180 W lamps can be switched on individually

• Suitable for ponds up to 280.0 m3

Easy installation
Thanks to stainless steel connection elements.

High quality V4A stainless steel housing
Provides stability and good reflection rates. Can be used even with increased salt content (dry setup).

Flexible installation
Before or after the filter system.

TMC Pro Pond UV 110

The TMC Pro Pond UV 110 watt is designed for large ponds, incorporating Ultrabead, Aquadyne, Bubblebead, Polygeyser and Nexus Eazy 300 filtration systems and can be used for pressurised systems up to 56psi.

The Pro Pond UV 110 watt has 2″ solvent weld inlet and outlet ports and may be connected to either flexible or rigid plumbing using the appropriate plumbing fittings (not supplied). To ensure unrestricted flow, it is recommended that the TMC Pro-Pond 110 watt is not plumbed in with anything less than 11/2″ pipework.

Suitable for ponds up to 16,000 imp gallons/72,000 litres (dependent on stocking density and the amount of sunlight the pond is subject to) with a max flow rate of 8000 imp gallons/36,000 litres per hour.

The TMC Pro Pond UV 110 watt has two individually chambered lamps for optimum efficiency and contact time.

The TMC Pro Pond UV 110 watt uses fused quartz glass sleeves which ensure that germicidal lamps are able to reach their optimum ‘burn temperature’ where the highest amount of UVc radiation is emitted. Also facilitates simple lamp replacement by keeping lamp separate from the pond water.

TMC Pro-Pond UV 110 watt features:

• Supplied complete with 5m cable and 4 wall mounting pipe clips.
• 930 mm long x 320 mm wide x 212mm high. Weight = 13.2kg.

Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.

Oase Bitron Eco 120 W UVC

The revolutionary UVC clarifier Bitron Eco with 120 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child’s play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 1/2 “and 2” connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a guarantee of 2 years + 1 year requirement guarantee.

• Maximum efficiency, thanks to perfect combination of flow rate and irradiation intensity
• Reduced bulb costs thanks to 50% longer service life (12,000 h)
• Energy costs reduced up to 50% with the same cleaning capacity*
