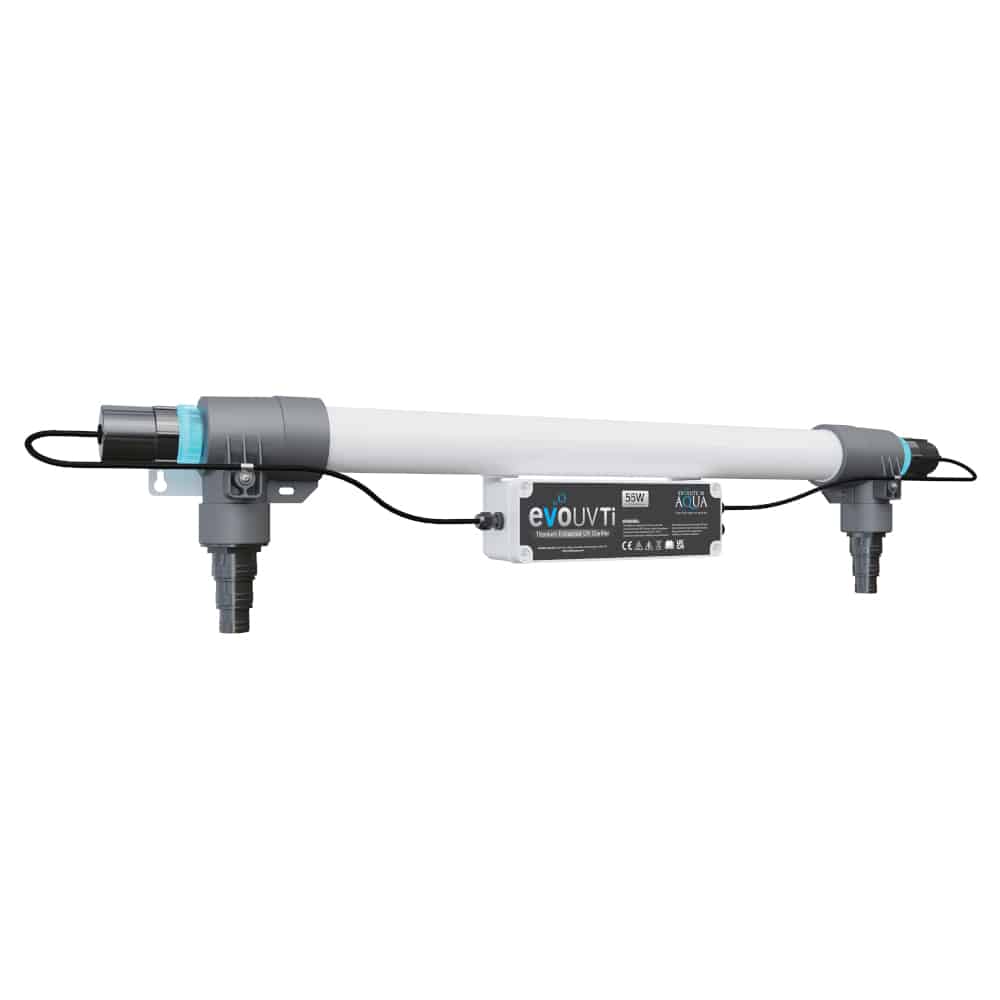

Evolution Aqua Evo 55w Ti Titanium UV

T5 Submersible 40W UVC

Submersible UV-C lamps have a big advantage compared to conventional UV-C units: no pressure loss.

Benefits

• These lamps can be used in filter tanks so the water can pass without any resistance/ pressure loss.
• The plastic end of the lamp has a 32mm diameter so you can use 32mm pipe clips to mount the lamp in a tank.
• A special tank connector is available for direct installation in i.e. filters.
  Note:
• This product is only intended for professional use.
• It should be installed in a professional application or assembled with other appliances.
• Before using this product the installer/user must take care the product complies to the latest European standards for UV-C units.
• 40W Immersion UV-C
• Quartz sleeve length – 705mm
• Ballast IP Rating – IP65

Oase Bitron Eco 120 W UVC

The revolutionary UVC clarifier Bitron Eco with 120 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child’s play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 1/2 “and 2” connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a guarantee of 2 years + 1 year requirement guarantee.

• Maximum efficiency, thanks to perfect combination of flow rate and irradiation intensity
• Reduced bulb costs thanks to 50% longer service life (12,000 h)
• Energy costs reduced up to 50% with the same cleaning capacity*

Yamitsu Algae Master Pond UV Clarifier 25W

Yamitsu algae master uv’s are made from UV stabilised materials to ensure a longer life and incorporate turbulators to enhance the unit’s performance. Large inlet and exhaust ports make the algae master uv suitable for a wide range of pond uv applications. It is recommended that the algae master uv should be installed using solid solvent weld pipe.

However, all algae master uv’s come complete with free (glue in) hosetails enabling them to be connected to ½”, ¾”, 1″, 1¼” and 1½” flexible pipe. Algae master uv’s will also fit most popular 1½” household solvent weld waste and pressure pipes.

Yamitsu Algae Master Pond UV Clarifier 25w Installation

If you have a severe algae problem you should effect a partial water change before starting the installation. Yamitsu Algae Master Pond UV can be added to any existing filtration system. For best results algae master units should be fitted in line, after the pump, with water being forced through them. Use the largest size of pipe possible. If hosetails are to be used, it is very important that they are trimmed to the largest possible size that will fit inside the flexible pipe (before glueing in place). This will ensure that the maximum flow rate can be obtained for the size of pipe.

Yamitsu Algae Master UV Maintenance

Although maintenance is minimal all UV lamps need replacing at six monthly intervals. The algae master’s uv lamp may be illuminated and appear to be working but the radiation dosage diminishes with age and is ineffective after six months. Dispose of used uv lamps sensibly. Even exhausted uv lamps should NEVER be looked at directly when illuminated.

As the algae master uv is dependant upon water passing through it, it is important to ensure that any pump strainers, pre-filters or delivery pipes are not blocked or are causing the flow to be restricted.

Evolution Aqua Evo UV 25 watt (2021 Model)

Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.

One new feature is the ease of the serviceability of the evo UV. Changing bulbs, quartz sleeves or replacing a failed ballast are quick and simple to do.

The evo UV is simple to install, with universal mounting plates allowing you to fix the unit horizontally or vertically, or at any angle you choose.

The evo UV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evo UV will help to deliver crystal clear and healthy pond water.

Your evo UV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.

Features:

• Improves water clarity by eradicating green water
• High output, energy efficient ballast
• Fully serviceable for easy maintenance
• Easy to install
• Available in six models
• 2 year guarantee
