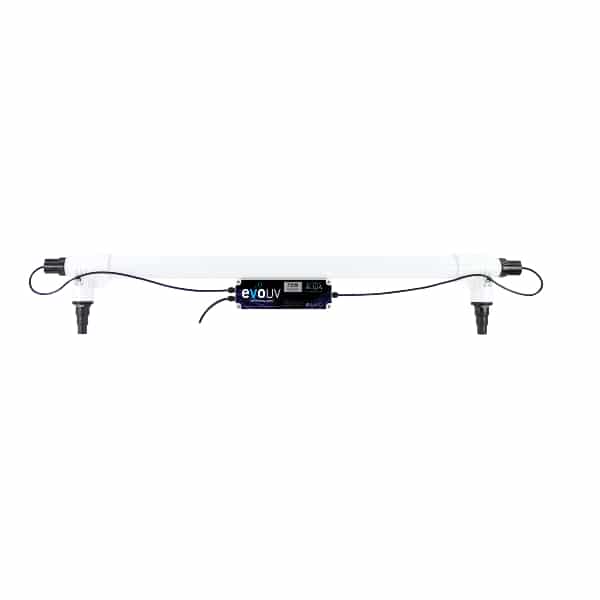

Evolution Aqua Evo UV 75 watt

T5 Submersible 75W UVC

Submersible UV-C lamps have a big advantage compared to conventional UV-C units: no pressure loss.

Benefits

• These lamps can be used in filter tanks so the water can pass without any resistance/ pressure loss.
• The plastic end of the lamp has a 32mm diameter so you can use 32mm pipe clips to mount the lamp in a tank.
• A special tank connector is available for direct installation in i.e. filters.

Note:

• This product is only intended for professional use.
• It should be installed in a professional application or assembled with other appliances.
• Before using this product the installer/user must take care the product complies to the latest European standards for UV-C units.
• 75W Immersion UV-C

Yamitsu Algae Master Pond UV Clarifier 15W

Yamitsu algae master uv’s are made from UV stabilised materials to ensure a longer life and incorporate turbulators to enhance the unit’s performance. Large inlet and exhaust ports make the algae master uv suitable for a wide range of pond uv applications. It is recommended that the algae master uv should be installed using solid solvent weld pipe.

However, all algae master uv’s come complete with free (glue in) hosetails enabling them to be connected to ½”, ¾”, 1″, 1¼” and 1½” flexible pipe. Algae master uv’s will also fit most popular 1½” household solvent weld waste and pressure pipes.

Yamitsu Algae Master Pond UV Clarifier 15w Installation

If you have a severe algae problem you should effect a partial water change before starting the installation. Yamitsu Algae Master Pond UV can be added to any existing filtration system. For best results algae master units should be fitted in line, after the pump, with water being forced through them. Use the largest size of pipe possible. If hosetails are to be used, it is very important that they are trimmed to the largest possible size that will fit inside the flexible pipe (before glueing in place). This will ensure that the maximum flow rate can be obtained for the size of pipe.

Yamitsu Algae Master UV Maintenance

Although maintenance is minimal all UV lamps need replacing at six monthly intervals. The algae master’s uv lamp may be illuminated and appear to be working but the radiation dosage diminishes with age and is ineffective after six months. Dispose of used uv lamps sensibly. Even exhausted uv lamps should NEVER be looked at directly when illuminated.

As the algae master uv is dependant upon water passing through it, it is important to ensure that any pump strainers, pre-filters or delivery pipes are not blocked or are causing the flow to be restricted.

TMC Pro Pond UV 110

The TMC Pro Pond UV 110 watt is designed for large ponds, incorporating Ultrabead, Aquadyne, Bubblebead, Polygeyser and Nexus Eazy 300 filtration systems and can be used for pressurised systems up to 56psi.

The Pro Pond UV 110 watt has 2″ solvent weld inlet and outlet ports and may be connected to either flexible or rigid plumbing using the appropriate plumbing fittings (not supplied). To ensure unrestricted flow, it is recommended that the TMC Pro-Pond 110 watt is not plumbed in with anything less than 11/2″ pipework.

Suitable for ponds up to 16,000 imp gallons/72,000 litres (dependent on stocking density and the amount of sunlight the pond is subject to) with a max flow rate of 8000 imp gallons/36,000 litres per hour.

The TMC Pro Pond UV 110 watt has two individually chambered lamps for optimum efficiency and contact time.

The TMC Pro Pond UV 110 watt uses fused quartz glass sleeves which ensure that germicidal lamps are able to reach their optimum ‘burn temperature’ where the highest amount of UVc radiation is emitted. Also facilitates simple lamp replacement by keeping lamp separate from the pond water.

TMC Pro-Pond UV 110 watt features:

• Supplied complete with 5m cable and 4 wall mounting pipe clips.
• 930 mm long x 320 mm wide x 212mm high. Weight = 13.2kg.

Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.

Oase Bitron Eco 180 W UVC

The revolutionary UVC clarifier Bitron Eco with 180 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child’s play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 1/2 “and 2” connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a guarantee of 2 years + 1 year requirement guarantee.

• Maximum efficiency, thanks to perfect combination of flow rate and irradiation intensity
• Reduced bulb costs thanks to 50% longer service life (12,000 h)
• Energy costs reduced up to 50% with the same cleaning capacity*
