£69.99 – £74.99 inc. VAT

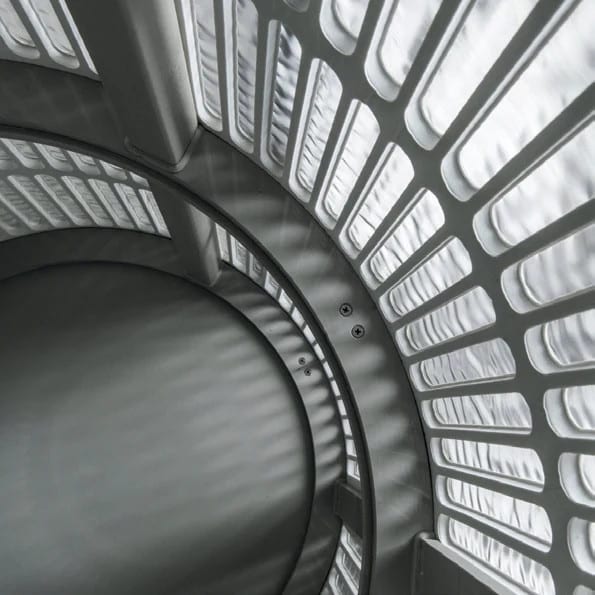

Filtreau Drum Filter Replacement Screen
Filtreau 70micron Spare Screen for Drum (Standard), the essential component to maintain the optimal performance of your Filtreau Drum filter system. Crafted with precision and utilizing high-quality materials, this spare screen ensures efficient filtration and helps keep your pond water
Filtreau Drum Filter Replacement Screen
Filtreau 70micron Spare Screen for Drum (Standard), the essential component to maintain the optimal performance of your Filtreau Drum filter system. Crafted with precision and utilizing high-quality materials, this spare screen ensures efficient filtration and helps keep your pond water
Only logged in customers who have purchased this product may leave a review.
Ask a question
Your question will be answered by a store representative or other customers.
Thank you for the question!
Your question has been received and will be answered soon. Please do not submit the same question again.
Error
An error occurred when saving your question. Please report it to the website administrator. Additional information:
Add an answer
Thank you for the answer!
Your answer has been received and will be published soon. Please do not submit the same answer again.
Error
An error occurred when saving your answer. Please report it to the website administrator. Additional information:
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Type | Standard, High Flow |
TMC UV Replacement Bulbs
The TMC Replacement UV Bulbs are available for the whole range of the TMC pond UV clarifiers. The T8 Bulbs are available in 2 different wattages with the 110w model requiring 2x 55w Bulbs. Since the UVC clarifier is mostly in constant use, the effect can wear off it is therefore recommended that the lamps be replaced at regular intervals. It is best to think about this in spring so that your clarifier is ready for the whole pond season.
Sizes Available:
Evolution Aqua Quartz Sleeves
For those Koi and pond enthusiasts who are not as careful as they might be, we do also sell the spare Evolution Aqua Quartz Sleeves in the most standard sizes.
The Evolution Aqua Quartz Sleeve insulates the lamp from the water, allowing the lamp to operate at the optimum performance.
The ultraviolet lamp will remain independent of the flow of water. Evolution Aqua Quartz Sleeves are of open-ended construction and are made from pure fused quartz.
Quartz is extremely transparent over a wide spectral range, with a low coefficient of thermal expansion and quartz is resistant to scratching and thermal shock. Fused quartz is made from crushing and melting natural materials. The purity of quartz is paramount to the efficiency of the lamp and sleeve.
Evolution Aqua Quartz Sleeve Benefits:
Evolution Aqua Quartz Sleeve Dimensions:
Quartz sleeves are available for the Evolution Aqua Pond UV Clarifier 15w/25watt 30w/55watt or 75watt units
Filtreau Replacement Motor And Gearbox
The Filtreau Replacement Motor And Gearbox is compatible with all of the Filtreau Filtration Systems. Upgrade your Filtreau Filtration System with reliable and durable replacement parts. The Filtreau Replacement motor and gearbox are designed to seamlessly fit in your system for optimal performance.
Replacement lamp for Filtreau and AEM drum filters.
40w Amalgam – 4 Pin and 80w Amalgam – 4 Pin
Evo UV Replacement Bulbs
The Evo UV Replacement Bulbs are available for the whole range of the Evolution Aquas pond UV clarifiers. The T8 Bulbs are available in 5 different wattages with the 110w model requiring 2x 55w Bulbs. Since the UVC clarifier is mostly in constant use, the effect can wear off it is therefore recommended that the lamps be replaced at regular intervals. It is best to think about this in spring so that your clarifier is ready for the whole pond season.
Sizes Available:
Amalgam Submersible UV 40 watt Replacement Lamp
Delta UV EA Series Bulb Replacements
A new series of professional Stainless Steel UVC-units for ponds, pools, whirpools etc. The Delta Ultraviolet’s Elektra® Pro Delta Bio-UV series of UV sanitizers have been in production since 1999. These 100% Stainless Steel housing systems have become the “Cadillac” of UV sanitizers for the Koi Pond industry and have gained a reputation second to none for quality, functionality, performance and reliability.
Five different model sizes are available for circulation systems with water flow rates from 800 GPH (3,600 LPH) to 3,450 GPH (15,600 LPH). All models are available in 120V and 240V 50/60 Hz electrical ratings for worldwide application.
Exclusive features, as mentioned above include a 316 stainless steel housing that allows for 360° rotation of the inlet and outlet unions for ease of installation. Another key exclusive feature not commonly found in similar units is the inclusion of unions at each end of the stainless steel housing to facilitate cleaning of the quartz tube, should it be necessary.
As you can clearly see from the image below these UV’s can be mounted either vertically or horizontally.
Like all Delta Ultraviolet systems, Delta’s propriety High Output (HO) low pressure lamp is capable of 30,000 µ/sec./cm2 output lamp end-of-life (EOL) when design flow rates are maintained. This is the same requirement for Class A drinking water. The long life lamp is rated at 9000 hours of continuous use (approximately 1 year).
Delta UV EA Series Technical data
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-3H-5 | Up to 1500 gallons | 3 Bar | 2400 lph | 30mJ/cm2 | 75 mm | 1 x 35 watt |
| Type | Pond Size | Max Pressure | Flow Rate | UV-C Dose | Dia | UV Lamps |
|---|---|---|---|---|---|---|
| Delta UV EA-4H-15 | Up to 4500 gallons | 3 Bar | 7600 lph | 30mJ/cm2 | 100 mm | 1 x 55 watt |
| Delta UV EA-4H-20 | Up to 6000 gallons | 3 Bar | 9500 lph | 30mJ/cm2 | 100 mm | 1 x 90 watt |
| Delta UV EA-4H-40 | Up to 7000 gallons | 3 Bar | 10700 lph | 30mJ/cm2 | 100 mm | 1 x 110 watt |
These are Delta UV EA Series Bulb Replacements and the actual units
Pond UV bulbs
Replacement UV lamps for practically any UV system.
This is one of the most integral parts of your overall filtration system, yet we often forget to maintain it as time goes by.
You should replace the UV lamp in your UV unit every year.
Although the lamp may still burn, it no longer emits the right UV radiation.
Depending on your UV unit, you will need an energy efficient PLS lamp, which have two pins at one end, we stock the 9 watt PLS and the 11 watt PLS
Or you may need the latest generation T8 lamps which have two pins at each end, these units are used in the TMC and Yamitsu Algae Master range of units.
Take care when ordering your replacement UV lamp, ensure that you buy the right replacement lamp.
UV Replacement Lamps
Be sure to clean the quartz glass of the unit carefully before installing the new lamp to optimise the light transmission.
Important Note: When ordering UV lamps please make sure you open the box to make sure the lamps are not broken before signing the delivery note, if the bulbs are damaged please sign the delivery note “Damaged” and refuse delivery.
A claim will ONLY be accepted if signed for as DAMAGED.
If you have any questions regarding our ultraviolet lights, please do not hesitate to contact us.
