Kockney Koi 10000V Fibreglass Filter
  • Kockney Koi 10000V Fibreglass Filter

Kockney Koi 10000V Fibreglass Filter

(1 customer review)

£1,159.99 – £1,171.99 inc. VAT

Kockney Koi 10000V Fibreglass Filter

The KF10000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 10,000 litres and a maximum flow rate of 6,000 litres ph. However, with lighter stocking densities or in fish free ponds the KF10000 will comfortably cope with larger volumes. The integral Vortex enhances the unit’s performance and reduces the maintenance intervals

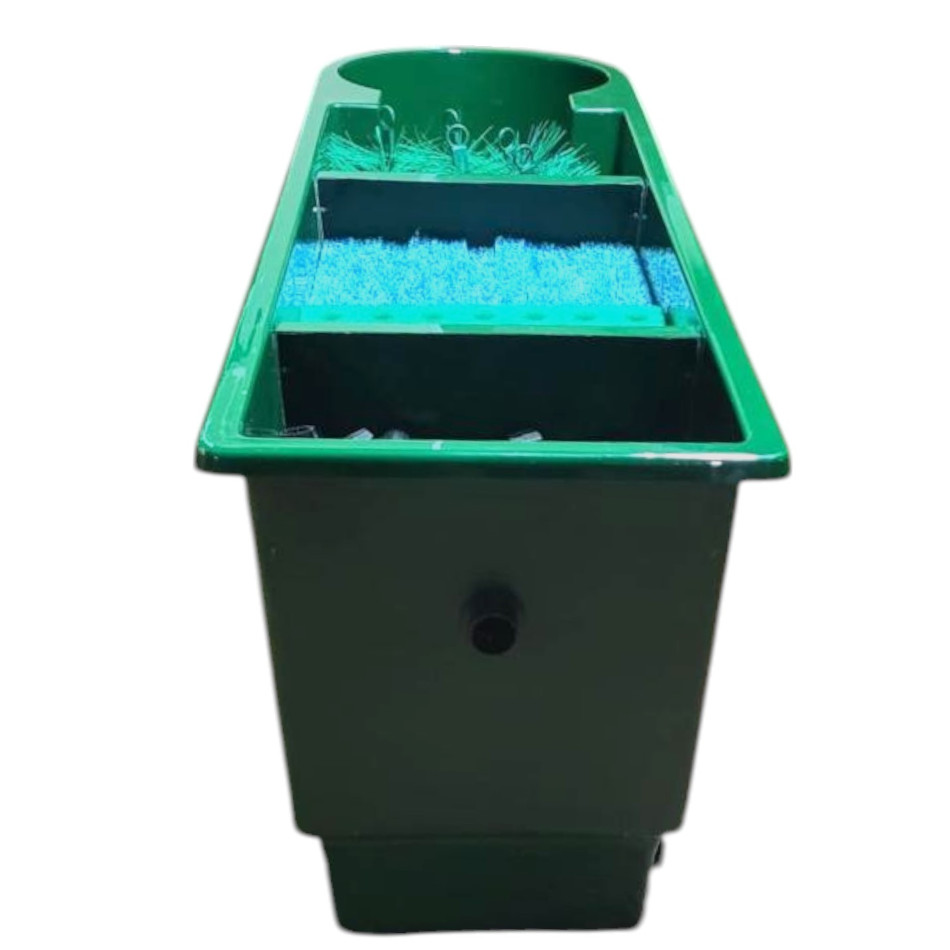

The media package consists of:

Specifications:

Bay 1: Six 16″ long x 8″ diametre polypropylene filter brushes – They are of a semi-rigid construction with a wire loop at the end for easy installation.

Bay 2: Blue matting – This is an excellent filter media as it has excellent bio-mass retention and its open texture removes larger particles from the water.

Bay 3: Six layers of sponge with varying layers of porosity, two large foam blocks and a layer of flocor.

Bay 4: Filled with Flocor. The large surface area of Flocor tubes makes it an ideal filter media.

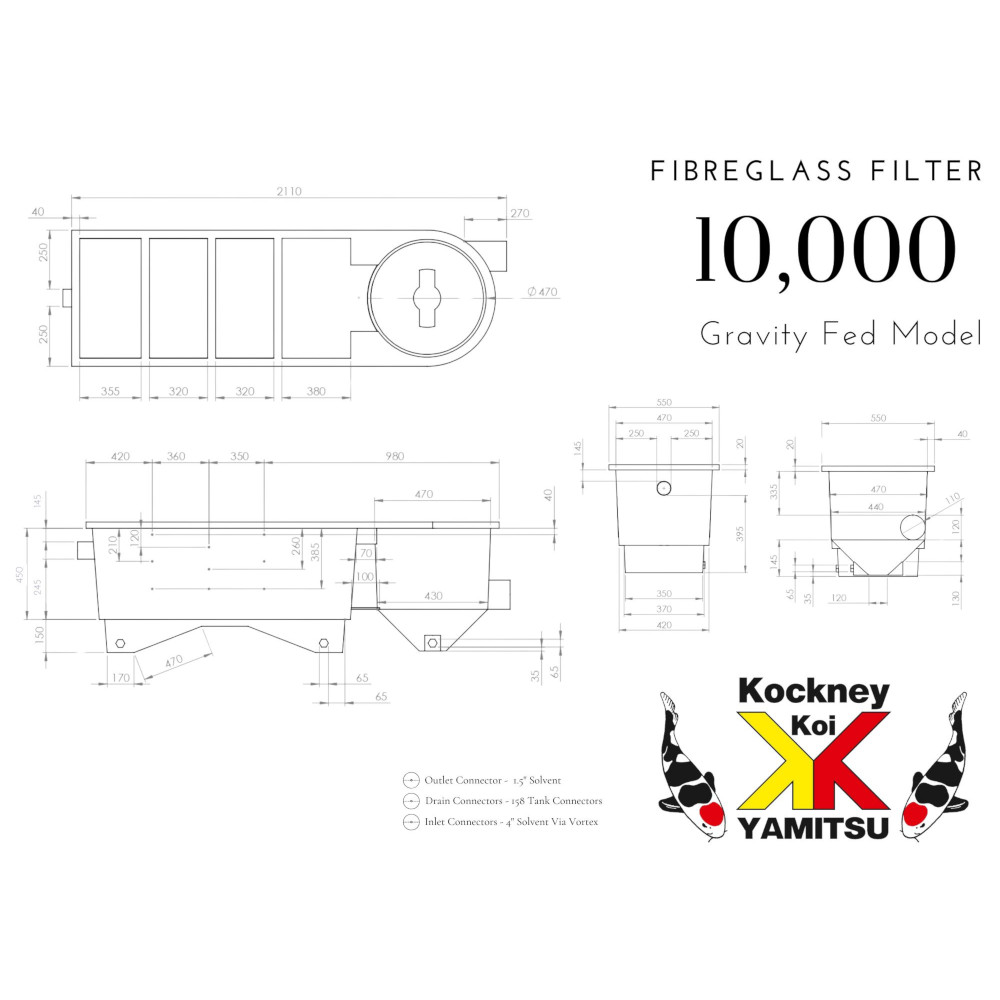

81” long x 21” wide x 24” Deep
Maximum flow rate 6,000 litre per hour
Three drainage points – (Accepts 1.5″ solvent weld pipe for remote drainage)
Supplied with 3 1.5″ Kockney Koi Ball Valves
The pump fed model has a 4″ inlet and outlet while the gravity fed model has a 4″ inlet and 1.5″ outlet.

Both Options are supplied including media

Clear selection
SKU: N/A Category:

Description

Kockney Koi 10000V Fibreglass Filter

The KF10000V is a high quality, free-standing, fibreglass, four bay, filter with integral vortex designed to improve your fish’s environment. Its “state-of-the art” multi chamber ensures maximum filtration with the minimum of maintenance. The unit is suitable for fish ponds of up to 10,000 litres and a maximum flow rate of 6,000 litres ph. However, with lighter stocking densities or in fish free ponds the KF10000 will comfortably cope with larger volumes. The integral Vortex enhances the unit’s performance and reduces the maintenance intervals
The media package consists of:

Specifications:

Bay 1: Six 16″ long x 8″ diametre polypropylene filter brushes – They are of a semi-rigid construction with a wire loop at the end for easy installation.

Bay 2: Blue matting – This is an excellent filter media as it has excellent bio-mass retention and its open texture removes larger particles from the water.

Bay 3: Six layers of sponge with varying layers of porosity, two large foam blocks and a layer of flocor.

Bay 4: Filled with Flocor. The large surface area of Flocor tubes makes it an ideal filter media.

81” long x 21” wide x 24” Deep
Maximum flow rate 6,000 litre per hour
Three drainage points – (Accepts 1.5″ solvent weld pipe for remote drainage)
Supplied with 3 1.5″ Kockney Koi Ball Valves
The pump fed model has a 4″ inlet and outlet while the gravity fed model has a 4″ inlet and 1.5″ outlet.

Both Options are supplied including media

1 review for Kockney Koi 10000V Fibreglass Filter

  1. Thomas Cullen (verified owner) –

    Very good service

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 25 kg
Dimensions 120 × 60 × 60 cm
Set up

Gravity fed, Pump fed
