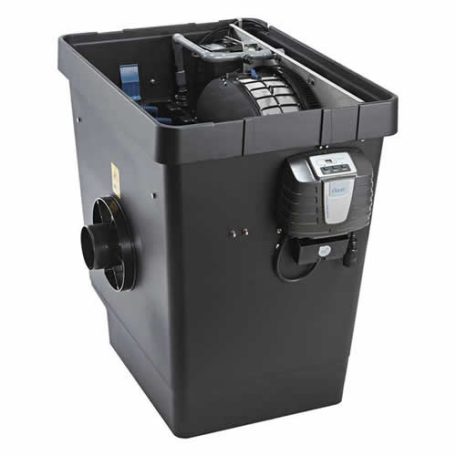

Oase BioTec 80000
  • Oase BioTec 80000
  • Oase BioTec 80000 inside

Oase BioTec 80000

£2,596.99 inc. VAT

Oase BioTec 80000

The next step in the evolution of the OASE drum filter technology offers crystal clear water through innovative solids-separation technology combined with an effective biofilter stage. The compact alternative with an excellent price-performance ratio is ideal for the convenience-conscious customer.

Compact high-performance filter with intelligent controller system

Through the combination of two filter stages, the compact all-in-one filter unit ensures crystal clear water, even in large ponds. Mechanical separation of particles and suspended matter down to 150 micrometres occurs instage 1 via the proven drum filter technology. In stage 2 the water is biologically cleaned via highly effective filter sponges.

A 4-bar cleaning pump cleans the filter drum automatically as needed; the water temperature can be seen out on the control unit. Moreover, the BioTec Premium can be flexibly extended through additional modules of the ProfiClear Classic series. Ideal for garden ponds up to 80 m³, fish ponds up to 40 m³ and koi ponds up to 20 m³.

Top arguments
  • Low-maintenance filter technology with load-reducing suspended solids separation
  • Proven and safe drum filter technology with automatic cleaning
  • Intelligent controller system and 4-bar cleaning pump
  • Low-maintenance biofilter stage with Easy Clean function

Out of stock

SKU: FS1984 (54854) Category:

Description

Oase BioTec 80000

The next step in the evolution of the OASE drum filter technology offers crystal clear water through innovative solids-separation technology combined with an effective biofilter stage. The compact alternative with an excellent price-performance ratio is ideal for the convenience-conscious customer.

Compact high-performance filter with intelligent controller system

Through the combination of two filter stages, the compact all-in-one filter unit ensures crystal clear water, even in large ponds. Mechanical separation of particles and suspended matter down to 150 micrometres occurs instage 1 via the proven drum filter technology. In stage 2 the water is biologically cleaned via highly effective filter sponges.

A 4-bar cleaning pump cleans the filter drum automatically as needed; the water temperature can be seen out on the control unit. Moreover, the BioTec Premium can be flexibly extended through additional modules of the ProfiClear Classic series. Ideal for garden ponds up to 80 m³, fish ponds up to 40 m³ and koi ponds up to 20 m³.

Top arguments
  • Low-maintenance filter technology with load-reducing suspended solids separation
  • Proven and safe drum filter technology with automatic cleaning
  • Intelligent controller system and 4-bar cleaning pump
  • Low-maintenance biofilter stage with Easy Clean function

Characteristics:

  • The automatic coarse debris extraction easily flushes the contamination out of the filter, thanks to drum filter technology
  • Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
  • Long service life and high quality filter sponges offer the best conditions for the filter biology
  • The filter is flushed only by cleaned pond water. Therefore a fresh water connection is not required.
  • Powerful, high-quality pressure pump is integrated for flushing the drum
  • Particularly quiet in operation thanks to extensive noise insulation
  • Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum interior
  • Pollutant rakes on the sieves for reliable removal of string algae and other larger particles from the drum
  • Less string algae through continuous removal of phosphates and nutrients
  • Pollutant discharge incl. slide valve
  • Innovative and reliable product “Made in Germany” (except pressure pump)
  • Incl. OASE Clear Water Guarantee
TECHNICAL DATA
Dimensions (L x W x H) mm 830 x 600 x 820
Rated voltage 230 V / 50 Hz
Power consumption W 5
Power consumption, cleaning W 670
Cable length m 5.00 + 1.00
Net weight kg 56.00
Guarantee (+ request guarantee) Years 2 + 1
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction µm 125
Number of nozzles/rinse quantity 1 x 4.0 l/min
Scavenging pump 4 bar
Automatic rinsing system manually, Sensor, Time interval
Material GRP Duroplast/stainless steel
Number of blue filter foams Units 2
Number of red filter foams Units 2
Number of purple filter foams Units 2
Number of inlets Units 1
Inlet connections 1 x 2″ + Bitron
Connection EGC Yes
Connection to Bitron C 36 – 110 W, Bitron Eco 120 – 240 W, ProfiClear Classic
Number of outlets Units 1
Outlet connections DN 110
Sludge discharge connections DN 75
Flush trough connection DN 110
Min. flow rate l/h 7500
Max. flow rate l/h 12500
Suitable for ponds up to max. m3 80.0
Suitable for ponds with fish stock m3 40.0
Suitable for ponds with koi m3 20.0
Installation height above water level cm 51.0

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Oase BioTec.pdf
