Oase Biotec Screenmatic2 40000

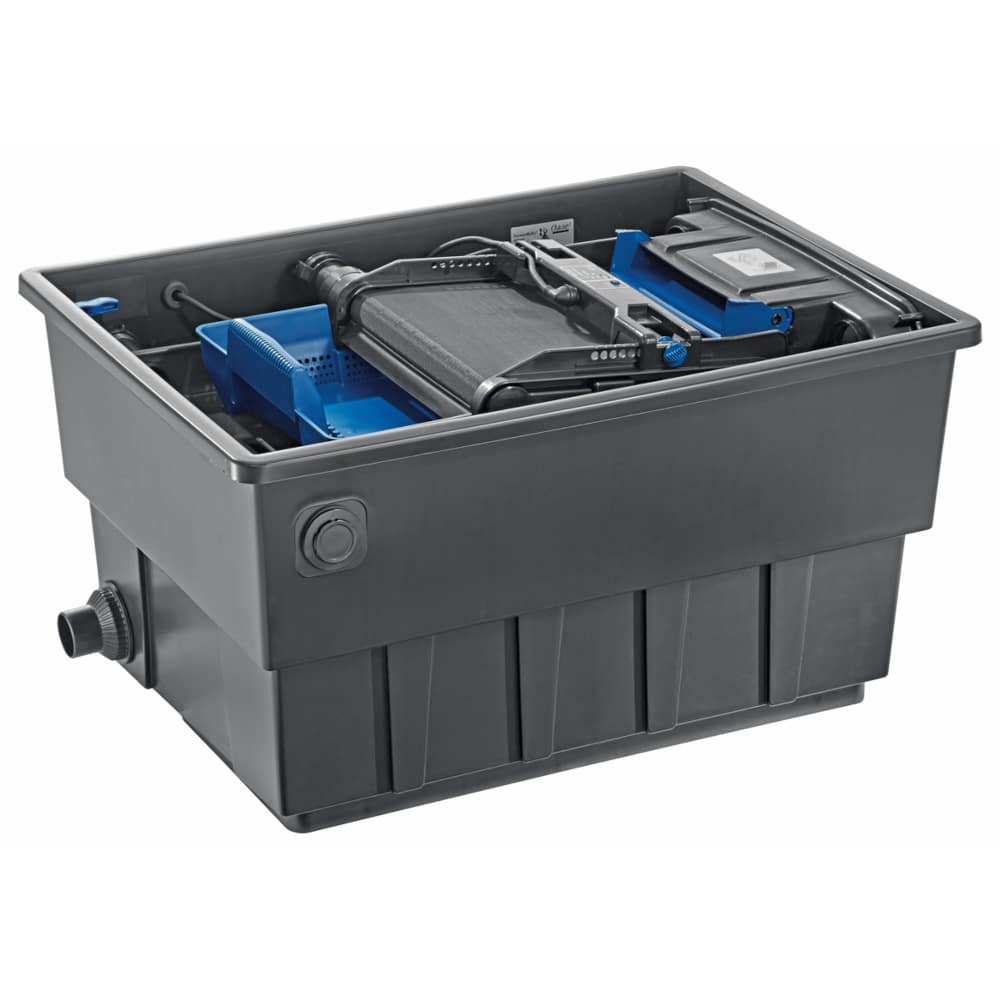

The OASE BioTec ScreenMatic² 90000 is an innovative auto-cleaning filtration system for both ornamental ponds and fish ponds alike. The filtration system operates using a rotating screen belt which intercepts solid waste upon entry and transfers this to a collection tray when filled. Waste levels are measured by a sensor bar which engages a cleaning cycle when the sieve screen belt is sufficiently filled with waste, the sensor bar position can be adjusted to suit the flow rate from different pumps and regulate the amount of waste intercepted before self-cleaning. Beneath the screen mechanism are a series of 16 filter sponges in 3 different grades of coarseness, these provide excellent biological filtration after the mechanical extraction, removing harmful soluble waste product. Water is also passed through Zeolite media in the front chamber which collects waste and nutrient in solution before water is returned to the pond.

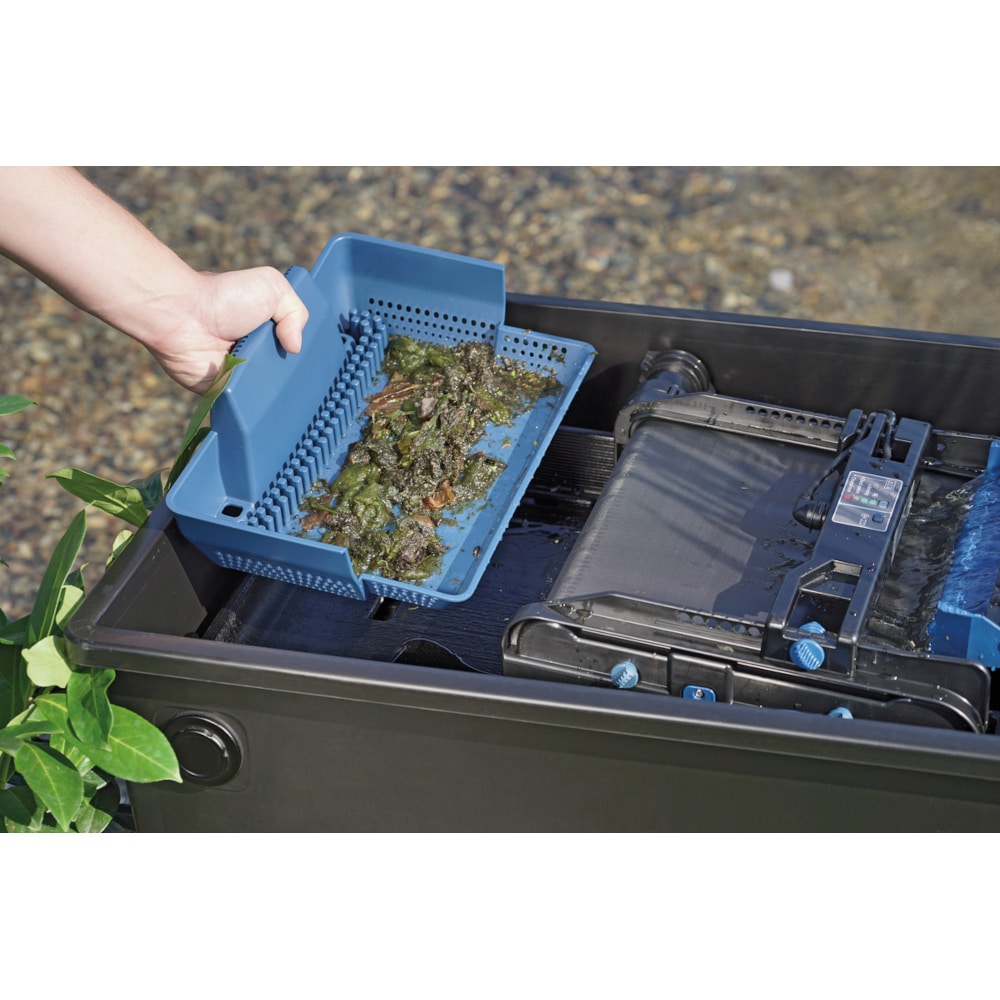

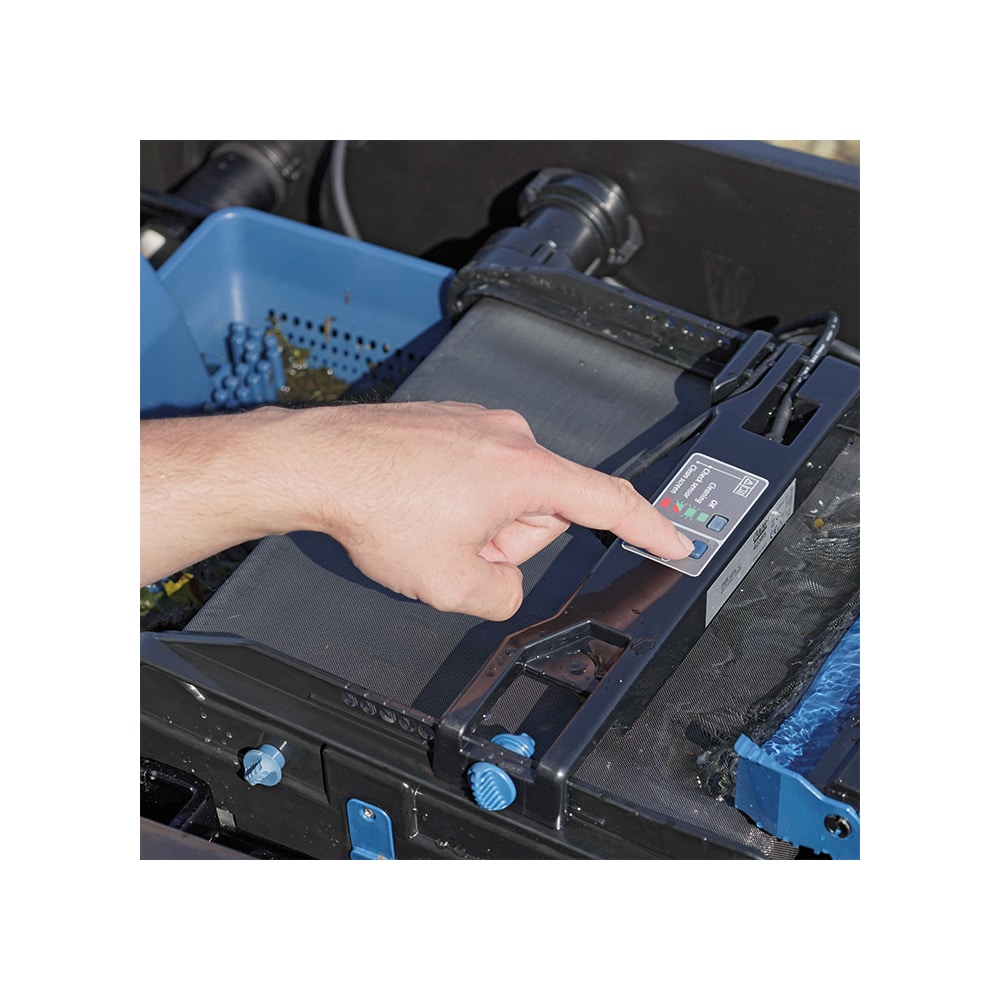

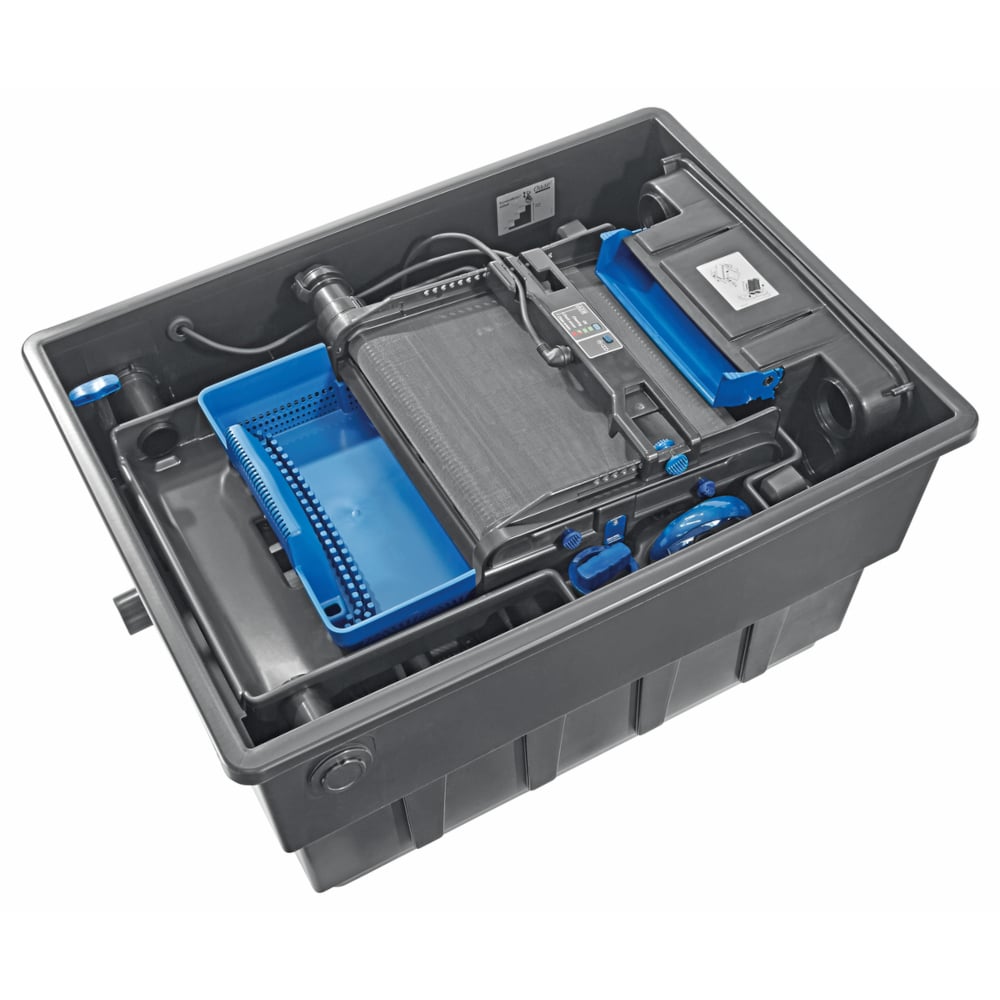

The OASE BioTec ScreenMatic² 90000 is an intelligent, flow-through pond filter that provides automated mechanical waste removal and biological filtration. The water enters the filter via a flow spreader onto a 300 micron fabric belt which strains out solid waste particles. When sufficiently soiled, a sensor engages the motor which performs a cleaning cycle, transferring the accumulated waste into a collection tray below the screen. The control display also allows instant cleaning cycles at the press of a button. The waste sensor can be adjusted backward and forward to alter cleaning regularity based on waste accumulation. A cleaning brush is supplied to keep the fabric screen free of entrapped dirt.

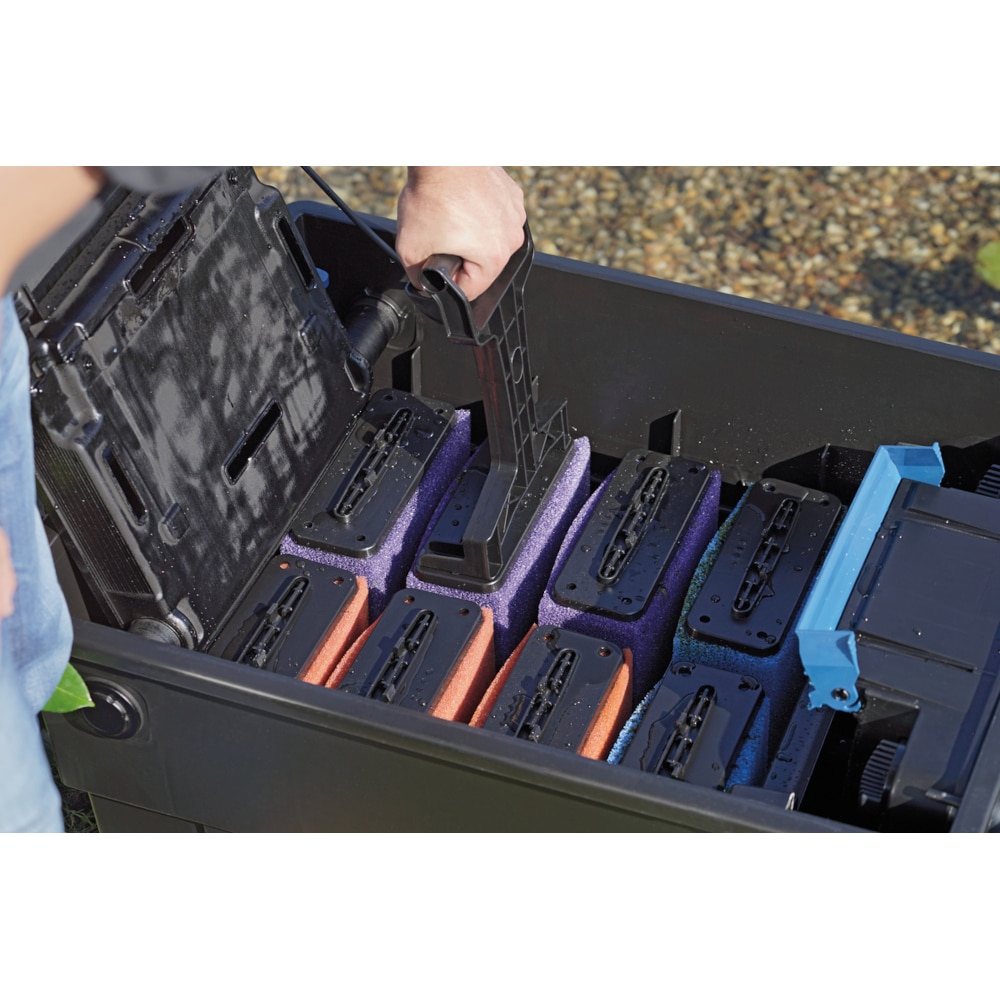

After mechanical straining, water enters the the biological media, a series of 16 large filter sponges differing in coarseness. The blue foams are rough, violet are medium fine and red are very fine grade. These sponges provide an abundance of surface housing for aerobic bacteria to populate and breakdown soluble waste pollutants. Cleaning the foams is made easy by the compression handle used to push down on the foams to release any build up of organic waste. Water is then directed through cartridges containing 5kg of granulate media (zeolite) which bind unwanted nutrients and trace ammonia before returning water to the pond.

• Incl. OASE Clear Water Guarantee
• Significantly less maintenance is required, thanks to coarse debris extraction
• More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
• Cleaning of filter sponges directly in the filter, without removal
• Sludge drain with slide valve for removing debris from the filter system
• Different filter media for optimal development of filter bacteria
• Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
• Optimally matched to OASE AquaMax Eco filter pumps
• Direct connection possibility for Bitron C and Eco UVC clarifiers
• Reinforced strap material for an extended service life
• Double-sealed motor for an extended service life
• Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
• Sludge basket with greater volume and simplified handling
• Rubberised separating lip for outstanding separation result
• Free brush for occasional cleaning of the belt filter
• Manual belt run now possible via button
• Highly effective flow-through filter for ponds up to 90.0 m³
• Lids of models 40,000 and 60,000 with storm-safe fastening clips

• Dimensions (L x W x H)	mm	788 x 590 x 645
  Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
  Power consumption	W	5
  Cable length 12 V device (with power unit)	m	2.10 (Power unit) + 5.00
  Net weight	kg	27.00
  Guarantee	Years	2 + 1
  Number of filter foams, total	Units	16
  Number of blue filter foams	Units	4
  Number of red filter foams	Units	6
  Number of purple filter foams	Units	6
  Special filter granulate	kg	5.00
  Temperature display		No
  Coarse debris extraction	µm	300
  Inlet connections	mm	25 / 32 / 38 / 50
  Inlet connections		1″, 1 ¼”, 1 ½”, 2″
  Outlet connections		DN 110
  Sludge discharge connections		DN 50
  Min. flow rate	l/h	8000
  Max. flow rate	l/h	12500
  Suitable for ponds up to max.	m³	90.0
  Suitable for ponds with fish stock	m³	45.0
  Suitable for ponds with koi stock	m³	22.5
  Connection to		Bitron C 36 – 110 W, Bitron Eco 120 – 240 W

Oase Biotec Screenmatic2 60000

OASE German Engineers have completely overhauled the highly successful BioTec 18 ScreenMatic filter and have released the innovative BioTec ScreenMatic² 60000 Pond Filter. This compact gravity outlet, flow-through filter box features an automated pre-filter conveyor which will screen out larger debris and transport this on a porous conveyor belt to a large collection basket for periodic emptying. The new Screendrive mechanism is now fully automated via a special cleaning sensor which controls the belt functions depending on the dirt level detected on the porous belt. Only small particles pass through the ScreenMatic drive belt where the large surface area biological/mechanical filter foams will trap and break down the organic waste. This innovative mechanism places far less biological load on the filter foams, meaning less maintenance and crystal clear water quality in ornamental, Goldfish and Koi ponds alike.

The OASE BioTec ScreenMatic² 60000 is an intelligent, flow-through pond filter that provides automated mechanical waste removal and biological filtration. The water enters the filter via a flow spreader onto a 300 micron fabric belt which strains out solid waste particles. When sufficiently soiled, a sensor engages the motor which performs a cleaning cycle, transferring the accumulated waste into a collection tray below the screen. The control display also allows instant cleaning cycles at the press of a button. The waste sensor can be adjusted backward and forward to alter cleaning regularity based on waste accumulation. A cleaning brush is supplied to keep the fabric screen free of entrapped dirt.

After mechanical straining, water enters the the biological media, a series of 8 large filter sponges differing in coarseness. The blue foams are rough, violet are medium fine and red are very fine grade. These sponges provide an abundance of surface housing for aerobic bacteria to populate and breakdown soluble waste pollutants. Cleaning the foams is made easy by the compression handle used to push down on the foams to release any build up of organic waste. Water is then directed through cartridges containing 3.5kg of granulate media (zeolite) which bind unwanted nutrients and trace ammonia before returning water to the pond.

• Incl. OASE Clear Water Guarantee
• Significantly less maintenance is required, thanks to coarse debris extraction
• More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
• Cleaning of filter sponges directly in the filter, without removal
• Sludge drain with slide valve for removing debris from the filter system
• Different filter media for optimal development of filter bacteria
• Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
• Optimally matched to OASE AquaMax Eco filter pumps
• Direct connection possibility for Bitron C and Eco UVC clarifiers
• Reinforced strap material for an extended service life
• Double-sealed motor for an extended service life
• Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
• Sludge basket with greater volume and simplified handling
• Rubberised separating lip for outstanding separation result
• Free brush for occasional cleaning of the belt filter
• Manual belt run now possible via button
• Highly effective flow-through filter for ponds up to 60.0 m³
• Lids of models 40,000 and 60,000 with storm-safe fastening clips

Oase Biotec Screenmatic2 Set 40000 OC

The Oase BioTec ScreenMatic² 40000 OC is a compact, low maintenance flow-through pond filter providing mechanical and biological filtration; creating crystal clear water quality in ornamental, Goldfish and Koi ponds alike. The Biotec Screenmatic² is a follow on from one of the most advanced and well sold filters in the Oase Biotec family. The ScreenMatic² filter is a combination of all the well known features of its predecessor as well as enhanced benefits that have been introduced to make this filter more efficient and even easier to operate then ever before.

The Oase BioTec ScreenMatic² Set 40000 OC consists of the BioTec ScreenMatic² 40000 Pond Filter, the AquaMax Eco Premium 13000 Pond Pump and the Bitron 36C UVC. This optimally matched pump, filter and UVC set provides crystal clear water for ponds up to 40,000 litres.

Set Includes:

• Oase Aquamax Eco Premium 13000 Pond Pump
• Oase Bitron 36C UVC
• Oase BioTec ScreenMatic² 40000 Pond Filter
• Oase BioKick Filter Starter

Oase Biotec Screenmatic2 Set 60000 OC

The Oase BioTec ScreenMatic² 60000 OC is a compact, low maintenance flow-through pond filter providing mechanical and biological filtration; creating crystal clear water quality in ornamental, Goldfish and Koi ponds alike. The Biotec Screenmatic² is a follow on from one of the most advanced and well sold filters in the Oase Biotec family. The ScreenMatic² filter is a combination of all the well known features of its predecessor as well as enhanced benefits that have been introduced to make this filter more efficient and even easier to operate then ever before.

The Oase BioTec ScreenMatic² Set 60000 OC consists of the BioTec ScreenMatic² 60000 Pond Filter, the Aqua Max Eco Premium 17000 Pond Pump and the Bitron 55C UVC. This optimally matched pump, filter and UVC set provides crystal clear water for ponds up to 60,000 litres.

Set Includes:

• Oase Aquamax Eco Premium 17000 Pond Pump
• Oase Bitron 55C UVC
• Oase BioTec ScreenMatic² 60000 Pond Filter
• Oase BioKick Filter Starter
