Description

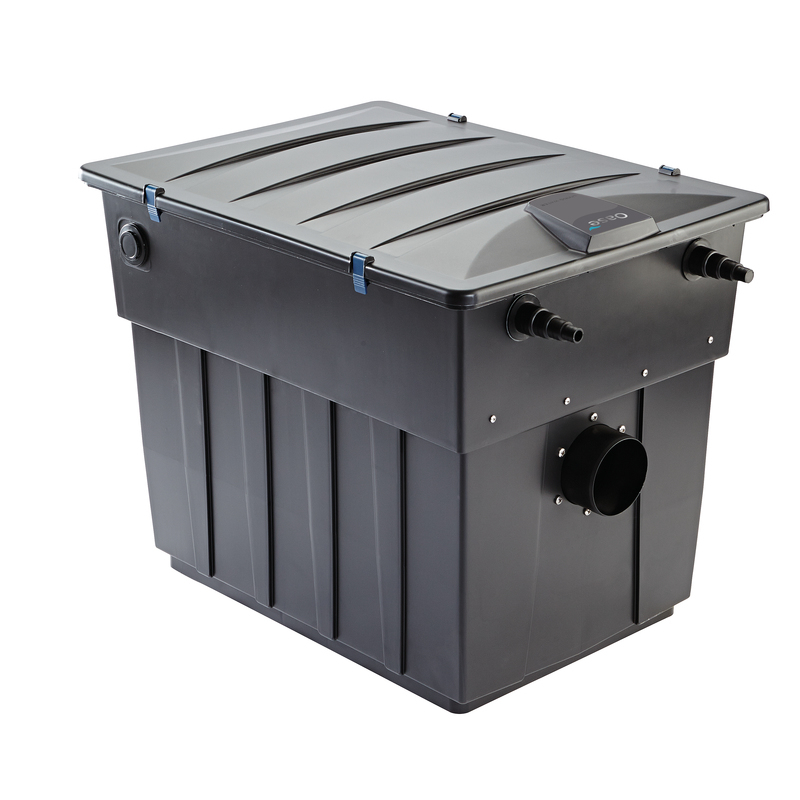

The OASE BioTec ScreenMatic² 90000 is an innovative auto-cleaning filtration system for both ornamental ponds and fish ponds alike. The filtration system operates using a rotating screen belt which intercepts solid waste upon entry and transfers this to a collection tray when filled. Waste levels are measured by a sensor bar which engages a cleaning cycle when the sieve screen belt is sufficiently filled with waste, the sensor bar position can be adjusted to suit the flow rate from different pumps and regulate the amount of waste intercepted before self-cleaning. Beneath the screen mechanism are a series of 16 filter sponges in 3 different grades of coarseness, these provide excellent biological filtration after the mechanical extraction, removing harmful soluble waste product. Water is also passed through Zeolite media in the front chamber which collects waste and nutrient in solution before water is returned to the pond.
The OASE BioTec ScreenMatic² 90000 is an intelligent, flow-through pond filter that provides automated mechanical waste removal and biological filtration. The water enters the filter via a flow spreader onto a 300 micron fabric belt which strains out solid waste particles. When sufficiently soiled, a sensor engages the motor which performs a cleaning cycle, transferring the accumulated waste into a collection tray below the screen. The control display also allows instant cleaning cycles at the press of a button. The waste sensor can be adjusted backward and forward to alter cleaning regularity based on waste accumulation. A cleaning brush is supplied to keep the fabric screen free of entrapped dirt.
After mechanical straining, water enters the the biological media, a series of 16 large filter sponges differing in coarseness. The blue foams are rough, violet are medium fine and red are very fine grade. These sponges provide an abundance of surface housing for aerobic bacteria to populate and breakdown soluble waste pollutants. Cleaning the foams is made easy by the compression handle used to push down on the foams to release any build up of organic waste. Water is then directed through cartridges containing 5kg of granulate media (zeolite) which bind unwanted nutrients and trace ammonia before returning water to the pond.
- Incl. OASE Clear Water Guarantee
- Significantly less maintenance is required, thanks to coarse debris extraction
- More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
- Cleaning of filter sponges directly in the filter, without removal
- Sludge drain with slide valve for removing debris from the filter system
- Different filter media for optimal development of filter bacteria
- Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
- Optimally matched to OASE AquaMax Eco filter pumps
- Direct connection possibility for Bitron C and Eco UVC clarifiers
- Reinforced strap material for an extended service life
- Double-sealed motor for an extended service life
- Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- Highly effective flow-through filter for ponds up to 90.0 m³
- Lids of models 40,000 and 60,000 with storm-safe fastening clips
-
Dimensions (L x W x H) mm 788 x 590 x 645 Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC Power consumption W 5 Cable length 12 V device (with power unit) m 2.10 (Power unit) + 5.00 Net weight kg 27.00 Guarantee Years 2 + 1 Number of filter foams, total Units 16 Number of blue filter foams Units 4 Number of red filter foams Units 6 Number of purple filter foams Units 6 Special filter granulate kg 5.00 Temperature display No Coarse debris extraction µm 300 Inlet connections mm 25 / 32 / 38 / 50 Inlet connections 1″, 1 ¼”, 1 ½”, 2″ Outlet connections DN 110 Sludge discharge connections DN 50 Min. flow rate l/h 8000 Max. flow rate l/h 12500 Suitable for ponds up to max. m³ 90.0 Suitable for ponds with fish stock m³ 45.0 Suitable for ponds with koi stock m³ 22.5 Connection to Bitron C 36 – 110 W, Bitron Eco 120 – 240 W
