Description
Oase Biotec Screenmatic2 Set 90000 OC
The Oase BioTec ScreenMatic² 90000 OC is a compact, low maintenance flow-through pond filter providing mechanical and biological filtration; creating crystal clear water quality in ornamental, Goldfish and Koi ponds alike. The Biotec Screenmatic² is a follow on from one of the most advanced and well sold filters in the Oase Biotec family. The ScreenMatic² filter is a combination of all the well known features of its predecessor as well as enhanced benefits that have been introduced to make this filter more efficient and even easier to operate then ever before.

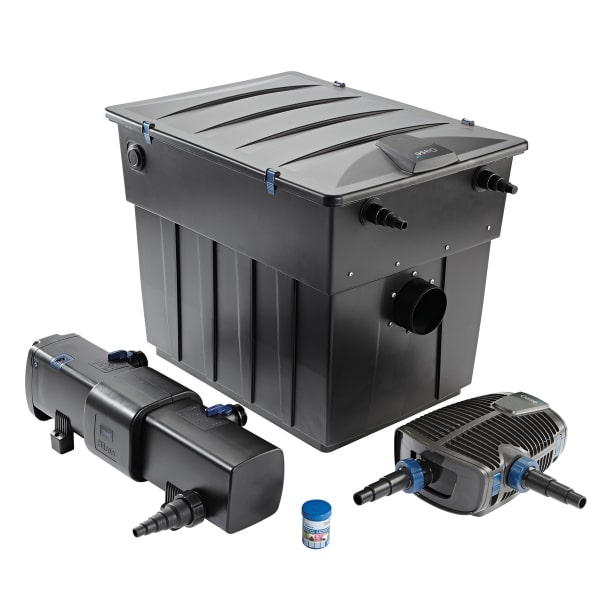

The Oase BioTec ScreenMatic² Set 90000 OC consists of the BioTec ScreenMatic² 90000 Pond Filter, the Aqua Max Eco Premium 21000 Pond Pump and the Bitron 110C UVC. This optimally matched pump, filter and UVC set provides crystal clear water for ponds up to 90,000 litres.
The Oase Biotec Screenmatic2 90000 Set OC offers intelligent, automated mechanical waste removal and biological filtration. Here’s how it works: water enters the filter through a flow spreader onto a 300-micron fabric belt, which strains out solid waste particles. When the fabric belt becomes sufficiently soiled, a sensor activates the motor, initiating a cleaning cycle that transfers accumulated waste into a collection tray below the screen. The control display provides the convenience of instant cleaning cycles at the press of a button. Plus, the waste sensor is adjustable for personalized cleaning regularity based on waste accumulation. A supplied cleaning brush ensures the fabric screen remains free of entrapped dirt.
After the mechanical straining process, water progresses through a series of eight large filter sponges with varying coarseness—blue for rough, violet for medium fine, and red for very fine grade. These sponges create ample surface housing for aerobic bacteria to thrive and break down soluble waste pollutants. Cleaning the filter foams is a breeze thanks to the compression handle, facilitating the release of any organic waste build up. Finally, water passes through cartridges containing 5kg of granulate media (zeolite), effectively binding unwanted nutrients and trace ammonia before returning to the pond. The Oase BioTec ScreenMatic² 90000 ensures a smart, efficient, and hassle-free approach to pond filtration and water quality maintenance.
The clever product improvements are relative to the predecessor model:
- Double-sealed motor for an extended service life
- Adjustable automatic cleaning, depending on the degree of pollution
- New Control display includes LED function check
- Optimal flow distribution with clogging thanks to flow spreader
- Sludge basket with greater volume and simplified handling
- Rubberised separating lip for outstanding separation result
- Reinforced strap material for an extended service life
- Lids of models 40,000, 60,000 & 90,000 with storm-safe fastening clips
- Free brush for occasional cleaning of the belt filter
- Manual belt run now possible via button
- New foam distribution with coarse, medium and fine grade
Set Includes:
- Oase Aquamax Eco Premium 21000 Pond Pump
- Oase Bitron 110C UVC
- Oase BioTec ScreenMatic² 90000 Pond Filter
- Oase BioKick Filter Starter
Technical Data:
| Dimensions filter (L x W x H) | mm | 788 x 590 x 645 |
|---|---|---|
| Net weight | kg | 42.00 |
| Rated voltage UVC | 220 – 240 V / 50 – 60 Hz | |
| Power consumption | W | 5 |
| Power consumption UVC | W | 110 |
| Power cable length UVC | m | 5.00 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Guarantee UVC | Years | 2 |
| Number of filter foams, total | Units | 16 |
| Number of blue filter foams | Units | 4 |
| Number of red filter foams | Units | 6 |
| Number of purple filter foams | Units | 6 |
| Special filter granulate | kg | 5.00 |
| Temperature display | No | |
| Coarse debris extraction | µm | 300 |
| Connection inlet filter | mm | 25 / 32 / 38 |
| Connection inlet filter | 1″, 1 ¼”, 1 ½” | |
| Connection inlet UVC | mm | 19 / 25 / 32 / 38 / 50 |
| Connection inlet UVC | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Connections, outlet filter | DN 75 | |
| Sludge discharge connections | DN 50 | |
| Corresponding filter/watercourse pump | AquaMax Eco Premium 21000 | |
| Dimensions pump (L x W x H) – mm | mm | 340 x 280 x 160 |
| Rated voltage Pump | 220 – 240 V / 50 – 60 Hz | |
| Power consumption pump | W | 180 |
| Max. flow rate | l/h | 12500 |
| Guarantee (+ request guarantee) pump | Years | 3 + 2 |
| Power cable length pump | m | 10.00 |
| Suitable for ponds up to max. | m3 | 90.0 |
| Suitable for ponds with fish stock | m3 | 45.0 |
| Suitable for ponds with koi | m3 | 22.5 |
