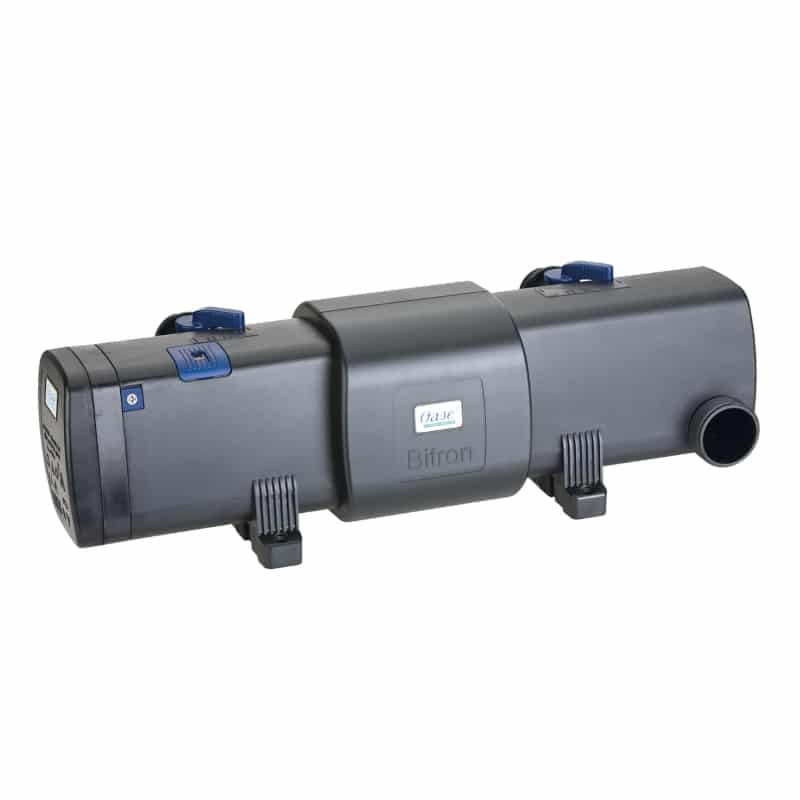

Oase Bitron C 36 Watt UVC
The UVC clarifier OASE Bitron C 36 W removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. Eye protection guaranteed by 100%, VDE-tested safety. With a power consumption of 36 watts, 4,500 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 36 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ “(19 mm) to 2” (51 mm). The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Optimal for connection to BioSmart 18000/36000 and BioTec Screenmatic 12-18.
- Clever bypass system combines high flow rates with duration of radiation
- Permanent self-cleaning thanks to patented cleaning rotor
- Highly effective against suspended algae, bacteria and germs
Oase Bitron C 36 Watt UVC Product characteristics
- Elimination of suspended algae (green water)
- Reduction of harmful bacteria and pathogen levels
- Clever UVC function monitor, display for bulb change and water temperature
- Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
- Individual water flow adjustment for optimal adaptation to the connected filter pump
- Integrated magnets protect the UVC technology against limescale deposits
- Visual function check of the UVC bulb
- 100%, VDE-certified safety; does not cause eye injuries
- Quick release technology for easy bulb replacement
- High-quality workmanship with impact resistant plastic housing
- Incl. high quality UVC bulb
- Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
- Suitable for ponds up to 40.0 m³

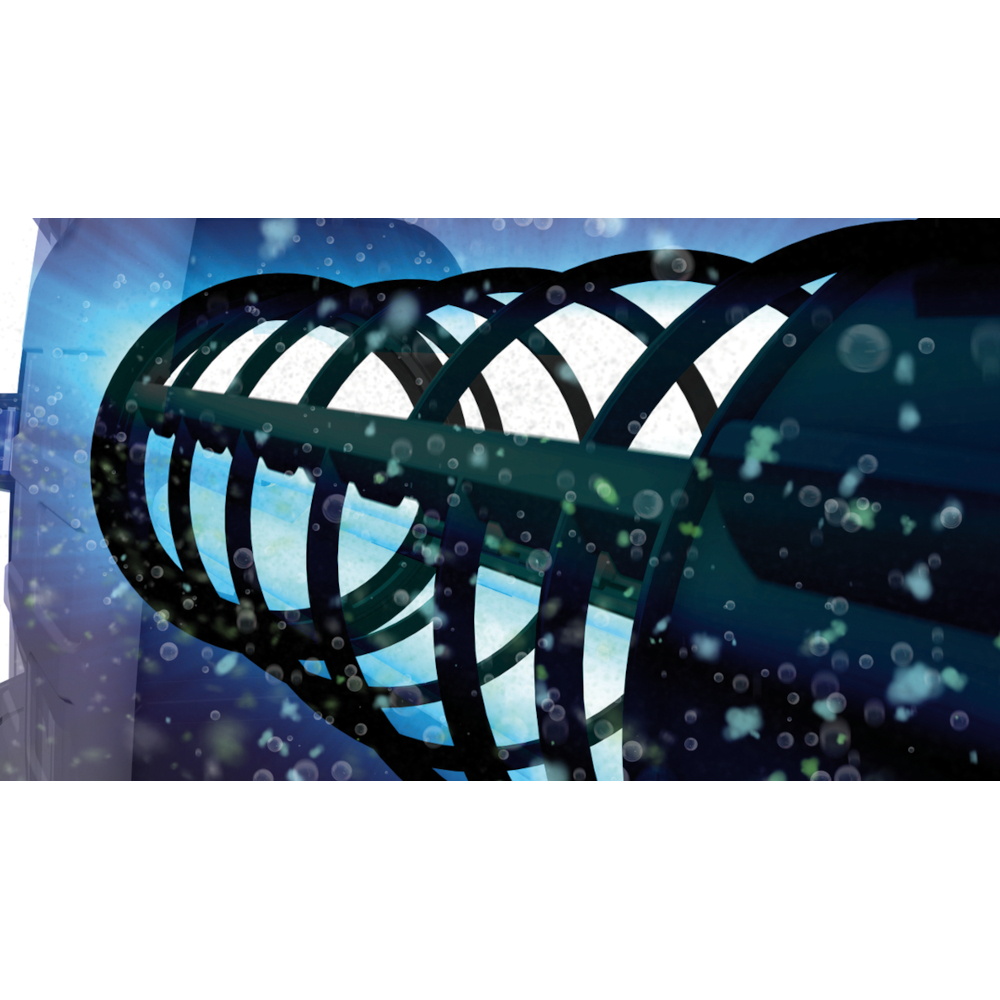

Automatic cleaning rotor
The automatic cleaning rotor is continuously guided around the quartz glass tube by the water flow and prevents debris from settling.

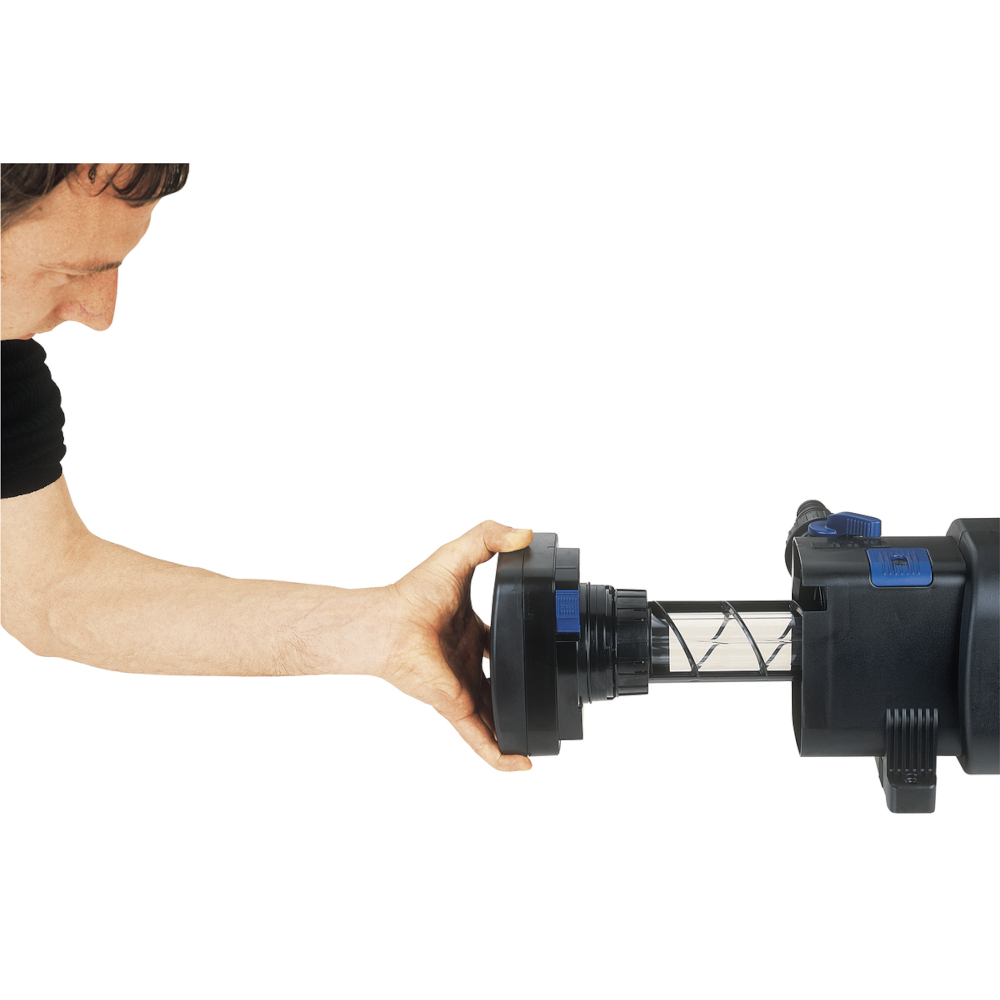

Closure technology
Quick release closure for easy opening of the bulb housing. A safety switch deactivates the UVC bulb automatically for protection against eye injury.

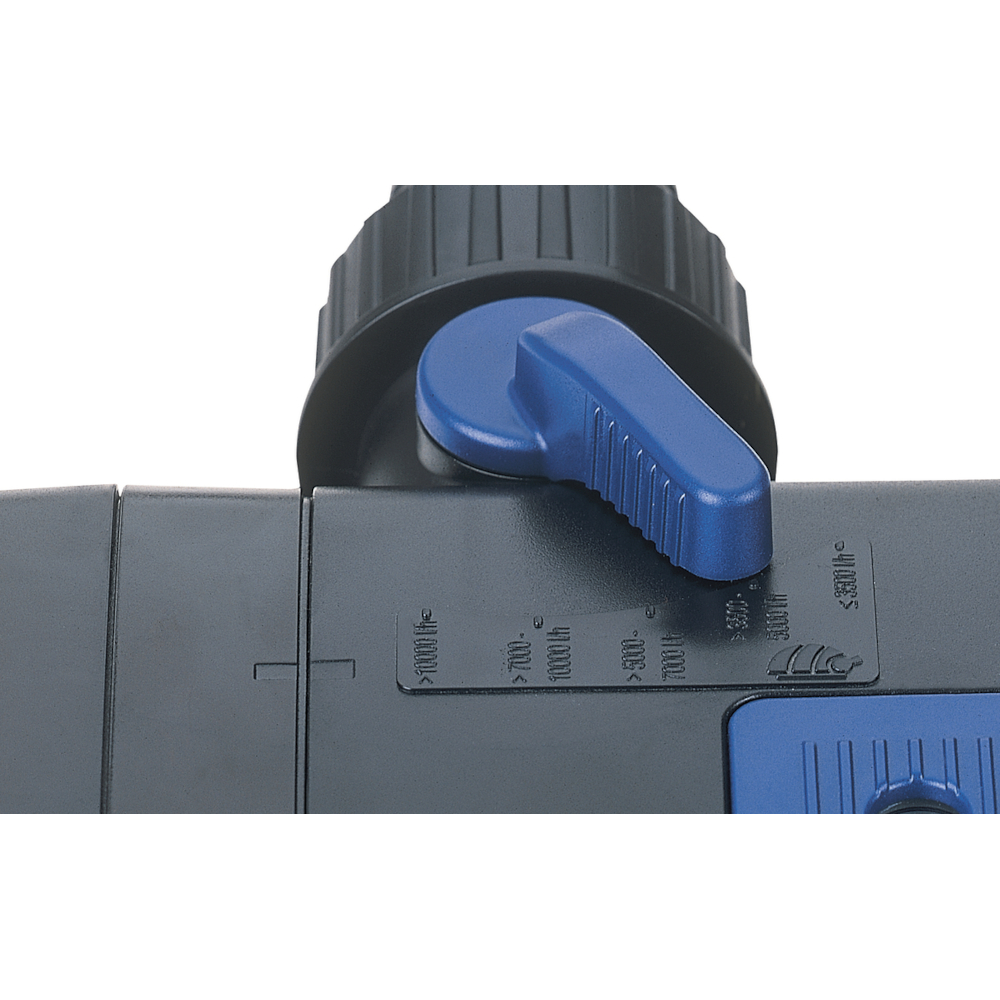

Throttle handle
Easy adjustment of the water flow rate.

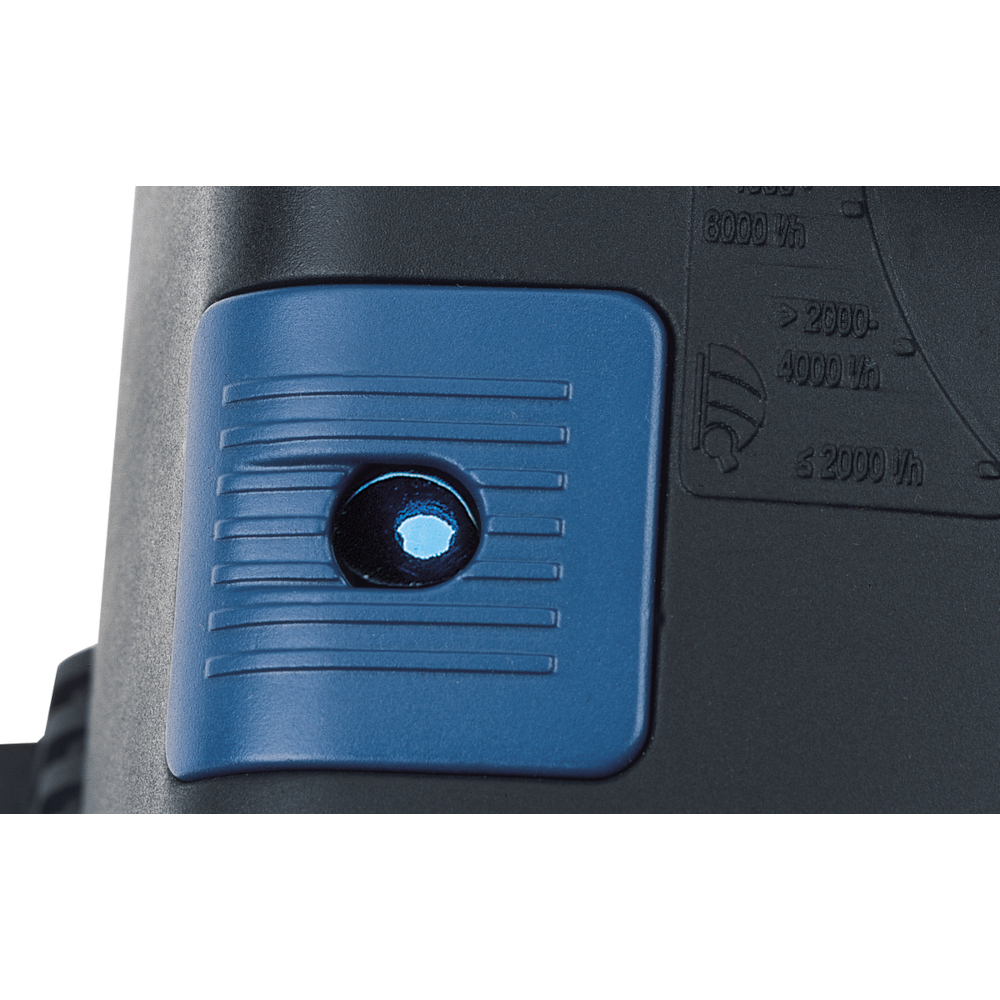

Inspection window
The function of the UVC bulb can be checked at any time through the inspection window.
Technical data
| Dimensions (L x W x H) | mm | 600 x 180 x 198 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 36 |
| Power cable length | m | 5.00 |
| Net weight | kg | 3.97 |
| Guarantee | Years | 2 |
| UVC power | W | 36 |
| Temperature display | No | |
| Bypass control | manually | |
| UVC-operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Unit | 1 |
| Connection inlet | mm | 19 / 25 / 32 / 38 / 50 |
| Connection inlet | ¾”, 1″, 1 ¼”, 1 ½”, 2″ | |
| Number of outlets | Unit | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Connections, outlet | 1″, 1 ¼”, 1 ½” | |
| Litres per hour, min. | l/h | 8000 |
| Max. flow rate | l/h | 30000 |
| Max. operating pressure | bar | 0.5 |
| Suitable for ponds up to max. | m³ | 40.0 |
| Suitable for ponds with fish stock | m³ | 20.0 |
| Suitable for ponds with koi<span class=”sternhochgestellt”> *1</span> | m³ | 10.0 |
| Connection to | BioSmart 18000/36000, BioTec ScreenMatic² 40 – 60000 |
