Oase Bitron Eco 240 W UVC

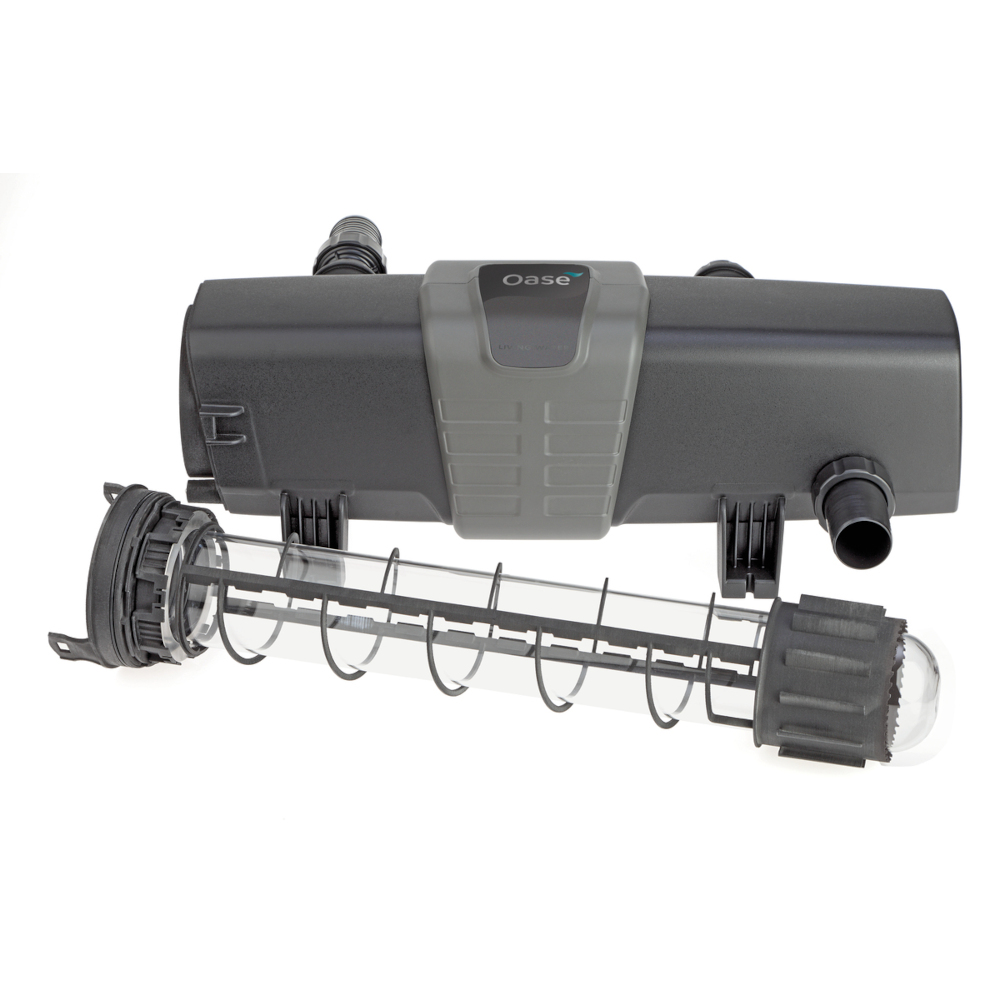

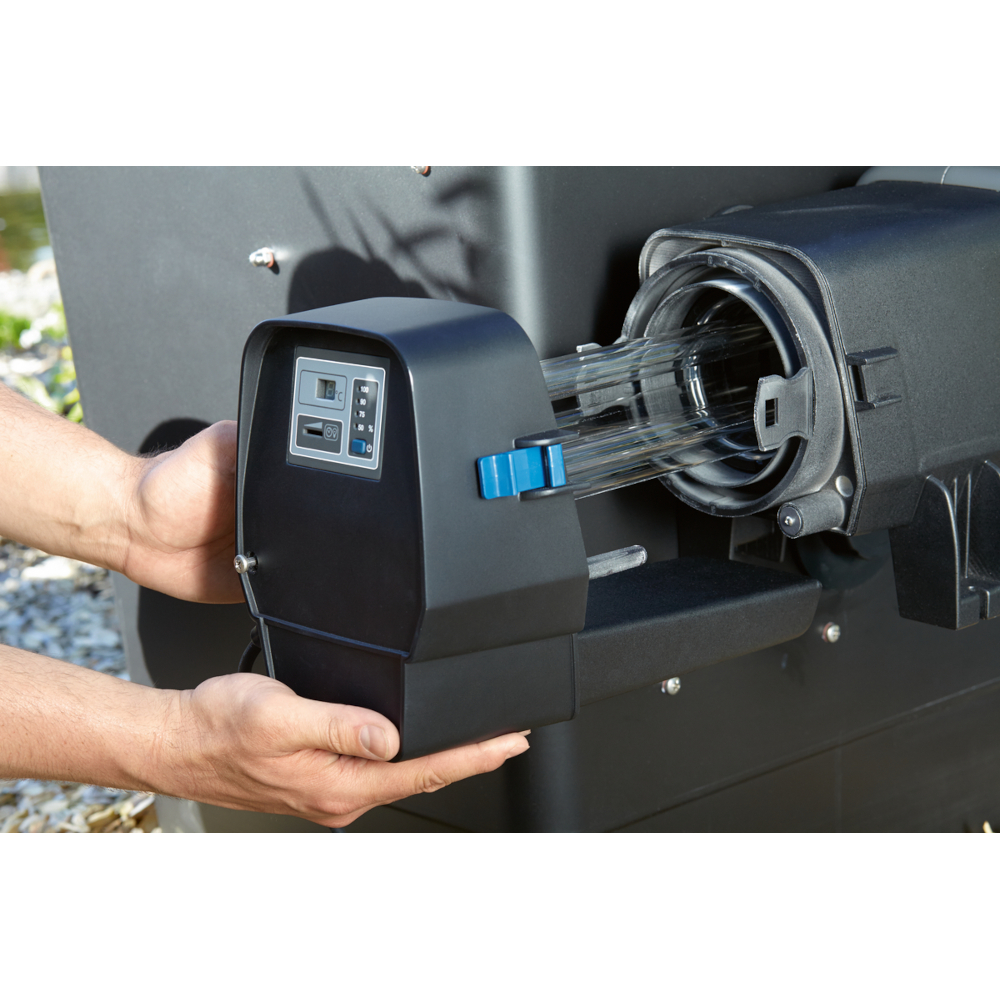

The revolutionary UVC clarifier Bitron Eco with 240 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child’s play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 1/2 “and 2” connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 145. You receive a guarantee of 2 years + 1 year requirement guarantee.
Features:
- Maximum efficiency, thanks to perfect combination of flow rate and irradiation intensity
- Reduced bulb costs thanks to 50% longer service life (12,000 h)
- Energy costs reduced up to 50% with the same cleaning capacity*
Characteristics:
- FEASIBLE: Easy connection to other 2″ filter systems
- NEW: Large-volume UVC housing with new design and organic shape, for a particularly long retention time and treatment of the water
- BYPASS: The integrated bypass membrane regulates the water distribution fully automatically based on the water flow and adapts to changing conditions such as the Seasonal Flow Control System

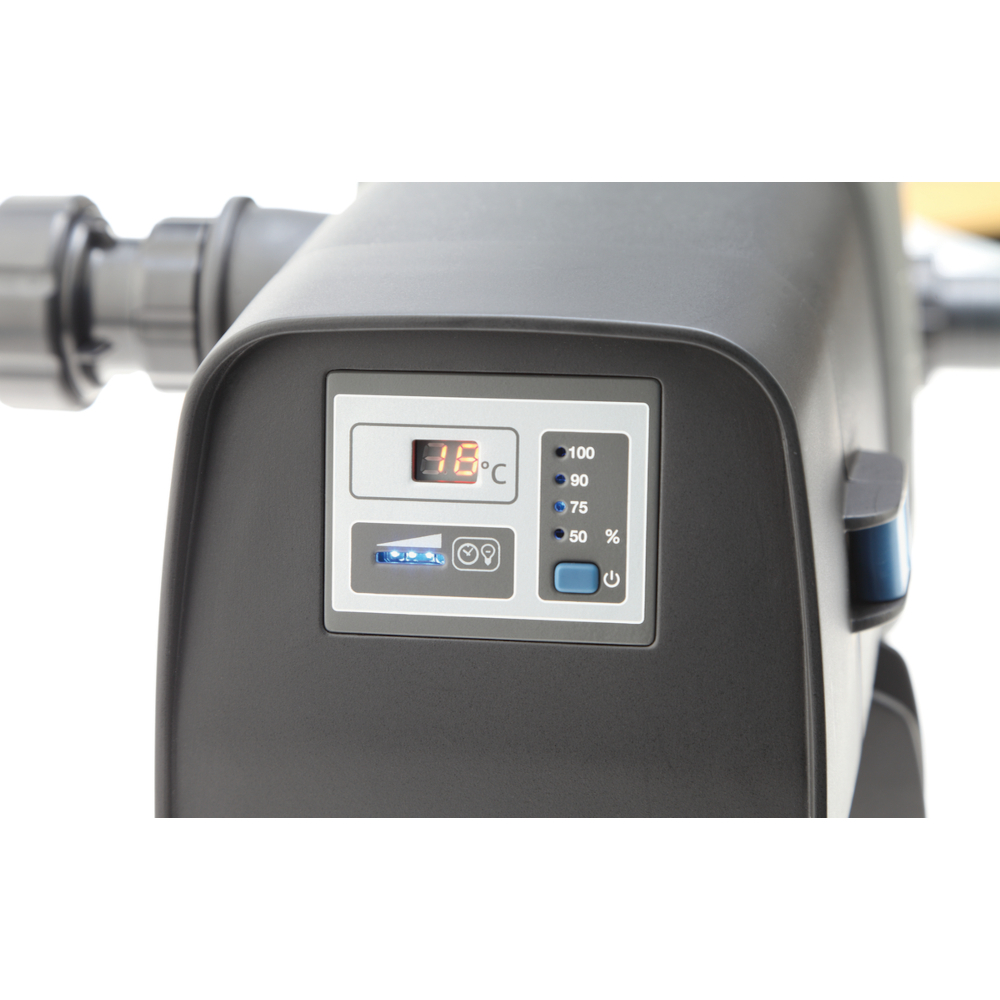

- AUTOMATIC: The control unit not only automatically shows you the current status of your lamps and the water temperature, it also allows you to adjust the output according to your needs
- GUARANTEED: Includes OASE clear water guarantee (in conjunction with the OASE flow-through filters BioSmart, BioTec and ProfiClear)
- CLIMATE PROTECTION: Eco mode saves up to 525 kg CO2/year*2
- UP TO 50 PERCENT LESS: The eco control system enables maximum energy efficiency with such a high savings potential
- ANY TIME: Fully effective UVC radiation thanks to patented automatic cleaning of the UV lamp
- EFFECTIVE: Highly intensive treatment of suspended algae, turbidity and harmful bacteria in pond water
- WELL PROTECTED: 100% protection against eye damage
Technical Data:
| Dimensions (L x W x H) | mm | 725 x 227 x 248 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 240 |
| Power cable length | m | 5.00 |
| Net weight | kg | 8.45 |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| UVC power | W | 240 |
| Temperature display | Digital | |
| Bypass control | automatic | |
| UVC operating hours meter | 12000 h | |
| Function check | LED | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 38 / 50 |
| Inlet connections | 1 ½”, 2″ | |
| Number of outlets | Units | 1 |
| Connections, outlet | mm | 38 / 50 |
| Outlet connections | 1 ½”, 2″ | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 50000 |
| Max. operating pressure | bar | 1 |
| Suitable for ponds up to max. | m3 | 240.0 |
| Suitable for ponds with fish stock | m3 | 120.0 |
| Suitable for ponds with koi | m3 | 60.0 |
| Connection to | BioTec 30, BioTec ScreenMatic2 145000, ProfiClear |
