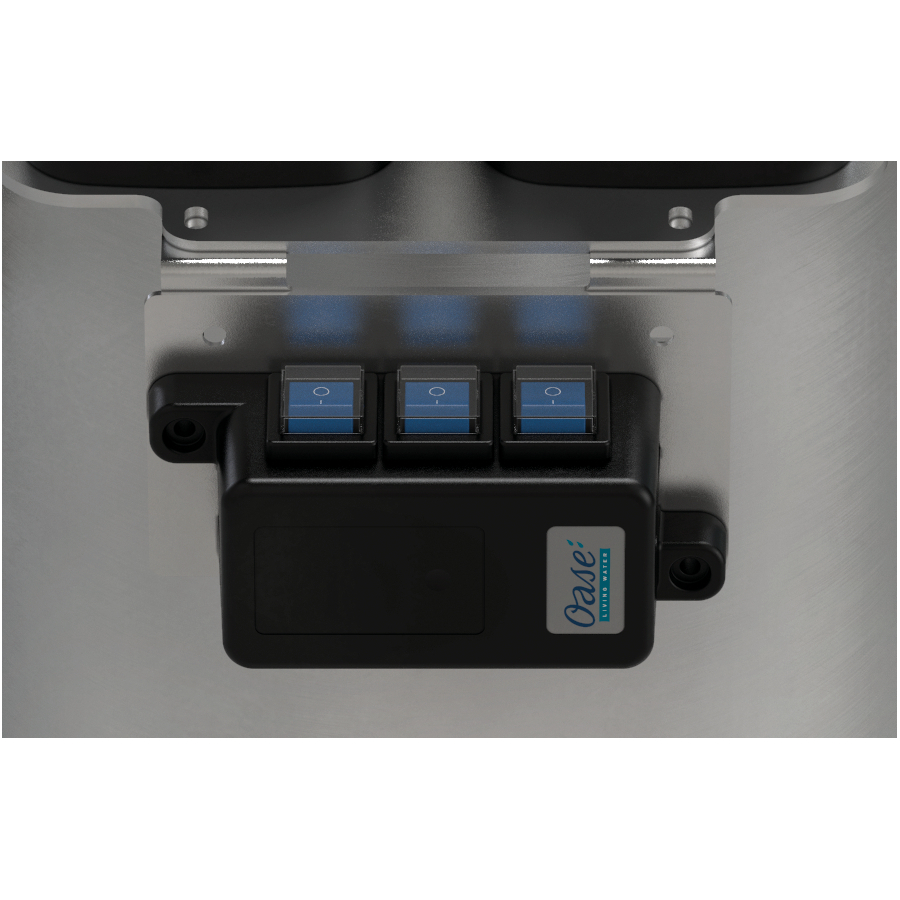

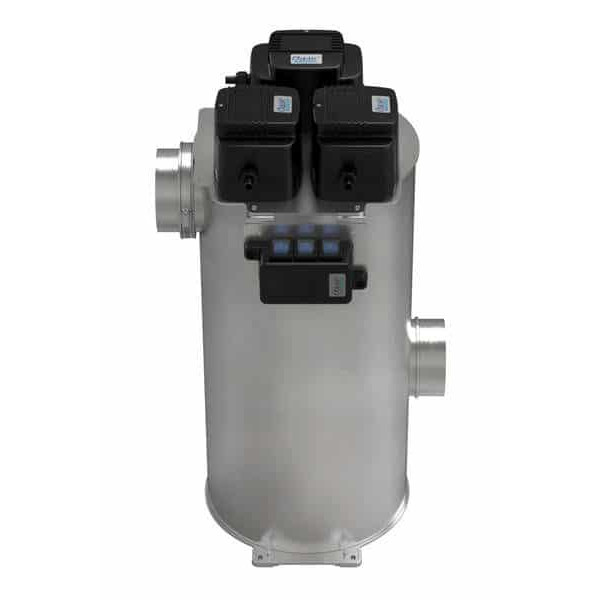

Oase Bitron Premium 180 W UVC

The Amalgam Submersible UV 80

The Amalgam Submersible UV 80 watt are the most effective form of uvc to date !

The Air Aqua Amalgam provides radiation with a wavelength of 253.7nm which is generated by the special light source UV lamp, Ensuring a lethal effect on bacterial.

The  Amalgam UV radiation neutralizes bacteria, viruses and other primitive organisms, stopping them form multiplying. The unit has a built in high frequency electronic ballast which absorbs current fluctuations and protects the lamp inside the unit.

Specification:

• Amalgam Submersible UV 80 watt
• For Ponds up to 60 m3 – 13000 gallons
• Energy-saving: Amalgam saves 50-70% compared to normal TL-lamps
• Optimal operation up to 16,000 (amalgam) hours
• Short length: ideal for integration for Sieves or Drum Filters
• No resistance in the system (from extra pipework)
• Length 78 cm

The Amalgam Submersible UV 80 watt lamp is not affected by temperature fluctuation in the water and generates a constant powerful output and is know as being the most powerful uv-c on the market !

Yamitsu Algae Master Pond UV Clarifier 15W

Yamitsu algae master uv’s are made from UV stabilised materials to ensure a longer life and incorporate turbulators to enhance the unit’s performance. Large inlet and exhaust ports make the algae master uv suitable for a wide range of pond uv applications. It is recommended that the algae master uv should be installed using solid solvent weld pipe.

However, all algae master uv’s come complete with free (glue in) hosetails enabling them to be connected to ½”, ¾”, 1″, 1¼” and 1½” flexible pipe. Algae master uv’s will also fit most popular 1½” household solvent weld waste and pressure pipes.

Yamitsu Algae Master Pond UV Clarifier 15w Installation

If you have a severe algae problem you should effect a partial water change before starting the installation. Yamitsu Algae Master Pond UV can be added to any existing filtration system. For best results algae master units should be fitted in line, after the pump, with water being forced through them. Use the largest size of pipe possible. If hosetails are to be used, it is very important that they are trimmed to the largest possible size that will fit inside the flexible pipe (before glueing in place). This will ensure that the maximum flow rate can be obtained for the size of pipe.

Yamitsu Algae Master UV Maintenance

Although maintenance is minimal all UV lamps need replacing at six monthly intervals. The algae master’s uv lamp may be illuminated and appear to be working but the radiation dosage diminishes with age and is ineffective after six months. Dispose of used uv lamps sensibly. Even exhausted uv lamps should NEVER be looked at directly when illuminated.

As the algae master uv is dependant upon water passing through it, it is important to ensure that any pump strainers, pre-filters or delivery pipes are not blocked or are causing the flow to be restricted.

Oase Bitron Eco 120 W UVC

The revolutionary UVC clarifier Bitron Eco with 120 W power removes floating algae and harmful bacteria with maximum efficiency. Thanks to the automatic bypass regulation and the significantly enlarged housing, an optimal irradiation result is always guaranteed, even with changing flow rates of up to 50,000 l / h. The clever eco-control regulates the irradiation time depending on the seasonal needs. This enables energy savings of up to 50% to be achieved! You can also save on the light sources, because the newly developed 60W UVC lamp has a service life of 12,000 hours that is 50% longer. In addition, changing the lamp is now child’s play and without dismantling the quartz glass. The proven automatic cleaning system is also included, an LED UVC control as well as a display for lamp change and water temperature. Thanks to the protection class IP68, the Bitron Eco can be set up directly on or even in the pond. The cable length is 5 m, the nominal voltage 220 – 240/50 Hz. The Bitron Eco enables a 1 1/2 “and 2” connection. Optimal for connection to ProfiClear, BioTec 30, BioTec ScreenMatic 36. You receive a guarantee of 2 years + 1 year requirement guarantee.

• Maximum efficiency, thanks to perfect combination of flow rate and irradiation intensity
• Reduced bulb costs thanks to 50% longer service life (12,000 h)
• Energy costs reduced up to 50% with the same cleaning capacity*
