Description
Oase Filtoclear Set 19000 OC

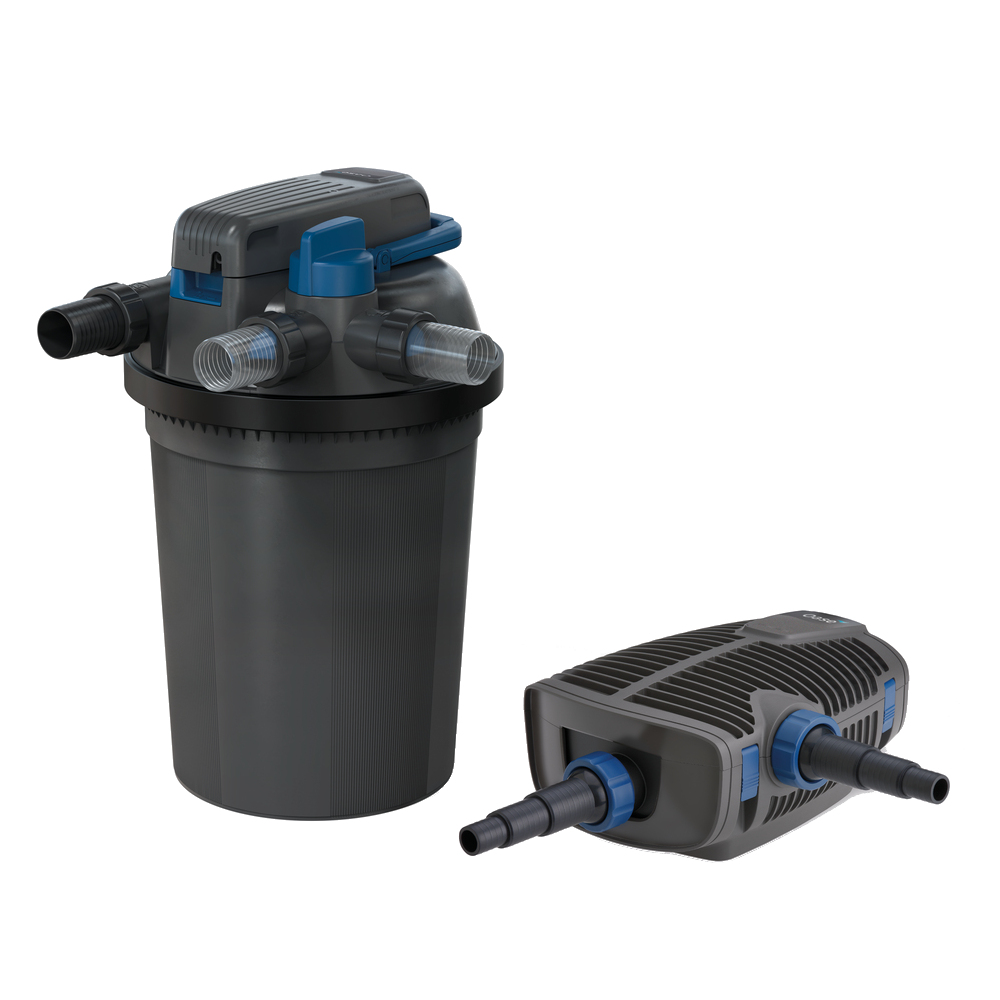

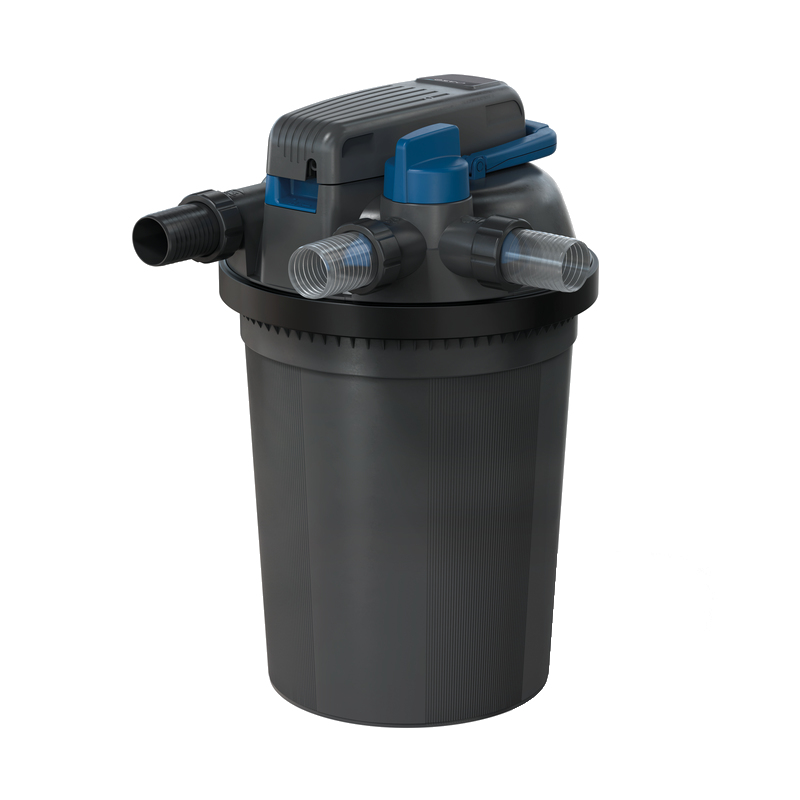

The Oase FiltoClear Set 19000 OC includes the Oase FiltoClear 19000 Pressure Filter with integrated 18w UVC and the new generation of ‘next level efficiency’ Oase AquaMax Eco Premium 13000 Filter Pump. The optimally matched pump and filter set create crystal clear ponds up to 19,000 litres without fish stock
The Oase Filtoclear Pond Filters are a highly developed range of pressure filters designed with ease of use and quality filtration in mind.
Pond water is pumped into a sealed filter unit creating a pressure of up to 0.2 bar. This in turn means that water leaves the filter under pressure, allowing the water to be pushed up to a waterfall, unlike a conventional gravity return filter, which must always be positioned at the highest point of the system.
The Filtoclear pressure filter also has been designed with all the connections and major operating elements in the lid allowing the filter to be partly buried out of sight
Oase has always created high-quality solutions for natural-looking water gardens. FiltoClear is one of the cornerstones of our pond solutions. Now we are taking the pressure filter to a completely new level of quality:
The new OC filter sets allow integration into the Oase Control System using an Oase Garden Controller Cloud or Oase InScenio FM-Master Cloud along with Oase Control Cables (available separately). Then Simply download the Oase Control app (from the App Store or via Play Store) – and off you go.
Features:
- Four clearly defined models for pond sizes with a volume of water ranging from 5000 to 31,000 litres – with and without fish stock
- New pull-out mechanism that allows filter sponges to be conveniently cleaned without having to get dirty or disassemble the whole filter
- UVC housing with increased UV performance and simple lamp replacement while the filter is running
- UV cleaning rotor automatically cleans the quartz glass surrounding the UVC lamp – from FiltoClear 19000 onwards
- OASE Bypass technology ensures constant water flow and prevents clogging
- Three filter foams (instead of the two previously) for even more thorough cleaning – from FiltoClear 13000 onwards
- New clamping ring to make opening and closing the filter even easier
- Robust construction and materials ensure long service life
Characteristics:
- POND FILTER: Patented cleaning mechanism with optimised filter sponges

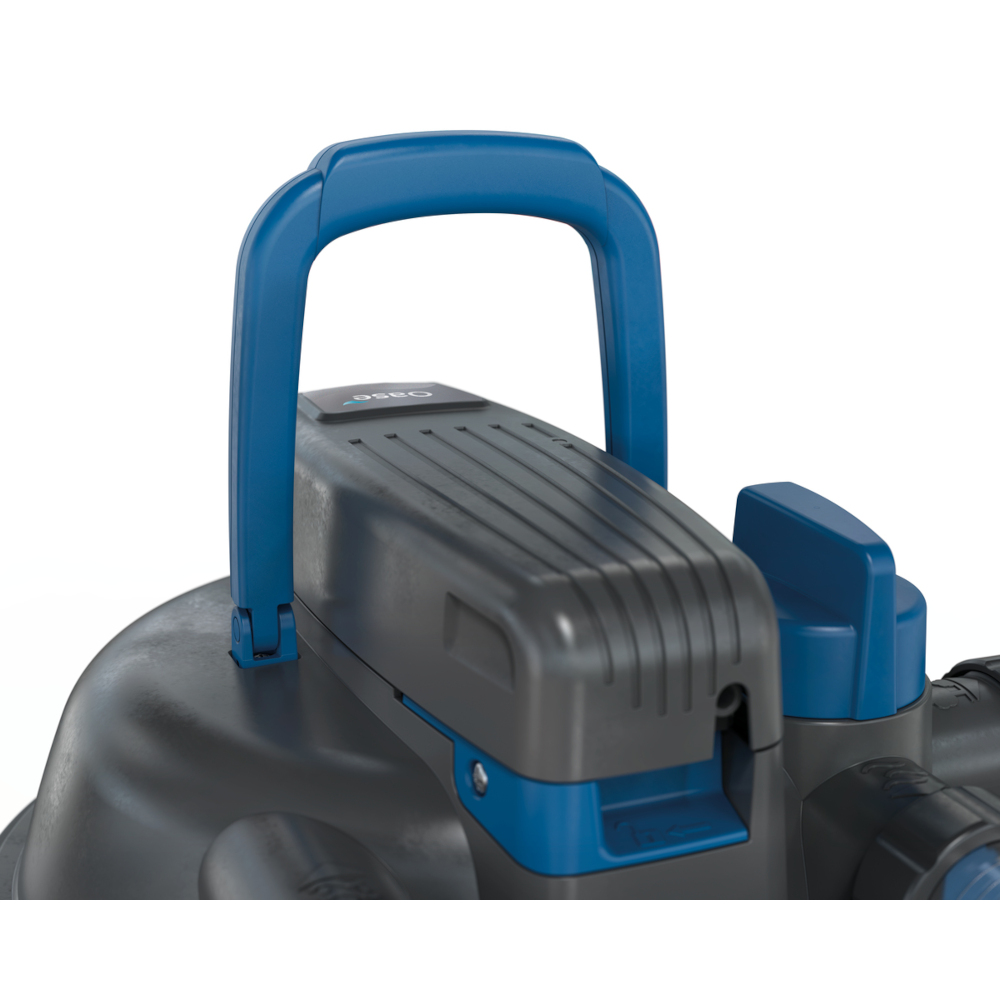

- CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism

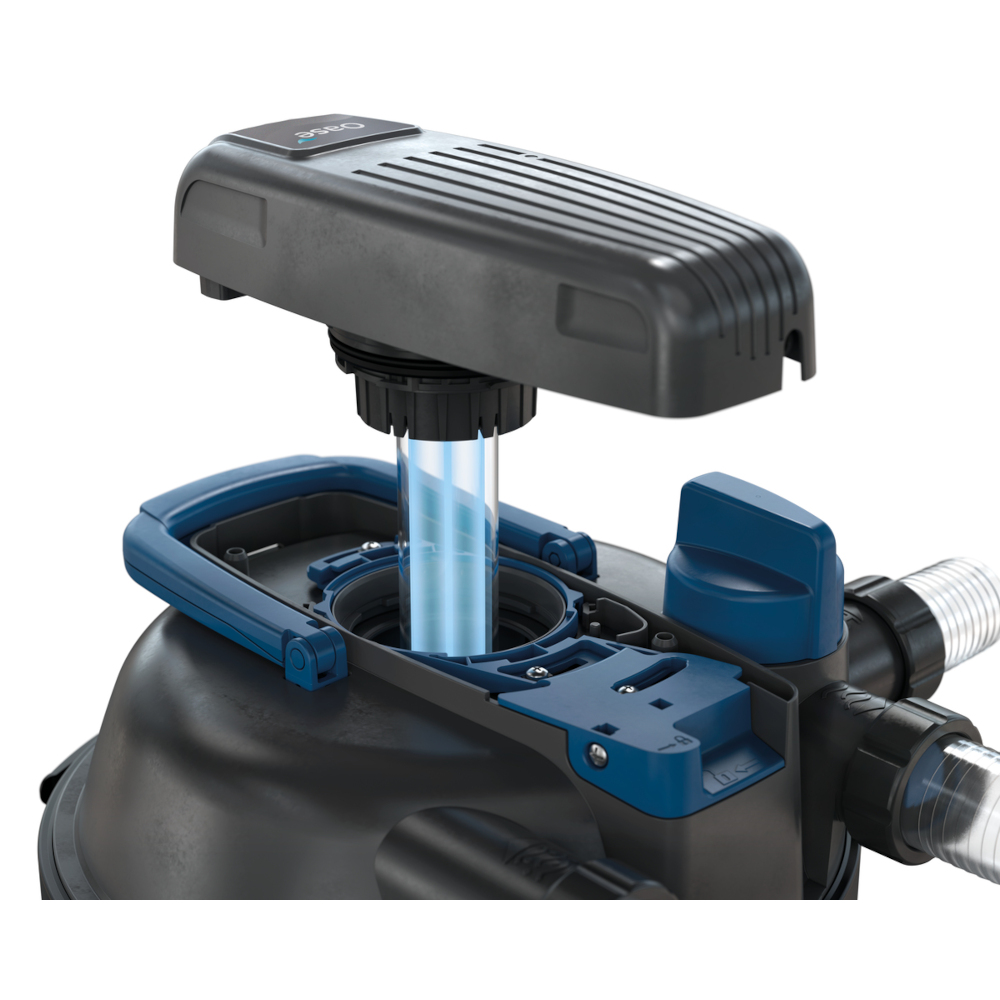

- CONVENIENT LAMP CHANGE: The UV lamp can be changed while the unit is running – no need to switch off the filter, no need to dismantle the quartz glass
- PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
- POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps

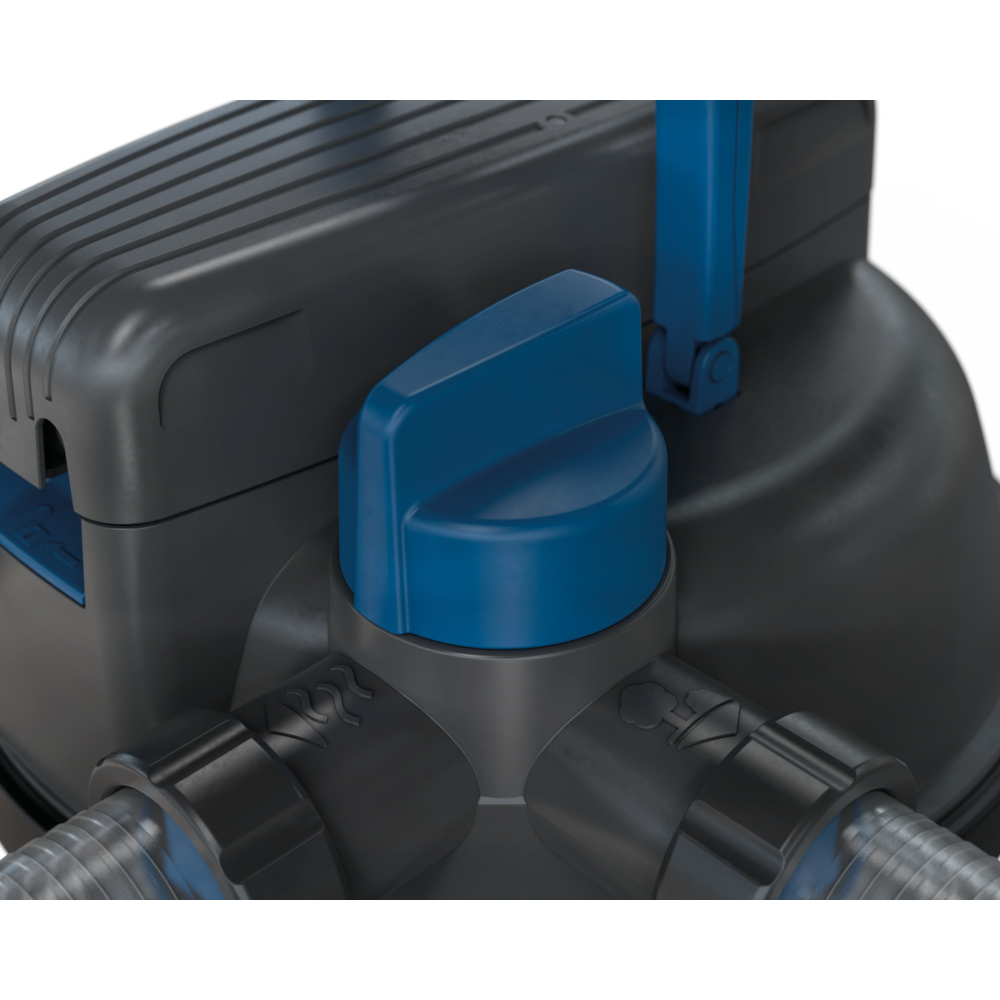

- 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
- IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
- STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability.

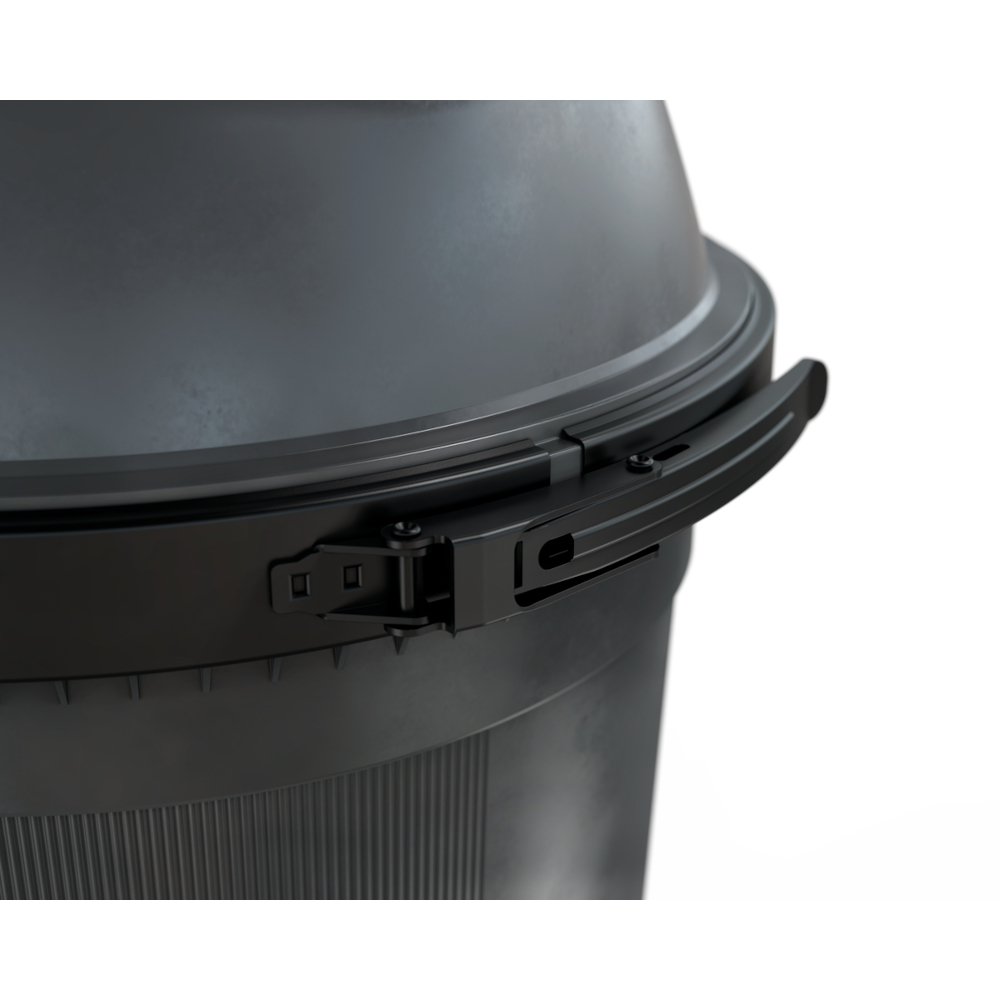

- UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before
Technical Data
| Filtoclear model |
5000
|
13000
|
19000
|
31000
|
||
| Dimensions in mm (Ø x H) |
380 x 310
|
380 x 510
|
380 x 630
|
380 x 750
|
||
| Hose connections (Inlet / Outlet and Sludge Outlet – fitting supplied) |
1 1/2″ (38mm) / 2″ (50mm)
|
|||||
| Max Pump Capacity (litres/hour) |
5000
|
8000
|
12000
|
15600
|
||
| Maximum operating pressure |
5 metres (0.5 bar)
|
|||||
| Pollutant Indicator |
Yes
|
|||||
| Integral Ultraviolet Clarifier (UVC) 230 volts |
18 watts
|
24 watts
|
42 watts
|
60 watts | ||
| Voltage |
230 V / 50 Hz
|
|||||
| UVC cable length |
5 metres
|
|||||
| Qty of coarse filter foams (blue) |
–
|
1
|
2
|
2
|
||
| Qty of medium filter foams (purple) | 1 | 1 | 1 | 1 | ||
| Qty of fine filter foams (red) |
1
|
1
|
1
|
2
|
||
| Max. volume for ponds without fish |
5000 L
|
13000 L
|
19000 L
|
31000 L
|
||
| Max. volume for ponds with goldfish |
2500 L
|
7000 L
|
10000 L
|
15000 L
|
||
| Max. volume for ponds with Koi Carp |
–
|
–
|
5000 L
|
7500 L
|
||
| Supplied Pump (FiltoClear SETS only) | AquaMax Eco Premium 5000 OC | AquaMax Eco Premium 9000 OC | AquaMax Eco Premium 13000 OC | AquaMax Eco Premium 17000 OC | ||
| Guarantee | Standard 2 year, which can be increased, free of charge, to 3 years by completion and return of the corresponding request card. | |||||
