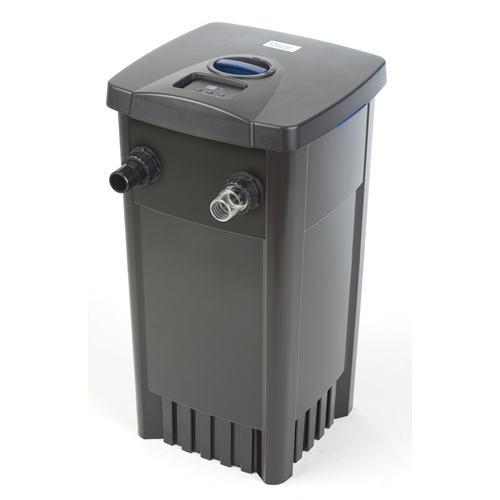

Oase Filtomatic 14000 CWS
Enjoy your pond – your pond manager FiltoMatic CWS 14000 does the work. This intelligent pond filter not only cleans ponds up to 14 m³, with fish up to 7 m³, but also gets rid of its own dirt inside. Thanks to the permanent temperature measurement of the water, the control unit starts the integrated 24 watt UVC clarifier with its patented cleaning function independently and as required, thus enabling electricity savings of up to 40%. The intelligence pays off. The control unit also automatically activates the sludge pump, which conveys the dirt out of the filter. This also reduces the growth of thread algae through permanent nutrient discharge. Cleaning the outside of the filter sponges is almost as easy and clean – without getting your hands dirty.
- Up to 40% power savings thanks to UVC unit that is activated as needed (as compared to devices without power saving function in continuous operation)
- Virtually invisible, the filter device can be buried to 70 % of the device height
- Low maintenance and user friendly
Automatic control unit
The innovative control system ensures energy savings through a temperature controlled UVC unit and automatic cleaning intervals.
Filter cover
Easy to open and close with one hand. Unintentional opening is prevented through integrated lock element.
Compact design
Strong filter effect in the smallest space. With the FiltoCap the device can be buried so that it is virtually invisible.
Cleaning
In addition to the automatic sludge discharge, the sponge elements are cleaned conveniently, your hands stay clean.
Oase Filtomatic 14000 CWS Product characteristics:
- Intelligent control system adjusts the filtration capacity to the seasonal requirements of the pond
- Up to 40% power savings thanks to UVC unit with patented self-cleaning that is activated as needed; also includes oxygen enrichment
- Incl. OASE Clear Water Guarantee
- Virtually invisible, the filter device can be buried to 70 % of the device height
- Cleaning effort is reduced thanks to automatic sludge discharge of the filter
- Convenient cleaning of the filter foams
- Long service life and high quality filter sponges offer the best conditions for the filter biology
- Less string algae through continuous removal of phosphates and nutrients
- Interval cleaning, UVC and pump function can also be controlled manually
- Special space saving filter design
- Determination of the specific replacement requirement of the bulb thanks to UVC operating hours meter
- Easy installation, low maintenance and user friendly
- Available in three different sizes
- Suitable for ponds up to 14.0 m³
Technical data
Dimensions (L x W x H) | mm | 380 x 380 x 720 |
---|---|---|
Rated voltage | 230 V / 50 Hz | |
Power consumption | W | 27 |
Power consumption cleaning | W | 54 |
Power cable length | m | 10.00 |
Net weight | kg | 10.70 |
Guarantee (+ request guarantee) | Years | 2 + 1 |
UVC power | W | 24 |
Number of purple filter foams | Unit | 2 |
Number of red filter foams | Unit | 1 |
Temperature display | Digital | |
UVC-operating hours meter | 8000 h | |
Connection inlet | mm | 38 |
Connection inlet | 1 ½” | |
Connections, outlet | DN 75 | |
Connections, sludge discharge | DN 40 | |
Litres per hour, min. | l/h | 3500 |
Max. flow rate | l/h | 5000 |
Suitable for ponds up to max. | m³ | 14.0 |
Suitable for ponds with fish stock | m³ | 7.0 |
Suitable for ponds with koi | m³ | 3.5 |
