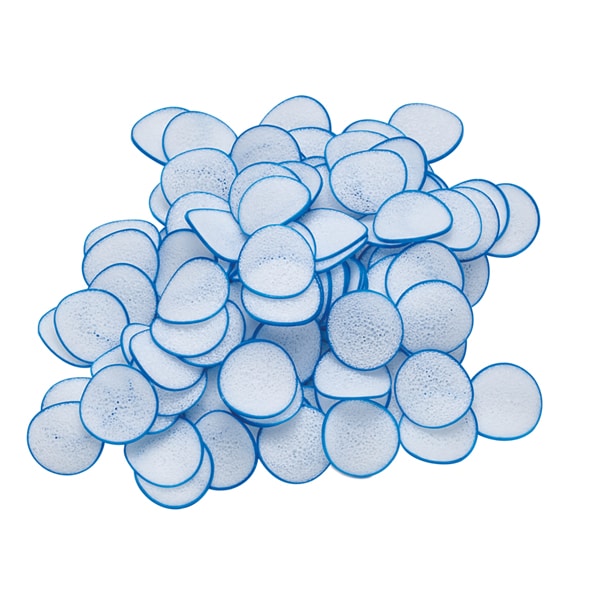

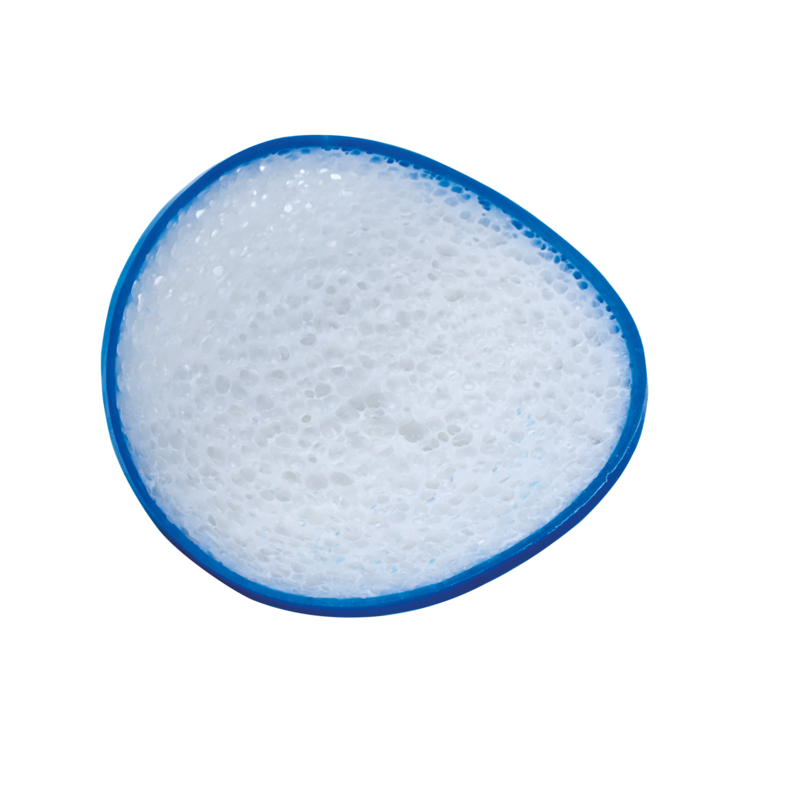

Oase Pond Pads

K1 Micro Filter Media

K1 Micro Filter Media is specifically designed for use in bead filters, conventional pond filters and aquarium filters. K1 Micro has the same wheel shaped design as K1 Media, but it has an increased protected surface area of 950 m2 per m3.

The wheel shaped structure of K1 Micro is designed specifically to create the most effective environment for the nitrification process to take place. As K1 Micro media matures, bacteria colonises in the “quiet areas” of each piece of media helping to improve nitrification / de-nitrification. This enables a well-balanced biological equilibrium to be sustained in your pond to keep fish healthy and the water crystal clear.

The small size of K1 Micro makes it ideal to be used a replacement for beads in a bead filter. Not only will the vast 950m2 per m3 protected surface area maintain a bio-film that helps to improve nitrification, water quality and clarity, but K1 Micro can offer many more benefits:

Increased protection for the bio-film. K1 Micro retains the bio-film within its wheel shaped structure.
Improved solids handling. A static bed of K1 Micro packs tightly together with areas for solid particles and fines to be captured, helping to reduce TDS levels.

Increased flow rate.K1 Micro allows enough water to flow evenly through media rather than tracking around a “clump” of beads. This means that flow rates are improved when using “like for like” pumps.

Reduced back pressure. The improved flow also reduces the back pressure or resistance inflicted on the pump. In turn this improves the pumps’ efficiency and may even result in the need for a lower rated pump which will ultimately save you money!

Improved cleaning. During a cleaning process, the bio-film remains protected within the K1 Micro.

Semi buoyant media. K1 Micro is a semi buoyant media which makes it ideal for a bead filter.

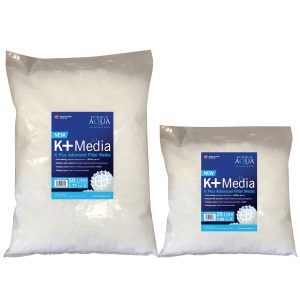

K+ Filter Media

New advanced filtration media

Plastic media, for use in biological pond filters – specifically in moving bed bio reactors, was pioneered by Evolution Aqua, some 20 years ago. In recent years, other plastic media have come onto the market, usually with the aim of trying to get more and more surface area. However, one drawback to using plastic media has always been the time it takes to establish a stable biofilm – essential for good filtration.

After many years of research, Evolution Aqua have now developed a new media that not only gives class leading surface area, but also overcomes the problem of long maturation times.

Class leading surface area

K+ Filter Media is designed and manufactured in the UK by Evolution Aqua. This advanced media, with its innovative design, and class leading surface area provides enhanced biological and mechanical filtration.

As Evolution Aqua extrude K+ Media, Minerals and Enzymes are added to the raw material. The result of this process, unique to Evolution Aqua, is a filtration media that not only out performs most of it’s competitors due to its large protected surface area, but also answers the problem of how to speed up the time taken to mature your filter.

Minerals added for faster filter maturation

During the extrusion process, Evolution Aqua add a range of minerals, along with magnesium, calcium, enzymes and salt to the raw material that is used to manufacture K+Media. The result means that K+Media will mature much faster than many other types of media.

• The addition of these minerals creates a rough surface on the media. This textured surface has a microscopic honeycomb of peaks and craters that allow waste particles to collect, and nitrifying bacteria to form.
• The minerals act as a food source for the bacteria, helping the bacteria to develop and multiply at a faster rate, further improving maturation times.
• Calcium alone has proven advantages for developing and maintaining effective bio-films.
• The enzymes that are added also help to make the media “sticky” so waste particles can adhere to media easier.
• Salt is added during the extrusion process, which is dissolved during the cooling process, leaving a rough surface on which bio-film can easily adhere.

Increased surface area

With a new shape and profile, K+ Filter Media has also been designed to have an increased and class leading surface area, meaning an overall surface area of 1,350m2 per m3. More importantly for biological filtration, the protected surface area of K+ Media is 1,025m2 per m3. This allows a stable bio-film to form and remain intact when used in moving bed biological filtration, as in the new Nexus+.

Stable bio-film development

The shape of K+ Filter Media optimises the amount of “quiet zones” within the media where a stable bio-film can develop. Whilst K+Media keeps the integral profile of K1 Media at its core, there is an extra layer of cells and fins around the outside of each piece that enable microscopic organisms such as Rotifers and Vorticella to thrive. This is an additional benefit as competitor media do not have such “quiet zones” that would allow these higher lifeforms of filter feeders to develop. The bacteria and organisms that form within the bio-film ensure the media delivers optimum levels of biological filtration in the moving bed, which has been proven filtration technology for many years in the fishkeeping hobby.

Evolution Aqua also recommend using K+ Media in combination with the PURE Pond and PURE+ Filter Start Gel to boost bacteria levels which in turn will stick to the media and speed up the maturation process even more.

Bio Carrier Hel-X

This type of media is kept moving via aeration in the filter; the so-called moving bed. This is often used in combination with a drum filter. It also provides excellent performance when used with a trickle filter.

Air-Aqua offers this media in three different diameters: 13 and 17 mm. The smaller the diameter, the greater the media surface area per m3.

13 mm -> 300,000 pieces/m3 -> 767 m2/m3
17 mm -> 150,000 pieces/m3 -> 595 m2/m3

This is available in 100 litre bags
