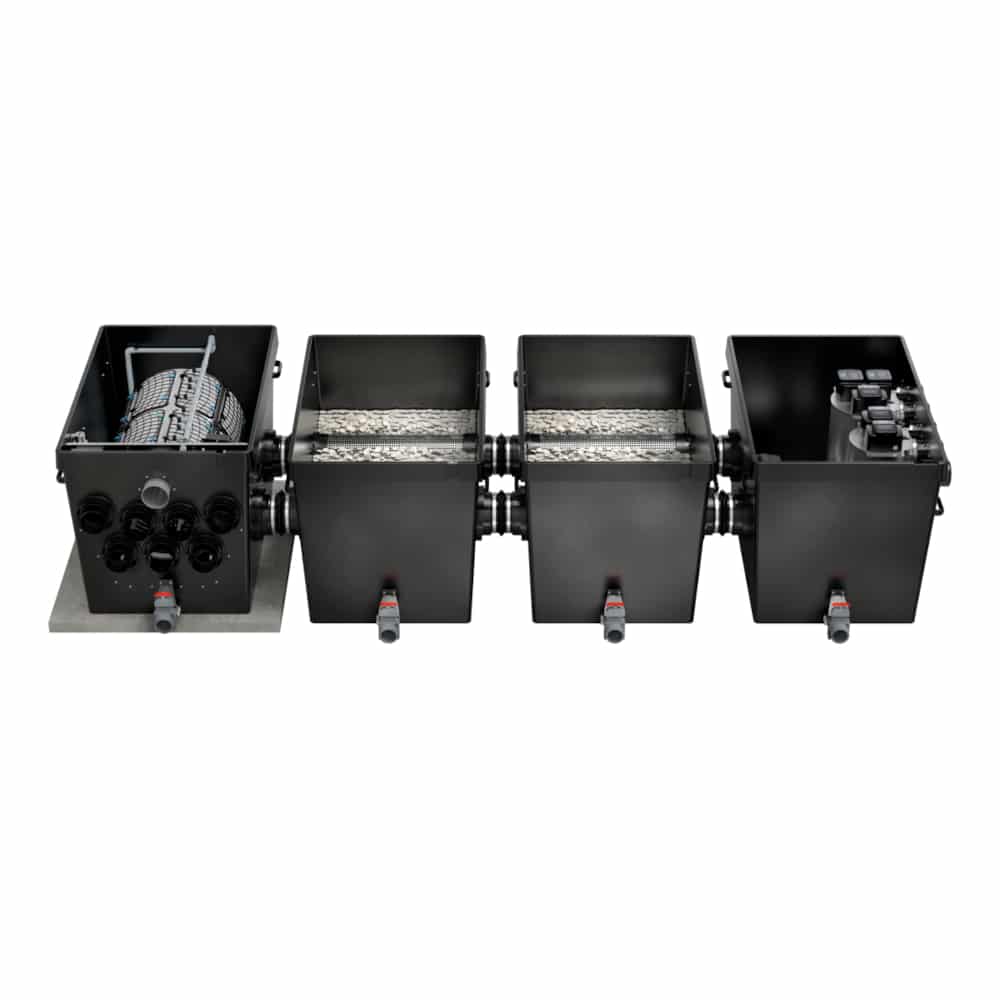

Oase ProfiClear Premium XL Drum Filter kit
  • Oase ProfiClear Premium XL Drum Filter kit

Oase ProfiClear Premium XL Drum Filter kit

From £979.99 inc. VAT

Oase ProfiClear Premium XL Drum Filter – Gravity EGC

Based on the highly successful OASE ProfiClear Premium L Drum Filter technology, the new ProfiClear XL pond filter system can be used to filter ponds up to 530,000 Litres (or 100,000 Litre Koi Ponds). The automated Drum Module has been oversized to remove particles and pollutants even in highly sedimented ponds. The XL Drum module is offered in both pump fed and gravity fed guises.

The Gravity Fed XL Filter Drum features 7 inlets for connection of up to 2 x Bitron Premium UVCs, Wall Skimmers or Bottom Drains. The 2 x 180mm outlets are designed for direct connection to the XL Moving Bed Module and/or Gravity Discharge Module. The Gravity XL Drum Filter Module is supplied with intelligent filter-mounted controller for automatic cleaning of the 16 individual drum filter sieves. The filter sieves will screen out debris down to 60 microns but can be changed to optional 30 micron or 150 micron sieves depending on the level of filtration required. The ProfiClear Gravity Fed XL Drum Filter can accept flow rates from 25,000 Litres/Hour up to 66,000 Litres/Hour.

Features:

  • Compact and self-cleaning drum filter units available in both pump and gravity fed versions
  • Premium drum filter and moving bed biological filter
  • High separating capacity through deep bed filtration down to 60 microns
  • New media with significantly enlarged surface area for effective decomposition of pollutants
  • New pump chamber for combination with Bitron UV Clarifiers
Oase ProfiClear Premium XL Drum Filter - Gravity EGC
Oase ProfiClear Premium XL Drum Filter - Gravity EGC
£5,709.99 inc. VAT
Oase ProfiClear Premium XL Moving Bed Module
Oase ProfiClear Premium XL Moving Bed Module
£1,984.99 inc. VAT
Oase ProfiClear XL Discharge Module - Gravity
Oase ProfiClear XL Discharge Module - Gravity
£1,949.99 inc. VAT
Oase Bitron Premium 120 W UVC
Oase Bitron Premium 120 W UVC
£1,114.99 inc. VAT
AquaMax Eco Titanium 30000
AquaMax Eco Titanium 31000
£979.99 inc. VAT
Categories: , ,

Description

Oase ProfiClear Premium XL Drum Filter – Gravity EGC kit

Based on the highly successful OASE ProfiClear Premium L Drum Filter technology, the new Oase ProfiClear Premium XL pond filter system can be used to filter ponds up to 530,000 Litres (or 100,000 Litre Koi Ponds). The automated Drum Module has been oversized to remove particles and pollutants even in highly sedimented ponds. The XL Drum module is offered in both pump fed and gravity fed guises.

The Gravity Fed XL Filter Drum features 7 inlets for connection of up to 2 x Bitron Premium UVCs, Wall Skimmers or Bottom Drains. The 2 x 180mm outlets are designed for direct connection to the XL Moving Bed Module and/or Gravity Discharge Module. The Gravity XL Drum Filter Module is supplied with intelligent filter-mounted controller for automatic cleaning of the 16 individual drum filter sieves. The filter sieves will screen out debris down to 60 microns but can be changed to optional 30 micron or 150 micron sieves depending on the level of filtration required. The ProfiClear Gravity Fed XL Drum Filter can accept flow rates from 25,000 Litres/Hour up to 66,000 Litres/Hour.

Oase ProfiClear Premium XL Features:

  • Compact and self-cleaning drum filter units available in both pump and gravity fed versions
  • Premium drum filter and moving bed biological filter
  • High separating capacity through deep bed filtration down to 60 microns
  • New media with significantly enlarged surface area for effective decomposition of pollutants
  • New pump chamber for combination with Bitron UV Clarifiers
TECHNICAL DATA
Dimensions (L x W x H) mm 1330 x 875 x 820
Rated voltage 230 V / 50 Hz
Power consumption W. 5
Power consumption, cleaning W. 1600
Cable length m 5.00 + 5.00
Net weight kg 125.00
Limited warranty Years 2 + 1
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction µm 60
Number of nozzles / rinse quantity 8 x 2.5 l / min
Scavenging pump 7 bar
Automatic rinsing system manually, sensor, time interval
Number of sieve elements Units 16
Filter intake surface cm 2 6900
material GRP Duroplast / stainless steel
Number of inlets Units 7th
Inlet connections DN 110
Number of outlets Units 2
Outlet connections 180 mm
Sludge discharge connections DN 75
Flush through connection DN 110
Connection to Bitron Premium, ProfiCl. Prem. XL discharge module grav., ProfiClear Premium XL Moving Bed
Min. Flow rate l / h 25,000
Max. Flow rate l / h 66000
Installation height above water level cm 13.5
Possible water level difference -20 mm
Type of use Gravity fed system
Other Pollutant discharge including slide valve

Why not check out some of our other filters? Click here.

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Manual





Oase ProfiClear Premium XL Drum Filter manual.pdf

Schematics

Schematics

Oase ProfiClear Premium XL Drum Filter – Gravity outlet sizes Oase ProfiClear Premium XL Drum Filter – Gravity inlet sizes Oase ProfiClear Premium XL Drum Filter – Gravity side sizes
