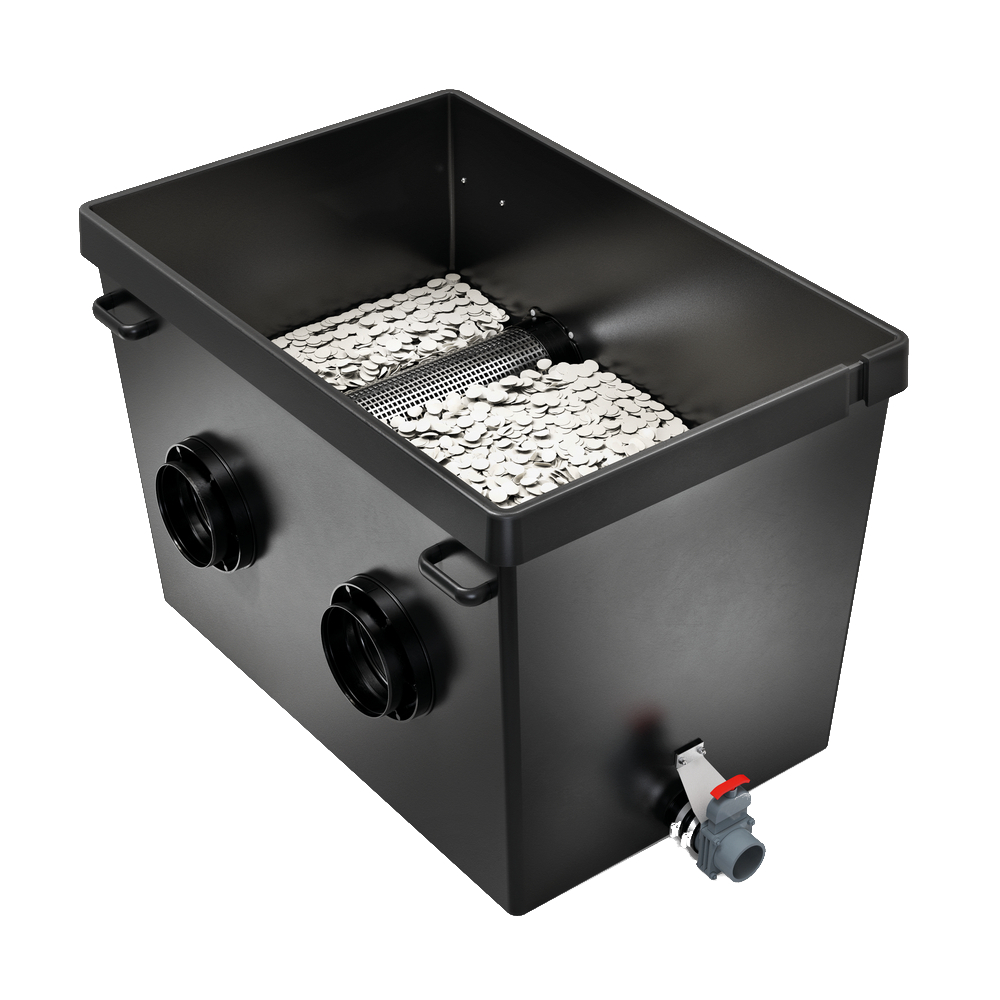

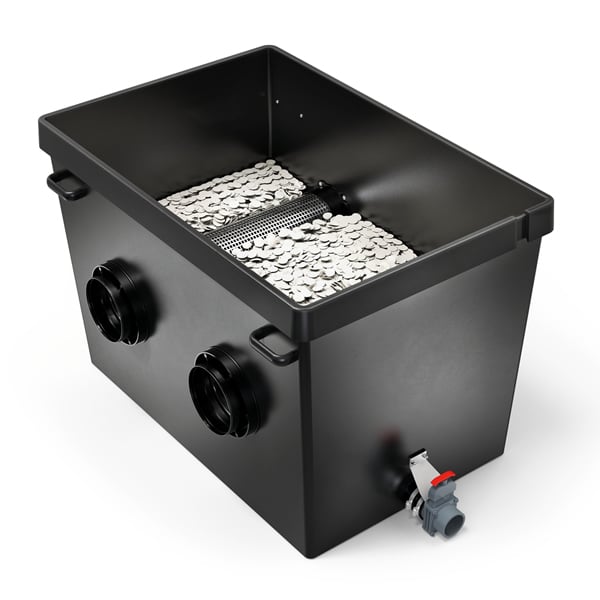

Oase ProfiClear Premium XL Moving Bed Module
  • Oase ProfiClear Premium XL Moving Bed Module
  • Oase ProfiClear Premium XL Moving Bed Module close up

Oase ProfiClear Premium XL Moving Bed Module

£2,099.49 inc. VAT

Oase ProfiClear Premium XL Moving Bed Module

The Oase ProfiClear XL Moving Bed Module has been designed for connection after the OASE ProfiClear XL Pump Fed Drum Filter or the XL Gravity Fed Drum Filter. The XL Moving Bed Module utilises special biological filter media in the form of innovative Pond Pads which allow the settlement of beneficial ‘friendly’ bacteria, to assist in the breakdown of pond and fish waste. The Pond Pads offer a huge biological settlement surface area and are capable of breaking down fish waste at the feeding rate of up to 150g of fish food per 10 litres of Pond Pads, every 24 hour.

The XL Moving Bed Module feature 2 x 180mm inlets (from Drum Filter exit) and 2 x 180mm outlets (for connection to the Discharge Module or an additional Moving Bed Module). The Module is fitted with a porous aeration bar which, when connected to a suitable Air Pump, will provide oxygen enrichment and movement to increase aerobic bacterial growth on the pond pads.

Characteristic:

  • Mature, professional technology with more than three years of development time
  • Highly effective decomposition of pollutants and nutrients thanks to professional filter media in the fluidised bed process
  • Incl. 60 litres OASE Pond Pads
  • Alternatively with 100 litres Hel-X available.
  • Innovative and reliable product Made in Germany
  • Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
SKU: (73367) Category:

Description

Oase ProfiClear Premium XL Moving Bed Module

The OASE ProfiClear XL Moving Bed Module has been designed for connection after the OASE ProfiClear XL Pump Fed Drum Filter or the XL Gravity Fed Drum Filter. The XL Moving Bed Module utilises special biological filter media in the form of innovative Pond Pads which allow the settlement of beneficial ‘friendly’ bacteria, to assist in the breakdown of pond and fish waste. The Pond Pads offer a huge biological settlement surface area and are capable of breaking down fish waste at the feeding rate of up to 150g of fish food per 10 litres of Pond Pads, every 24 hour.

The XL Moving Bed Module feature 2 x 180mm inlets (from Drum Filter exit) and 2 x 180mm outlets (for connection to the Discharge Module or an additional Moving Bed Module). The Module is fitted with a porous aeration bar which, when connected to a suitable Air Pump, will provide oxygen enrichment and movement to increase aerobic bacterial growth on the pond pads

Characteristic:

  • Mature, professional technology with more than three years of development time
  • Highly effective decomposition of pollutants and nutrients thanks to professional filter media in the fluidised bed process
  • Incl. 60 litres OASE Pond Pads
  • Alternatively with 100 litres Hel-X available.
  • Innovative and reliable product Made in Germany
  • Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
Technical Data
Dimensions (L x W x H) mm 1330 x 875 x 820
Net weight kg 101.60
Guarantee (+ request guarantee) Years 2 + 1
Biological filter surface m2 5000.0
Biological filter surface protected m2 300.0
Temperature display No
Material GRP Duroplast
Number of inlets Units 2
Inlet connections mm 180
Inlet connections 180 mm
Number of outlets Units 2
Outlet connections 180 mm
Sludge discharge connections DN 75
Connection to AquaOxy 4800, ProfiClear Premium DF-XL pump-fed EGC , ProfiClear Premium DF-XL gravity , ProfiClear Premium XL pump-fed drain module, ProfiClear Premium XL gravity-fed drain module
Min. flow rate l/h 25000
Max. flow rate l/h 66000
Installation height above water level cm 8.5
Type of use Gravity fed system, Pump fed system
Other Aeration pre-installed
Pollutant discharge incl. slide valve
