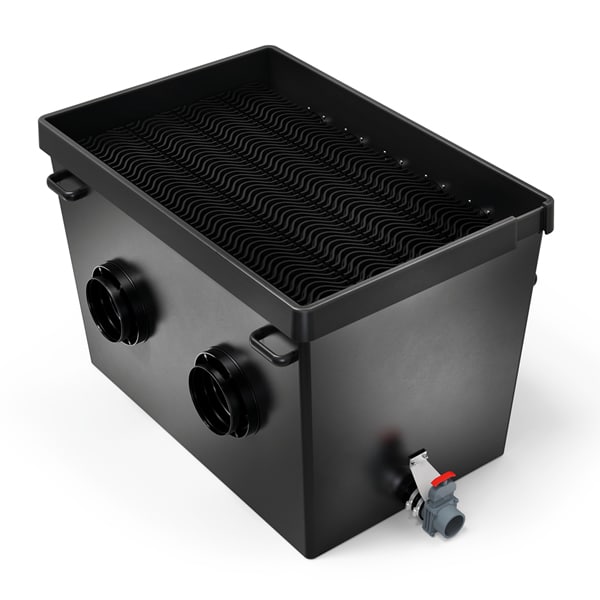

Oase ProfiClear XL Discharge Module - Pump Fed
  • Oase ProfiClear XL Discharge Module - Pump Fed
  • Oase ProfiClear XL Discharge Module - Pump Fed close up

Oase ProfiClear XL Discharge Module – Pump Fed

£2,149.99 inc. VAT

Oase ProfiClear XL Discharge Module – Pump Fed

The new ProfiClear XL Pumped Discharge Module has been designed to provide multiple return points of the processed water in a pump-fed, gravity return scenario.  The Pumped Discharge Module features 5 x DN110 return outlets to maximise the processed water flow back to the pond.

The XL Discharge module is the final stage of the ProfiClear XL filter system, connecting after the XL Moving Bed Module via 2 x 180mm inlets. Internally, the pump-fed discharge module features a specially developed fixed bed ‘Clear Wave’ biological segment which will drastically reduce biofilm via anaerobic bacterial breakdown.

Characteristics:

  • Mature, professional technology with more than three years of development time
  • A fixed bed filter (OASE ClearWave) in the pump-fed discharge module provides the final touch to achieve optimum water clarity
  • Highest flexibility due to 5 x DN110 outlets
  • Integrated bottom drain with high quality, finely engineered slide valve
  • Flexible adaptation of the filter system to individual requirements (individual module)
  • Innovative and reliable product Made in Germany
SKU: (73369) Category:

Description

Oase ProfiClear XL Discharge Module – Pump Fed

The new ProfiClear XL Pumped Discharge Module has been designed to provide multiple return points of the processed water in a pump-fed, gravity return scenario.  The Pumped Discharge Module features 5 x DN110 return outlets to maximise the processed water flow back to the pond.

The XL Discharge module is the final stage of the ProfiClear XL filter system, connecting after the XL Moving Bed Module via 2 x 180mm inlets. Internally, the pump-fed discharge module features a specially developed fixed bed ‘Clear Wave’ biological segment which will drastically reduce biofilm via anaerobic bacterial breakdown.

Characteristics:

  • Mature, professional technology with more than three years of development time
  • A fixed bed filter (OASE ClearWave) in the pump-fed discharge module provides the final touch to achieve optimum water clarity
  • Highest flexibility due to 5 x DN110 outlets
  • Integrated bottom drain with high quality, finely engineered slide valve
  • Flexible adaptation of the filter system to individual requirements (individual module)
  • Innovative and reliable product »Made in Germany«
TECHNICAL DATA
Dimensions (L x W x H) mm 1330 x 875 x 820
Net weight kg 101.60
Guarantee (+ request guarantee) Years 2 + 1
Temperature display No
Material GRP Duroplast/stainless steel
Number of inlets Units 2
Inlet connections mm 180
Inlet connections 180 mm
Number of outlets Units 5
Outlet connections DN 110
Sludge discharge connections DN 75
Connection to AquaOxy 2000, ProfiClear Premium DF-XL pump-fed EGC, ProfiClear Premium XL Moving Bed
Min. flow rate l/h 25000
Max. flow rate l/h 50000
Installation height above water level cm 32.0
Type of use Pump fed system
Other Aeration pre-installed
