Home » Shop » Pond Building Supplies » Skimmers » Oase ProfiSkim Wall 100
Oase ProfiSkim Wall 100
  • Oase ProfiSkim Wall 100
  • Oase ProfiSkim Wall 100 sizes

Oase ProfiSkim Wall 100

(2 customer reviews)

£282.99 inc. VAT

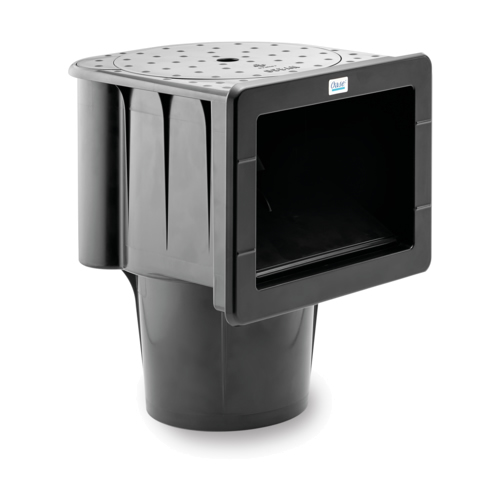

Oase ProfiSkim Wall 100

ProfiSkim Wall built-in skimmer sucks up dirt on pond surfaces of up to 30 m² before it can sink to the bottom. It has a DN 110 connection for optimal flow. The integrated dirt basket contains a pigging ladder. In the event that the small amphibians get in there, they can climb outside via a built-in staircase. In addition, the dirt basket can be easily removed for easy cleaning. There are useful accessories for the ProfiSkim Wall that you can purchase to individually install the built-in wall skimmer: wall extension, wide mouth extension, height extension and high-quality stainless steel panels.

Characteristics:

  • Skims off debris from a pond surfaces of up to 30 m²
  • For permanent installation in a wall
  • The technology is protected through an integrated debris basket with wildlife evacuation system
  • The debris basket is easy to take out for effortless cleaning from the front and from the top
  • With useful accessories (optional): Wall extension, wide-mouth extension, height extension and high-quality stainless steel covers

For the best possible result, the wall-installation surface skimmer should be installed on the side of the pond that is away from the wind.



SKU: SK230 (70895) Category:

Description

Oase ProfiSkim Wall 100

ProfiSkim Wall built-in skimmer sucks up dirt on pond surfaces of up to 30 m² before it can sink to the bottom. It has a DN 110 connection for optimal flow. The integrated dirt basket contains a pigging ladder. In the event that the small amphibians get in there, they can climb outside via a built-in staircase. In addition, the dirt basket can be easily removed for easy cleaning. There are useful accessories for the ProfiSkim Wall that you can purchase to individually install the built-in wall skimmer: wall extension, wide mouth extension, height extension and high-quality stainless steel panels.

Characteristics:

  • Skims off debris from a pond surfaces of up to 30 m²
  • For permanent installation in a wall
  • The technology is protected through an integrated debris basket with wildlife evacuation system
  • The debris basket is easy to take out for effortless cleaning from the front and from the top
  • With useful accessories (optional): Wall extension, wide-mouth extension, height extension and high-quality stainless steel covers

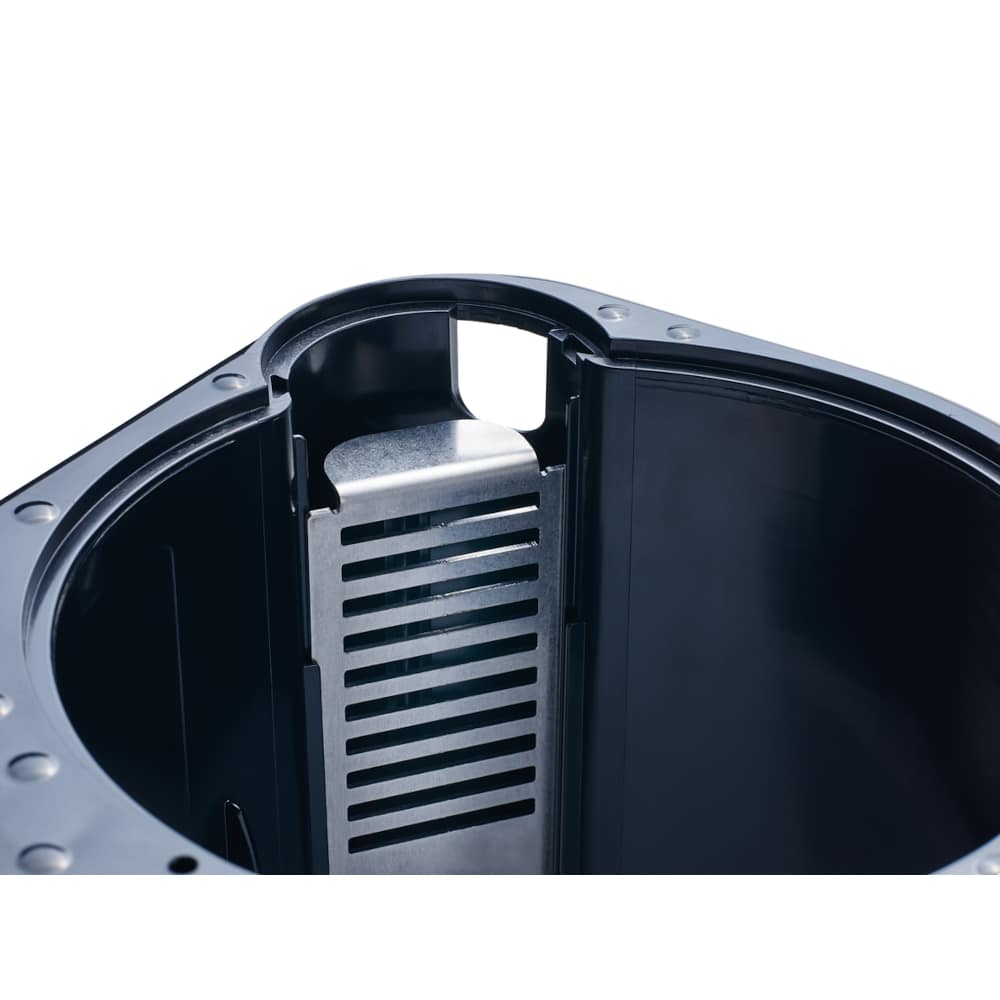

Newt ladder
The integrated newt ladder makes it easy for animals to leave the ProfiSkim Wall again.

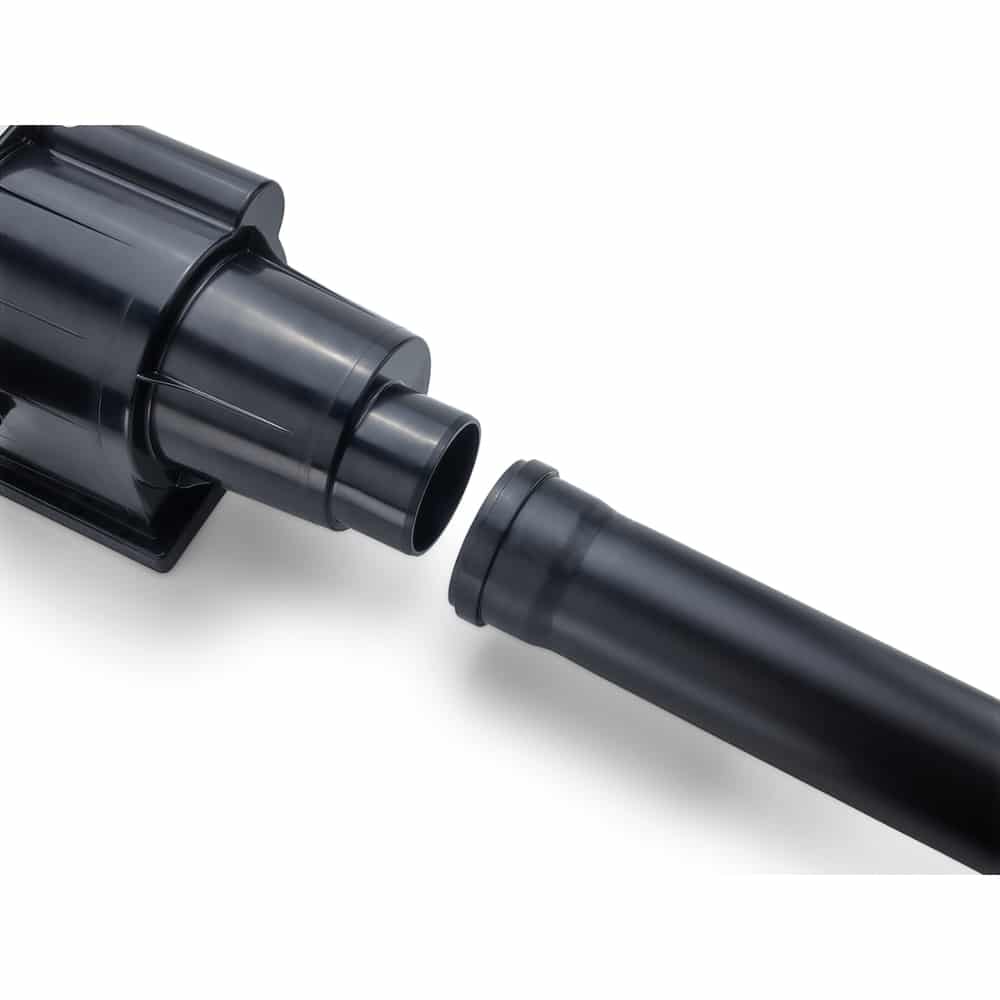

DN-110
Optimal water flow thanks to DN-110 connection.

Technical Data

Dimensions (L x W x H) mm 273 x 267 x 408
Net weight kg 2.80
Guarantee (+ request guarantee) Years 3 + 2
Possible water level difference 120 mm
Skimmer opening width mm 210
Pond surface, max. m² 30
Pump capacity, min. l/h 6000
Pump capacity, max. l/h 16000
Rec. flow rate (gravity-fed) l/h 12000
Outlet connections DN 110



For the best possible result, the wall-installation surface skimmer should be installed on the side of the pond that is away from the wind.

2 reviews for Oase ProfiSkim Wall 100

  1. Aaron C. (verified owner) –

    Great piece of kit

  2. Nicholas Grimmitt (verified owner) –

    Great product. Highly recommend

Only logged in customers who have purchased this product may leave a review.

Manual





ProfiSkim Wall 100.pdf

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 5 kg
Dimensions 40 × 40 × 40 cm
