Description

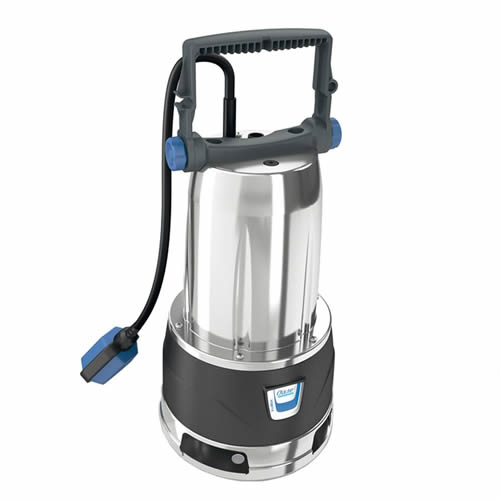

Oase Promax MudDrain 20000
The ProMax MudDrain 20000 submersible waste water pump reliably pumps contaminated water out of construction pits, shafts or basins and is designed as a valuable helper for precisely these challenging tasks. It is powerful and robust, ready for immediate use at any time and conveys contaminated water with dirt particles up to a diameter of 35mm and a maximum flow rate of 20,000 l / h. The ProMax MudDrain 20000 offers an ideal flow rate with low resistance thanks to the back pressure port 1 1/2 “. The robust materials and the stainless steel base make the ProMax MudDrain 20000 particularly stable. It is easy to connect and is supplied with a 90 degree bend and step nozzle. The float switch offers automatic switching on and off of the pump as a robust and reliable solution.
Characteristics:
- Robust and reliable: Automatic pump switch-on and switch-off through the float switch
- “A cool head” :: Optimal heat dissipation from the motor thanks to water cooling – ideal for a long pump life
- Solid: High-quality and robust stainless steel housing
- Versatile: adjustable handle
- For coarse debris: Pumps debris particles up to 35 mm in diameter
- Secure stance: Robust stainless steel base
- Well-protected: Ceramic-coated stainless steel shaft
- Optimal particle displacement: Pressure duct is positioned tangentially, appropriate for the water flow
- Powerful: Strong displacement
- Custom adjustment: Easy clip function allowing different float positions
TECHNICAL DATA
| Flow rate – Q max. | l/h | 20000 |
|---|---|---|
| Delivery head – H max. | m | 10.00 |
| Pressure – max. | bar | 1.0 |
| Power consumption | W | 950 |
| Power consumption | hp | 1.3 |
| Rated voltage | 230 V / 50 Hz | |
| Guarantee (+ request guarantee) | Years | 2 + 1 |
| Immersion depth max. | m | 7.00 |
| Grain size – max. | mm | 35 |
| Automatic function | Float switch | |
| Pressure-side connection | 1 ½” | |
| Power cable length | m | 10.00 |
| Protection class | IP X8 | |
| Net weight | kg | 8.10 |
| Dimensions (L x W x H) | mm | 200 x 254 x 440 |
