Home » Shop » Pond UV Lights » Oase Vitronic 18W

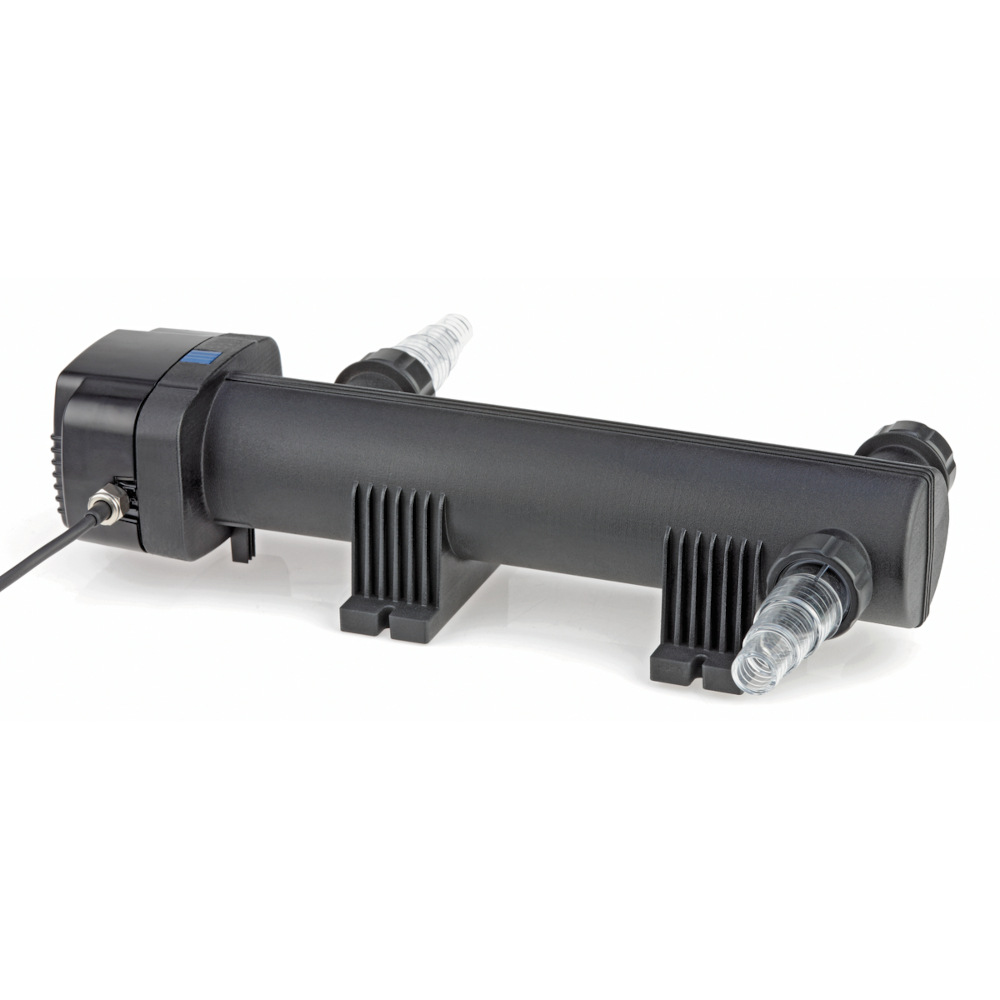

Oase Vitronic 18W
  • Oase Vitronic 18W
  • Oase Vitronic 18W 1

Oase Vitronic 18W

£115.49 inc. VAT

Oase Vitronic 18W

The OASE Vitronic UVC clarifier will even get rid of persistent of floating algae blooms in the pond water, even during the dreaded spring algae blooming season in April. Simply connect the clarifier between the pond pump and the pond filter. The power of the built-in UVC lamp destroys the cell structure of floating algae and thus effectively prevents growth. The visual function check lets you see if the UVC lamp is working. Can be combined with almost all commercially available filters.
Clear pond water is achieved by UVC radiation, which is highly effective against floating algae, bacteria and pathogens. The OASE Vitronic is the ideal entry into the world of UVC clarifiers up to 55 W. It reliably combats the algae pumped through the housing. Through the optical function control, you can always see if the UVC lamp is working. It can also be combined with almost all commercially available filters.

Features:

  • Clear pond water thanks to UVC radiation
  • Highly effective against floating algae, bacteria and germs
  • Can be combined with almost all commercially available filters
  • Clear pond water via UVC clarification
  • Highly effective against suspended algae, bacteria and germs
  • Can be combined with almost all off the shelf filters

Characteristics:

  • GREATER CLARITY: UVC radiation destroys the cell structure of floating algae and thus effectively prevents growth
  • THREE INPUTS: Individual options for attaching to a variety of OASE filter models (e.g. BioSmart), but also to filters from other manufacturers

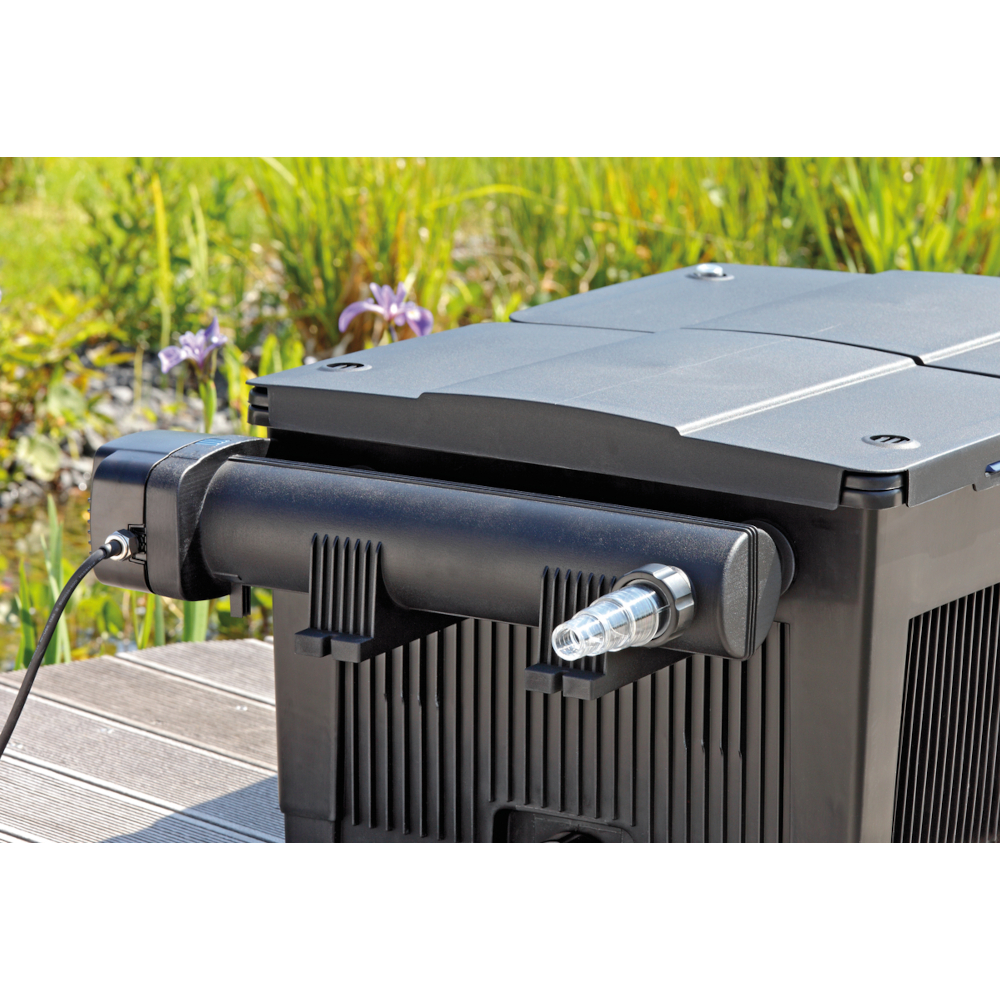

  • EASY INSTALLATION: Simply attach the clarifier to the connecting hose between the pond pump and the filter
SKU: 56837 Category:

Description

Oase Vitronic 18W

The OASE Vitronic UVC clarifier will even get rid of persistent of floating algae blooms in the pond water, even during the dreaded spring algae blooming season in April. Simply connect the clarifier between the pond pump and the pond filter. The power of the built-in UVC lamp destroys the cell structure of floating algae and thus effectively prevents growth. The visual function check lets you see if the UVC lamp is working. Can be combined with almost all commercially available filters.
Clear pond water is achieved by UVC radiation, which is highly effective against floating algae, bacteria and pathogens. The OASE Vitronic is the ideal entry into the world of UVC clarifiers up to 55 W. It reliably combats the algae pumped through the housing. Through the optical function control, you can always see if the UVC lamp is working. It can also be combined with almost all commercially available filters.

Features:

  • Clear pond water thanks to UVC radiation
  • Highly effective against floating algae, bacteria and germs
  • Can be combined with almost all commercially available filters
  • Clear pond water via UVC clarification
  • Highly effective against suspended algae, bacteria and germs
  • Can be combined with almost all off the shelf filters

Characteristics:

  • GREATER CLARITY: UVC radiation destroys the cell structure of floating algae and thus effectively prevents growth
  • THREE INPUTS: Individual options for attaching to a variety of OASE filter models (e.g. BioSmart), but also to filters from other manufacturers
  • EASY INSTALLATION: Simply attach the clarifier to the connecting hose between the pond pump and the filter

Technical Data:

Dimensions (L x W x H) mm 529 x 186 x 130
Rated voltage 220 – 240 V / 50/60 Hz
Power consumption W 18
Power cable length m 5.00
Net weight kg 2.12
Guarantee Years 2
UVC power W 18
Temperature display No
UVC operating hours meter No
Function check Visual
Number of inlets Units 1
Inlet connections mm 25 / 32 / 38
Inlet connections 1″, 1 ¼”, 1 ½”
Number of outlets Units 2
Connections, outlet mm 25 / 32 / 38
Outlet connections 1″, 1 ¼”, 1 ½”
Max. flow rate l/h 3500
Max. operating pressure bar 0.6
Suitable for ponds up to max. m3 20.0
Suitable for ponds with fish stock m3 10.0
Suitable for ponds with koi m3 5.0
Connection to BioSmart 18000/36000, BioTec ScreenMatic2 40 – 60000
