Spindrifter Aerated Bottom Drain
  • Spindrifter Aerated Bottom Drain

Spindrifter Aerated Bottom Drain

(8 customer reviews)

£168.99 – £258.99 inc. VAT

Spindrifter Aerated Bottom Drain

The Spindrifter aerated bottom drain is known worldwide for its quality and design. This Spindrifter aerated bottom drain completely replaces the “Standard Bottom Drain.”

The most noticeable feature of the Spindrifter bottom drain is the extra 1 inch DIA Pressure pipe connection in the sump of the drain. This allows the air supply hose to enter the sump independent of the water outlet pipe, thus eliminating the possibility of restriction to the water flow and somewhere else for blanket weed to attach.

The membrane and backing plate on the Spindrifter bottom drain fits into a recess in the specially manufactured dome (provided). The recess in the Spindrifter bottom drain prevents the membrane from becoming detached. The complete assembly is secured to the Spindrifter bottom drain by means of a stem, which also provides the air inlet. Most water pipe sizes can be accommodated, the customer to specify. The air inlet is via a nickel plated connector.

Available Sizes:

  • 4 inch Bottom Drain For Concrete comes with direct air feed kit
  • 3 inch Bottom Drain For Concrete comes with direct air feed kit
  • 2 inch Bottom Drain For Concrete

Recommended Air Flow:

  • Bottom Drain at around 4/5 feet deep requires a 40lpm Air pump.



These drains are currently not available please check out are range of drains  Here

Clear selection
SKU: N/A Category:

Description

Spindrifter Aerated Bottom Drain

The Spindrifter aerated bottom drain is known worldwide for its quality and design. This Spindrifter aerated bottom drain completely replaces the “Standard Bottom Drain.”

The most noticeable feature of the Spindrifter bottom drain is the extra 1 inch DIA Pressure pipe connection in the sump of the drain. This allows the air supply hose to enter the sump independent of the water outlet pipe, thus eliminating the possibility of restriction to the water flow and somewhere else for blanket weed to attach.

The membrane and backing plate on the Spindrifter bottom drain fits into a recess in the specially manufactured dome (provided). The recess in the Spindrifter bottom drain prevents the membrane from becoming detached. The complete assembly is secured to the Spindrifter bottom drain by means of a stem, which also provides the air inlet. Most water pipe sizes can be accommodated, the customer to specify. The air inlet is via a nickel plated connector.

Available Sizes:

  • 4 inch Bottom Drain For Concrete comes with direct air feed kit.  The Height is 195mm and the base is 250mm
  • 3 inch Bottom Drain For Concrete comes with direct air feed kit
  • 2 inch Bottom Drain For Concrete

Recommended Air Flow:

  • Bottom Drain at around 4/5 feet deep requires a 40lpm Air pump.

8 reviews for Spindrifter Aerated Bottom Drain

  1. Darren h. (verified owner) –

  2. Sam Mockridge (verified owner) –

    Great bit of kit.. highly recommend a bottom drain with the air stone built in , with some planning and great advice from the chaps at cotswold koi it was something I wish I did sooner

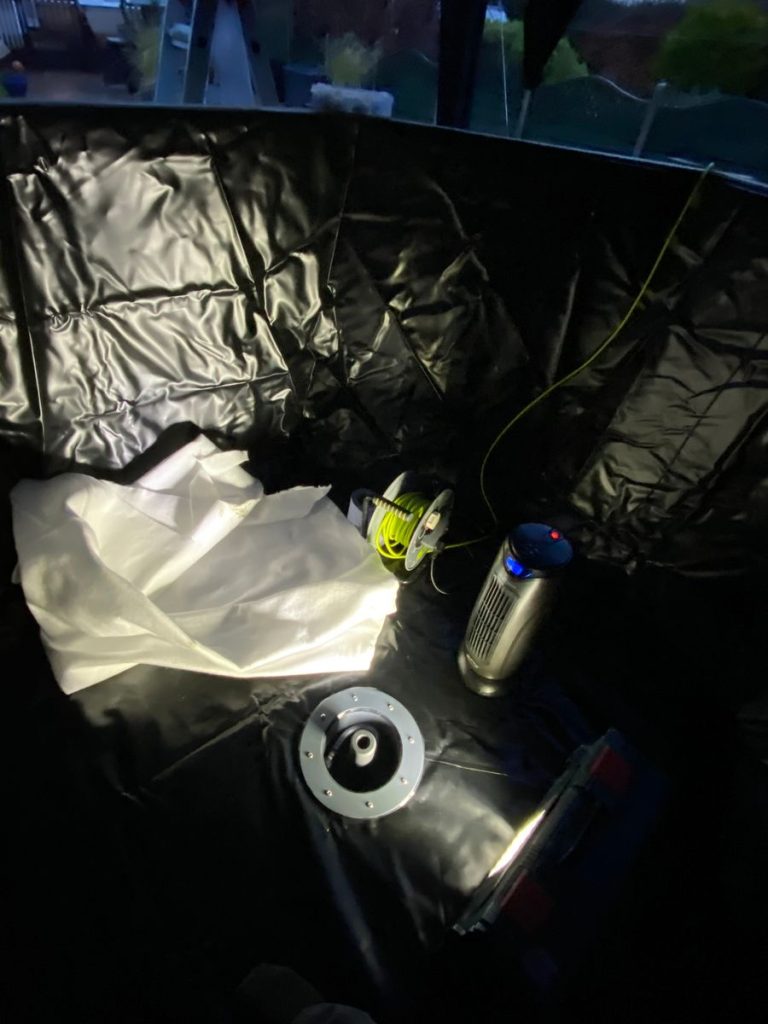

    Image #1 from Sam Mockridge

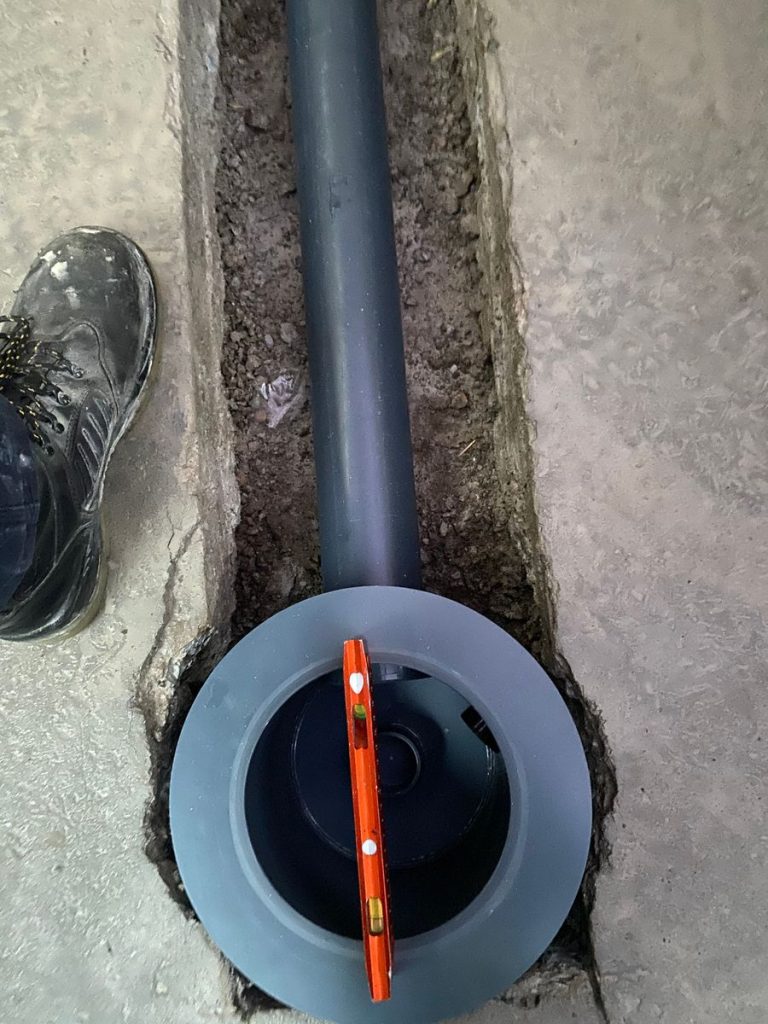

    Image #2 from Sam Mockridge
    Video #1 from Sam Mockridge

  3. Gary R. (verified owner) –

  4. Daniel (verified owner) –

  5. Nicole (verified owner) –

  6. Phillip D. (verified owner) –

    Top class product I had installed the spindrift on my previous koi pond had had no problems for 20 years

  7. Sam Grandison (verified owner) –

  8. Nicholas Grimmitt (verified owner) –

    Does the job superbly

Only logged in customers who have purchased this product may leave a review.

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Additional information

Weight 0.47 kg
Dimensions N/A
size

4" for Concrete, 3" for Concrete, 2" for Concrete
