Submersible TITANIUM Heat Exchangers

Stainless Steel Heat Exchangers

A Stainless Steel Heat Exchanger is the most cost effective method of controlling the water temperature of Ponds.

Using a Stainless Steel Heat Exchanger provides a method of heating water by simply pumping the water, on it’s return to the pond in much the same you would connect a UV Steriliser

Water enters through the Inlet Pipe and then circulates past an inner Stainless Steel Coil. The coil contains hot water from the boiler. The heat from the ‘Hot Water’ in the inner coil never makes contact with the actual pond water but the heat generated from it is then transferred to the water flowing round it by radiation providing heat to your pond.

All Our Heat Exchangers are made from the finest quality 316 Stainless Steel and have a superb finish.

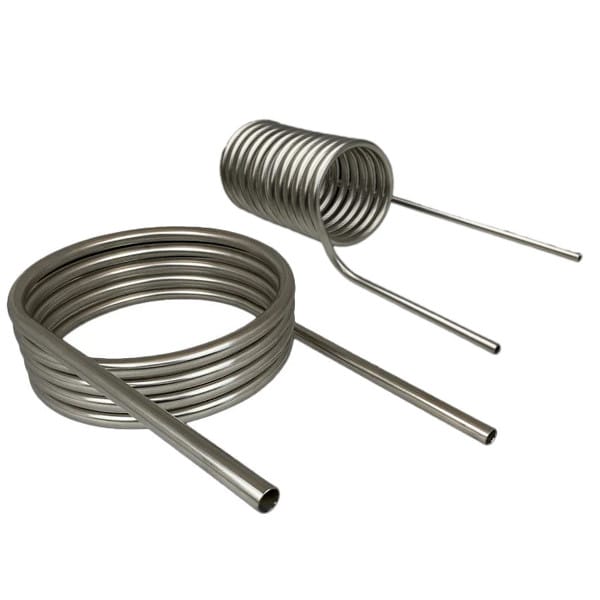

Submersible Stainless Steel Heat Exchangers

The heat exchangers are designed for full immersion in water. In addition to stainless steel heat exchangers. The heat exchangers are available in 2 models: for a heat transfer of approximately 15 kW and 30 kW respectively (with a temperature difference of approximately 50°C).

Stainless Steel Heat Coils: Freshwater Applications

• designed for immersion: these coils are made to be fully submerged in water for excellent heat transfer without unnecessary resistance
• easy installation: simply connect them to the home boiler, district heating, heat pump, or solar collectors
• efficient in use: complete heat transfer to the water without any loss of pump capacity

Sizes and Details:

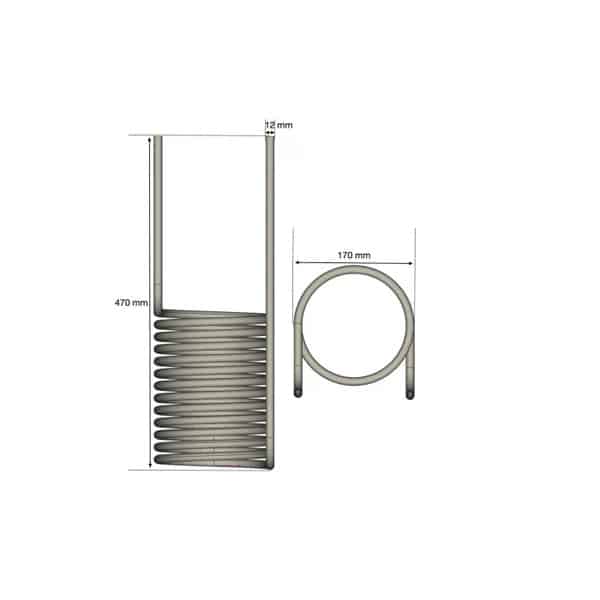

15kw  coil 12mm

size                           170mm Width  total length 470mm

Material                    aisi 316 gr. stainless steel

weight kg                  1.6kg

30kw coil 22mm

size                         370mm Width total length 590mm

Material                    aisi 316 gr. stainless steel

weight kg                  3.4kg

Elecro G2 Titanium Heat Exchangers

Elecro Multi-Tubular heat exchangers are comprised of a 38-piece Titanium tube bundle, giving a vast surface contact area for the two water circuits.

The primary circuit chamber – through which water from the heating source travels, is very narrow ensuring heat is absorbed and replaced with Hot water quickly.

These strategic design features enable the Elecro heat exchangers to perform very efficiently even when working with low value Primary temperatures, such as Solar heating systems.

The rigid aluminium jacket encapsulating a pocket of air, thermally insulates the entire unit ensuring that heat is transferred within the desired chamber and absorbed by the swimming pool water, rather than lost to the atmosphere.

Titanium Tube Bundles make the Elecro Heat Exchangers ideal for use on Salt Chlorinated pools.
