Thermotec Neo Inverter 7KW Heat Pump

Description

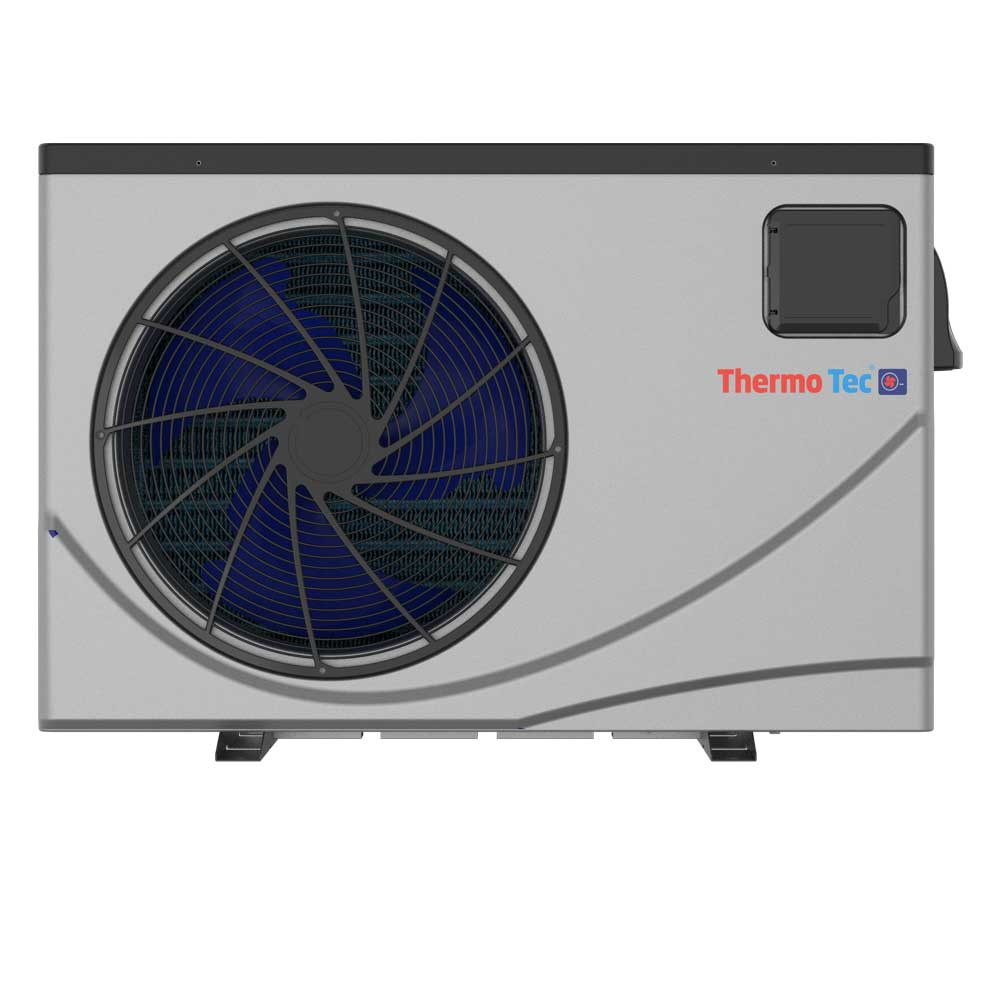

Thermotec Neo Inverter 7KW Heat Pump

The Thermotec Neo Inverter range are fully inverter driven. This means that they automatically adjust the speed of the fan and compressor to precisely match the heat demand from the pool.

The ability to adjust the output of the pool heat pump allows the Thermotec Neo Inverter to deliver greatly reduced running costs with COPs of up to 10. This means that for every 1kw of electricity used by the heat pump, 10kw of heat is delivered to the pool. This delivers reduced running costs compared with other heat pumps on the market

In addition the inverter technology has a reduced electrical start-up requirement, making them ideal for properties with a sensitive or limited electrical supply.

Features:

• Fully inverter driven with variable speed fan and compressor to deliver the lowest running costs with maximum heat output
• High efficiency with COPs of up to 10. This means that for every 1kw of electricity used by the heat pump, up to 10kw of heat is returned to the pool.
• Equipped with an easy to use black and white touch screen display / control panel.
• Brushless variable speed DC fan motor – very efficient with extremely quiet operation
• Control panel is lockable to prevent tampering with the pool set temperature (useful for rented properties)
• Eight different models: 5kw, 7kw, 9kw, 11.5kw, 13.2kw 15.5kw, 18.4kw, 24kw
• All models use single phase power (i.e. 220v to 240v)
• Can provide heating and cooling of pool water
• Recommend for for pools, swim spas, hot tubs for extended season use (i.e. April-October)
• Soft start with reduced electrical start up requirements for properties with sensitive or limited power supplies
• Low noise, variable speed fan.
• Corrosion resistant case
• Microprocessor controlled
• Automatic hot gas defrosting.
• Built in timer and clock
• Set Temperatures for this model are from 10-43 degrees
• Silent mode
• Titanium heat exchanger – resistant to corrosion from chlorine or salt pools.
• Operates in air temperatures as low as -7 °C.
• 2-Year parts and labour warranty

Thermotec Neo Inverter Heat Pump Swimming pool Guide:

Thermotec Neo Inverter Heat Pump Koi Pond Guide:

(Note: This assumes that the pond is covered in winter and that a temperature of +12c is to be maintained over winter)

Note: If the Thermotec Neo heat pumps are used on a koi pond over winter then an electric backup heater should be installed to provide additional heat in cold weather

COP And Performance:

By using the latest inverter technology, the Thermotec Neo Inverter can out-perform traditional on/off type heat pumps as well as many other inverter driven models.

Even as the outside air temperature falls, the Thermotec Neo Inverter will still perform well, delivering heat to your pool.

The Thermotec Neo Inverter heat pumps can work well with outside air temperatures as low as -7c

The COP (Coefficient of Performance) is the ratio of the amount of heat (in kw) that the heat pump delivers to your pool compared to the electricity that the heat pump uses (in kw)

By using the latest inverter technology, the Thermotec Inverter has COPs up to 10. This means that in these conditions, 1kw of electricity consumed by the heat pump will output up to 10kw of heat to your pool

The Thermotec Neo Inverter display will show:

• The current pool water temperature
• The mode (e.g. heating or cooling)
• Clock/time
• If the timer function has been set
• If the fan is operating
• The current time and date
• The outside ambient temperature
• If there is a fault, a fault code is displayed to explain the problem
• There is a protective flap over the display to protect it from the weather and UV rays from the sun
• Inlet water temperature
• Outlet water temperature

 Thermotec Neo Inverter Heat Pumps Electrical Requirements:

The Thermotec Neo Inverter horizontal range of heat pumps come with:-

• 2 x Water connection unions (with 50mm glue socket outlets – 1.5″ adaptor bushes available as an option)
• 4 x Rubber mounting feet (heavy duty mounting blocks available as an option – see below)

The Thermotec Neo Inverter heat pumps come with a 2-year warranty on all components and 5-year warranty on the compressor and heat exchanger:-

• 2-year parts and labour warranty on all components
• 5-year warranty on the compressor and heat exchanger
• Europe and Outside the UK: Warranty is parts only warranty or return to us in the UK (customer pays transport cost). If spare parts are required, they will be sent free of charge to a UK address. If they are to be shipped outside the UK, the customer pays the international shipping cost
