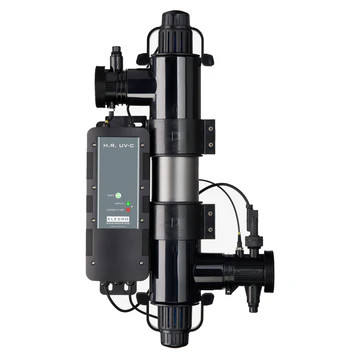

Elecro Mini (30 Watt UVC) HR – Highly Reflective UV Unit (With lamp & Flow Indicator)

Oase Bitron C 36 Watt UVC

The UVC clarifier OASE Bitron C 36 W removes floating algae and reduces harmful bacteria for healthy and clear water. An automatic cleaning system ensures fully effective UVC radiation at all times. A control window provides additional functional reliability. Eye protection guaranteed by 100%, VDE-tested safety. With a power consumption of 36 watts, 4,500 l / h can flow past the UVC tube without a bypass. The flow can be individually adjusted and regulated. The OASE Bitron C 36 W UVC clarifier is available complete with a universal stepped hose nozzle from ¾ “(19 mm) to 2” (51 mm). The cable is 5 m long. A flow nozzle optimizes the flow to the cleaning rotor. The nominal voltage is 230 V / 50 Hz. Optimal for connection to BioSmart 18000/36000 and BioTec Screenmatic 12-18.

• Clever bypass system combines high flow rates with duration of radiation
• Permanent self-cleaning thanks to patented cleaning rotor
• Highly effective against suspended algae, bacteria and germs

T5 Submersible 40W UVC

Submersible UV-C lamps have a big advantage compared to conventional UV-C units: no pressure loss.

Benefits

• These lamps can be used in filter tanks so the water can pass without any resistance/ pressure loss.
• The plastic end of the lamp has a 32mm diameter so you can use 32mm pipe clips to mount the lamp in a tank.
• A special tank connector is available for direct installation in i.e. filters.
  Note:
• This product is only intended for professional use.
• It should be installed in a professional application or assembled with other appliances.
• Before using this product the installer/user must take care the product complies to the latest European standards for UV-C units.
• 40W Immersion UV-C
• Quartz sleeve length – 705mm
• Ballast IP Rating – IP65

Yamitsu Algae Master Pond UV Clarifier 25W

Yamitsu algae master uv’s are made from UV stabilised materials to ensure a longer life and incorporate turbulators to enhance the unit’s performance. Large inlet and exhaust ports make the algae master uv suitable for a wide range of pond uv applications. It is recommended that the algae master uv should be installed using solid solvent weld pipe.

However, all algae master uv’s come complete with free (glue in) hosetails enabling them to be connected to ½”, ¾”, 1″, 1¼” and 1½” flexible pipe. Algae master uv’s will also fit most popular 1½” household solvent weld waste and pressure pipes.

Yamitsu Algae Master Pond UV Clarifier 25w Installation

If you have a severe algae problem you should effect a partial water change before starting the installation. Yamitsu Algae Master Pond UV can be added to any existing filtration system. For best results algae master units should be fitted in line, after the pump, with water being forced through them. Use the largest size of pipe possible. If hosetails are to be used, it is very important that they are trimmed to the largest possible size that will fit inside the flexible pipe (before glueing in place). This will ensure that the maximum flow rate can be obtained for the size of pipe.

Yamitsu Algae Master UV Maintenance

Although maintenance is minimal all UV lamps need replacing at six monthly intervals. The algae master’s uv lamp may be illuminated and appear to be working but the radiation dosage diminishes with age and is ineffective after six months. Dispose of used uv lamps sensibly. Even exhausted uv lamps should NEVER be looked at directly when illuminated.

As the algae master uv is dependant upon water passing through it, it is important to ensure that any pump strainers, pre-filters or delivery pipes are not blocked or are causing the flow to be restricted.
