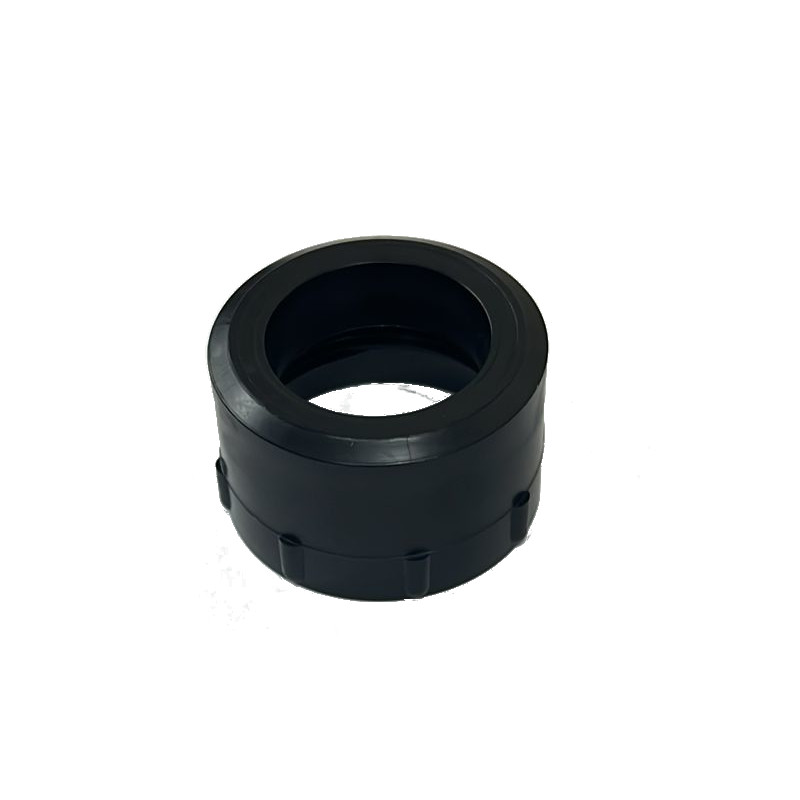

Yamitsu UV Locking Nut

Yamitsu Quartz Sleeves

For those Koi and pond enthusiasts who are not as careful at they might be, we do also sell the spare Yamitsu Quartz Sleeves in the most standard sizes.

The Yamitsu Quartz Sleeve insulates the lamp from the water, allowing the lamp to operate at the optimum performance.

The ultraviolet lamp will remain independent of the flow of water. Yamitsu Quartz Sleeves are of open-ended construction and are made from pure fused quartz.

Quartz is extremely transparent over a wide spectral range, with a low coefficient of thermal expansion and quartz is resistant to scratching and thermal shock. Fused quartz is made from crushing and melting natural materials. The purity of quartz is paramount to the efficiency of the lamp and sleeve.

Yamitsu Quartz Sleeve Benefits:

• Greater ultraviolet transmission
• Low coefficient of thermal expansion
• Increased hardness and resistance to scratching
• Higher resistance to solarisation or darkening from ultraviolet radiation

Yamitsu Quartz Sleeve Dimensions:

15w/25w

• Overall length 430mm
• External diameter 30mm
• Internal diameter 27mm

30w/55w

• Overall length 890mm
• External diameter 30mm
• Internal diameter 27mm

Quartz sleeves are available for the Yamitsu Algae Master Pond UV Clarifier 6, 8, 11, 15-, 25-, 30- and 55-watt units.
